| Manufacturer | Analog Devices |
| Description | Voltage-to-Frequency and Frequency-to-Voltage Converter |
| Pages / Page | 21 / 5 — AD650. Data Sheet. AD650J/AD650A. AD650K/AD650B. AD650S. Model. Min. Typ. … |
| Revision | E |
| File Format / Size | PDF / 454 Kb |
| Document Language | English |

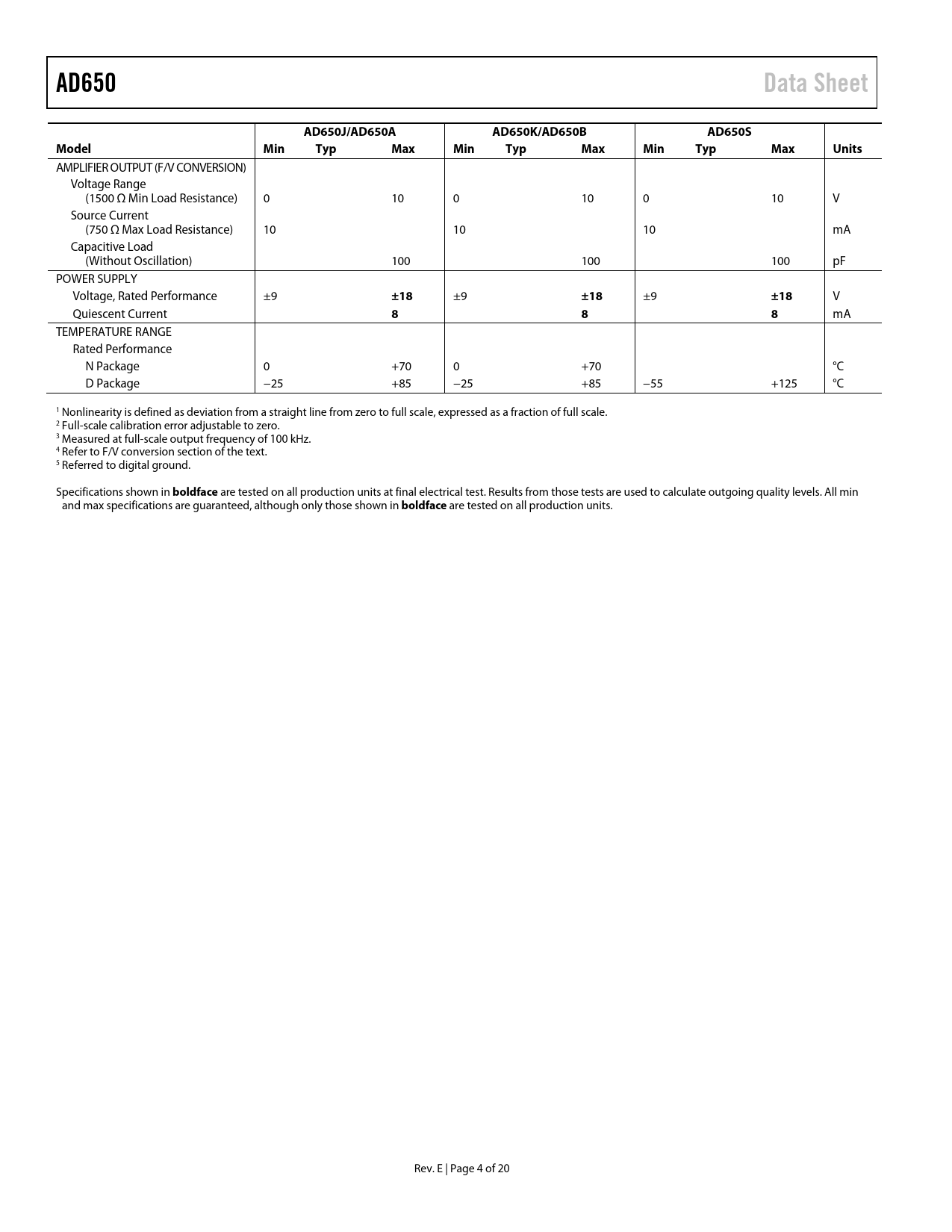

AD650. Data Sheet. AD650J/AD650A. AD650K/AD650B. AD650S. Model. Min. Typ. Max. Units. ±18. boldface
Model Line for this Datasheet
Text Version of Document
AD650 Data Sheet AD650J/AD650A AD650K/AD650B AD650S Model Min Typ Max Min Typ Max Min Typ Max Units
AMPLIFIER OUTPUT (F/V CONVERSION) Voltage Range (1500 Ω Min Load Resistance) 0 10 0 10 0 10 V Source Current (750 Ω Max Load Resistance) 10 10 10 mA Capacitive Load (Without Oscillation) 100 100 100 pF POWER SUPPLY Voltage, Rated Performance ±9
±18
±9
±18
±9
±18
V Quiescent Current
8 8 8
mA TEMPERATURE RANGE Rated Performance N Package 0 +70 0 +70 °C D Package −25 +85 −25 +85 −55 +125 °C 1 Nonlinearity is defined as deviation from a straight line from zero to ful scale, expressed as a fraction of full scale. 2 Full-scale calibration error adjustable to zero. 3 Measured at full-scale output frequency of 100 kHz. 4 Refer to F/V conversion section of the text. 5 Referred to digital ground. Specifications shown in
boldface
are tested on al production units at final electrical test. Results from those tests are used to calculate outgoing quality levels. All min and max specifications are guaranteed, although only those shown in
boldface
