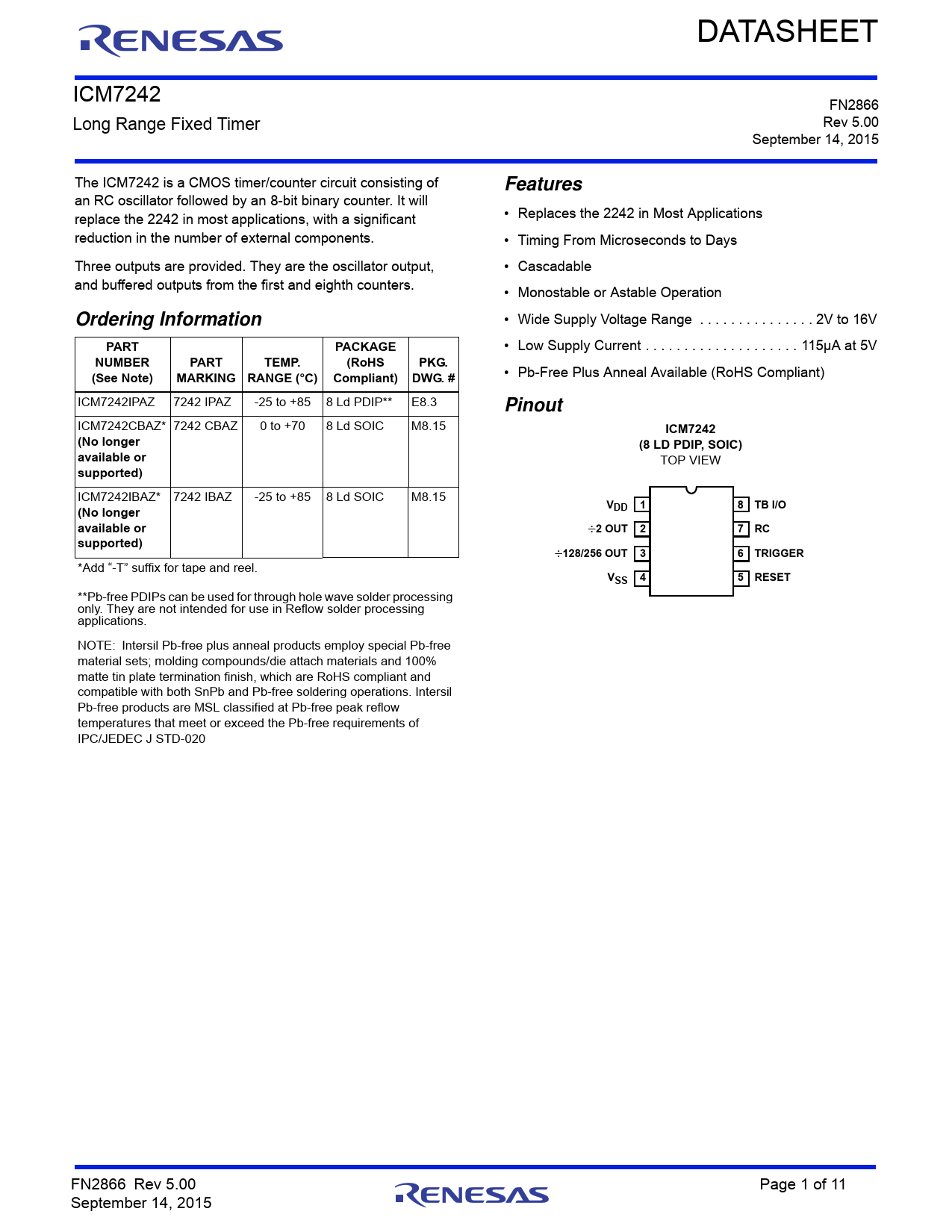

DATASHEET ICM7242 FN2866 Long Range Fixed Timer Rev 5.00 September 14, 2015 The ICM7242 is a CMOS timer/counter circuit consisting of
Features
an RC oscillator followed by an 8-bit binary counter. It will replace the 2242 in most applications, with a significant • Replaces the 2242 in Most Applications reduction in the number of external components. • Timing From Microseconds to Days Three outputs are provided. They are the oscillator output, • Cascadable and buffered outputs from the first and eighth counters. • Monostable or Astable Operation
Ordering Information
• Wide Supply Voltage Range . 2V to 16V
PART PACKAGE
• Low Supply Current . 115µA at 5V
NUMBER PART TEMP. (RoHS PKG.
• Pb-Free Plus Anneal Available (RoHS Compliant)
(See Note) MARKING RANGE (°C) Compliant) DWG. #
ICM7242IPAZ 7242 IPAZ -25 to +85 8 Ld PDIP** E8.3
Pinout
ICM7242CBAZ* 7242 CBAZ 0 to +70 8 Ld SOIC M8.15
ICM7242 (No longer (8 LD PDIP, SOIC) available or
TOP VIEW
supported)
ICM7242IBAZ* 7242 IBAZ -25 to +85 8 Ld SOIC M8.15
V 1 8 TB I/O (No longer DD available or
2 OUT 2 7 RC supported)
128/256 OUT 3 6 TRIGGER
*Add “-T” suffix for tape and reel.
VSS 4 5 RESET
**Pb-free PDIPs can be used for through hole wave solder processing only. They are not intended for use in Reflow solder processing applications. NOTE: Intersil Pb-free plus anneal products employ special Pb-free material sets; molding compounds/die attach materials and 100% matte tin plate termination finish, which are RoHS compliant and compatible with both SnPb and Pb-free soldering operations. Intersil Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020 FN2866 Rev 5.00 Page 1 of 11 September 14, 2015
