Datasheet ADIS16334 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | Low Profile, Six Degrees of Freedom Inertial Sensor |
| Pages / Page | 21 / 7 — ADIS16334. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. … |
| Revision | D |
| File Format / Size | PDF / 496 Kb |
| Document Language | English |

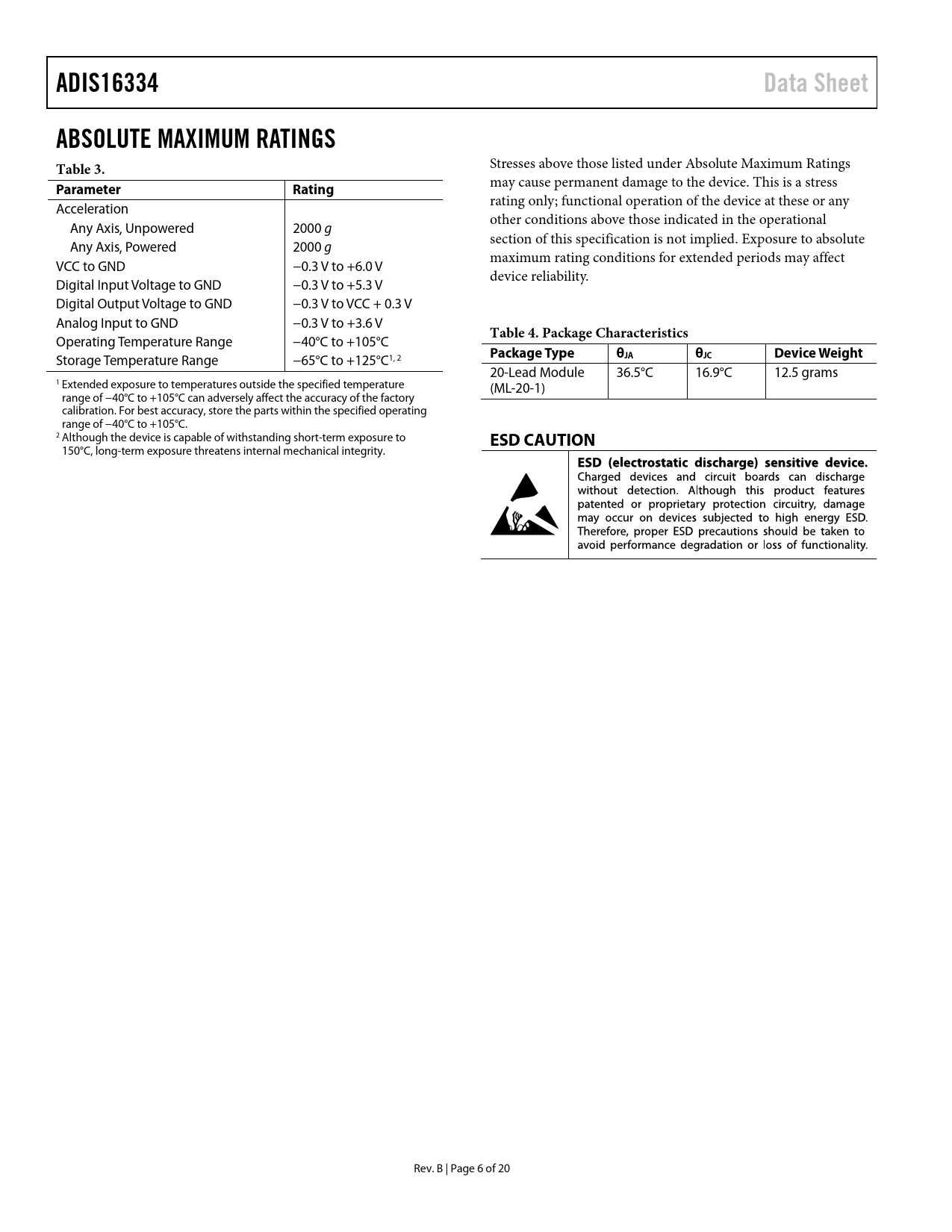

ADIS16334. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. Table 4. Package Characteristics. Package Type. θJC
Model Line for this Datasheet
Text Version of Document
link to page 7
ADIS16334 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Acceleration rating only; functional operation of the device at these or any other conditions above those indicated in the operational Any Axis, Unpowered 2000 g section of this specification is not implied. Exposure to absolute Any Axis, Powered 2000 g maximum rating conditions for extended periods may affect VCC to GND −0.3 V to +6.0 V device reliability. Digital Input Voltage to GND −0.3 V to +5.3 V Digital Output Voltage to GND −0.3 V to VCC + 0.3 V Analog Input to GND −0.3 V to +3.6 V
Table 4. Package Characteristics
Operating Temperature Range −40°C to +105°C
Package Type θ
Storage Temperature Range −65°C to +125°C1, 2
JA θJC Device Weight
20-Lead Module 36.5°C 16.9°C 12.5 grams 1 Extended exposure to temperatures outside the specified temperature (ML-20-1) range of −40°C to +105°C can adversely affect the accuracy of the factory calibration. For best accuracy, store the parts within the specified operating range of −40°C to +105°C. 2 Although the device is capable of withstanding short-term exposure to
ESD CAUTION
150°C, long-term exposure threatens internal mechanical integrity. Rev. B | Page 6 of 20 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Timing Specifications Timing Diagrams Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Gyroscopes Accelerometers Data Sampling and Processing Calibration User Interface SPI Interface Basic Operation Reading Sensor Data Burst Read Function Memory Map Output Data Registers Gyroscopes Accelerometers Internal Temperature Measurements Device Configuration Dual Memory Structure Digital Processing Configuration Sample Rate Input Clock Configuration Digital Filtering Dynamic Range Optimizing Accuracy Automatic Bias Correction Manual Bias Correction Restoring Factory Calibration Point-of-Percussion/Linear-g Compensation System Tools Global Commands General-Purpose I/O Data Ready I/O Indicator Self-Test Memory Test Status Device Identification Flash Memory Management Alarms Static Alarm Use Dynamic Alarm Use Alarm Reporting Alarm Example Applications Information ADIS16334/PCBZ Installation Mounting Approaches Outline Dimensions Ordering Guide
