ADXRS290. Data Sheet. ABSOLUTE MAXIMUM RATINGS. PACKAGE INFORMATION. Table 2. Parameter Rating

ADXRS290 Data Sheet ABSOLUTE MAXIMUM RATINGS PACKAGE INFORMATION Table 2 Parameter Rating

Model Line for this Datasheet

Text Version of Document

link to page 5 link to page 5 link to page 5 link to page 20
ADXRS290 Data Sheet ABSOLUTE MAXIMUM RATINGS PACKAGE INFORMATION Table 2.
The information in Figure 2 and Table 3 provide details about
Parameter Rating
the package branding for the ADXRS290. For a complete listing Acceleration (Any Axis, Unpowered, 0.5 ms) 2000 g of product availability, see the Ordering Guide section. Acceleration (Any Axis, Powered, 0.5 ms) 2000 g VS, VDD I/O 2.7 V to 5.25 V
Table 3. Package Branding Information
All Other Pins 2.7 V to 5.25 V
Branding Key Field Description
Output Short-Circuit Duration (Any Pin to Indefinite XR290 Part identifier for ADXRS290 Common) #yyyy Date code Operating Temperature Range –40°C to +105°C ●XXXXXX Pin 1 and factory lot code identifiers Storage Temperature Range –40°C to +105°C Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
ESD CAUTION
stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability.
RATE SENSITIVE AXES
The ADXRS290 is an x-axis and y-axis rate sensing device that is also called a roll and pitch rate sensing device. It produces a positive output voltage for clockwise rotation about the x-axis and y-axis, as shown in Figure 2.
ΩX ΩY

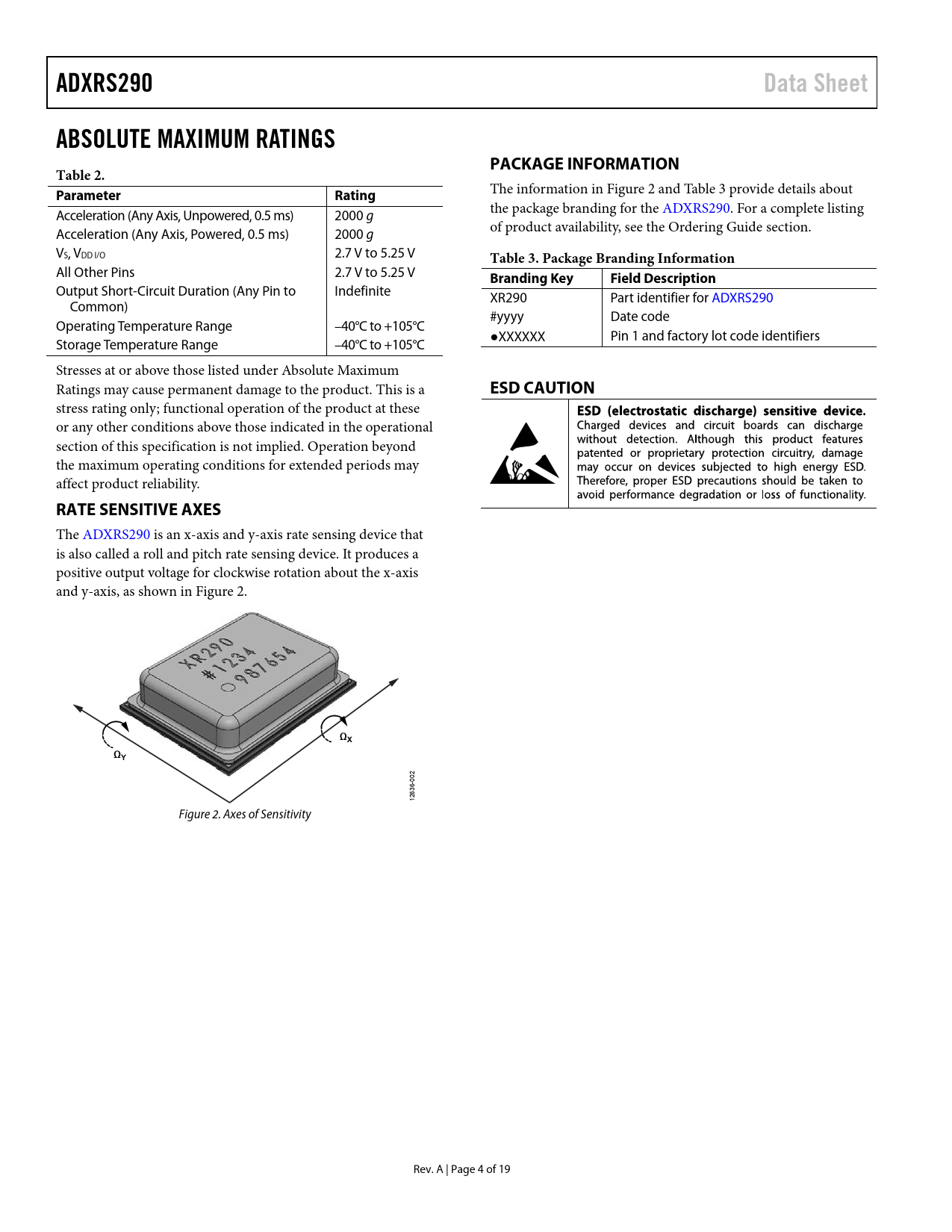

002 6- 1263 Figure 2. Axes of Sensitivity Rev. A | Page 4 of 19 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS RATE SENSITIVE AXES PACKAGE INFORMATION ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION APPLICATION CIRCUIT POWER SUPPLY DECOUPLING POWER SEQUENCING SETTING BANDWIDTH Offset Preservation in the High-Pass Filter ANALOG EVALUATION MODE MECHANICAL CONSIDERATIONS FOR MOUNTING SERIAL COMMUNICATIONS REGISTER MAP REGISTER DESCRIPTIONS ANALOG DEVICES IDENTIFIER MEMS IDENTIFIER DEVICE IDENTIFIER SILICON REVISION NUMBER SERIAL NUMBER (SNx) RATE OUTPUT DATA Register 0x08 to Register 0x0B: DATAX0, DATAX1, DATAY0, and DATAY1 (Read Only) TEMPERATURE DATA Register 0x0C to Register 0x0D: TEMP0 and TEMP1 (Read Only) POWER CONTROL TSM Bit Measurement Bit BAND-PASS FILTER LPF Bits HPF Bits DATA READY Sync Bits RECOMMENDED SOLDERING PROFILE PCB FOOTPRINT PATTERN OUTLINE DIMENSIONS ORDERING GUIDE
