Datasheet ADA4841-2KGD (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | Low Power, Low Noise and Distortion, Rail-to-Rail Output Amplifier |
| Pages / Page | 9 / 7 — Known Good Die. ADA4841-2KGD. PIN CONFIGURATION AND FUNCTION … |
| Revision | A |
| File Format / Size | PDF / 164 Kb |
| Document Language | English |
Known Good Die. ADA4841-2KGD. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. OUT1. +VS. OUT2. –IN1. TOP VIEW. (Not to Scale). +IN1. –IN2. +IN2
Model Line for this Datasheet
Text Version of Document
Known Good Die ADA4841-2KGD PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUT1 +VS OUT2 1A 1B 8A 8B 7 2 –IN1 ADA4841-2KGD TOP VIEW (Not to Scale) +IN1 3 6 –IN2 4A 4B 5 +IN2
003 0-
–VS

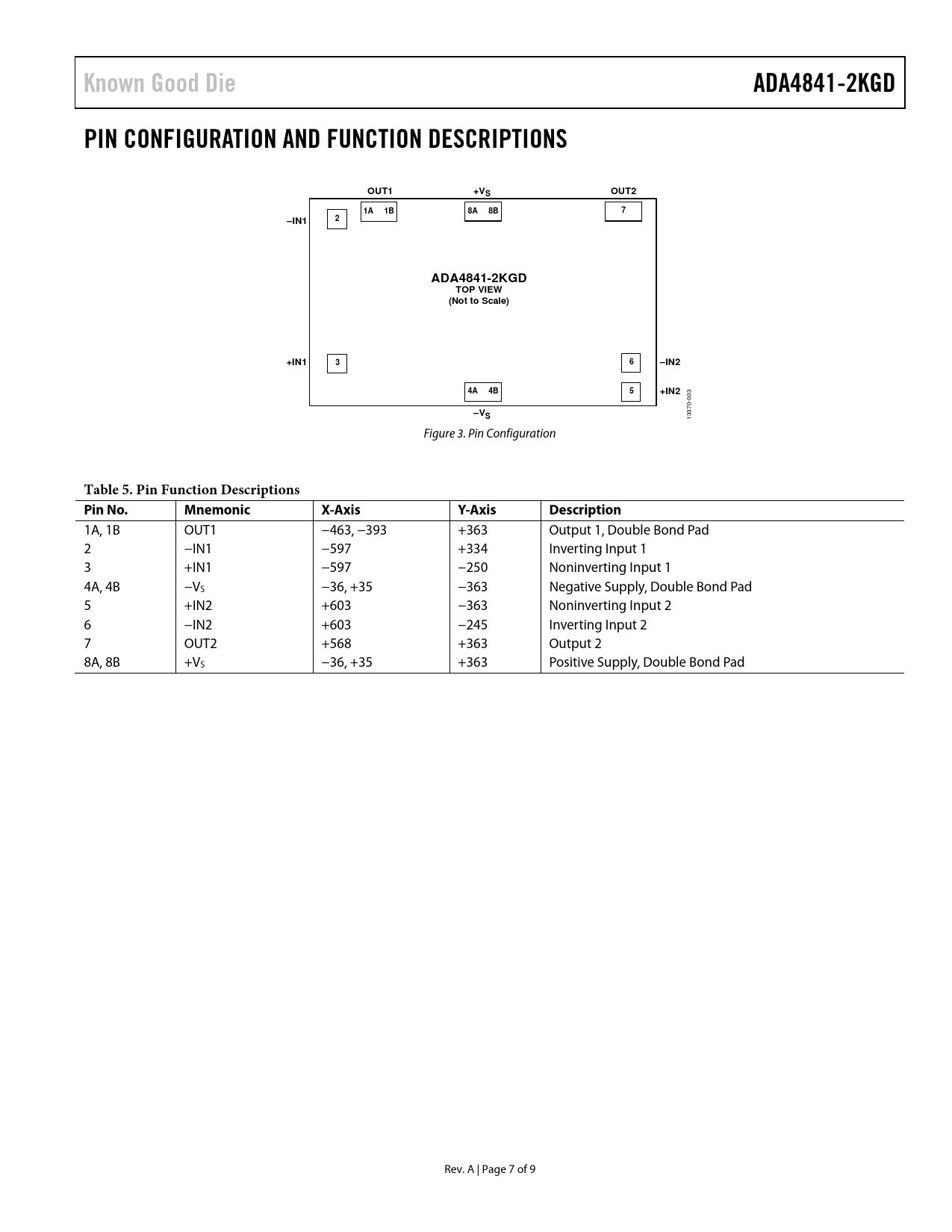

1337 Figure 3. Pin Configuration
Table 5. Pin Function Descriptions Pin No. Mnemonic X-Axis Y-Axis Description
1A, 1B OUT1 −463, −393 +363 Output 1, Double Bond Pad 2 −IN1 −597 +334 Inverting Input 1 3 +IN1 −597 −250 Noninverting Input 1 4A, 4B −VS −36, +35 −363 Negative Supply, Double Bond Pad 5 +IN2 +603 −363 Noninverting Input 2 6 −IN2 +603 −245 Inverting Input 2 7 OUT2 +568 +363 Output 2 8A, 8B +VS −36, +35 +363 Positive Supply, Double Bond Pad Rev. A | Page 7 of 9 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V SUPPLY 5 V SUPPLY 3 V SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
