Datasheet AD8643 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Low Power, Rail-to-Rail Output, Precision JFET Quad Amplifier |
| Pages / Page | 8 / 6 — NOTES. DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/12653 |
| File Format / Size | PDF / 178 Kb |
| Document Language | English |
NOTES. DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/12653
Model Line for this Datasheet
Text Version of Document

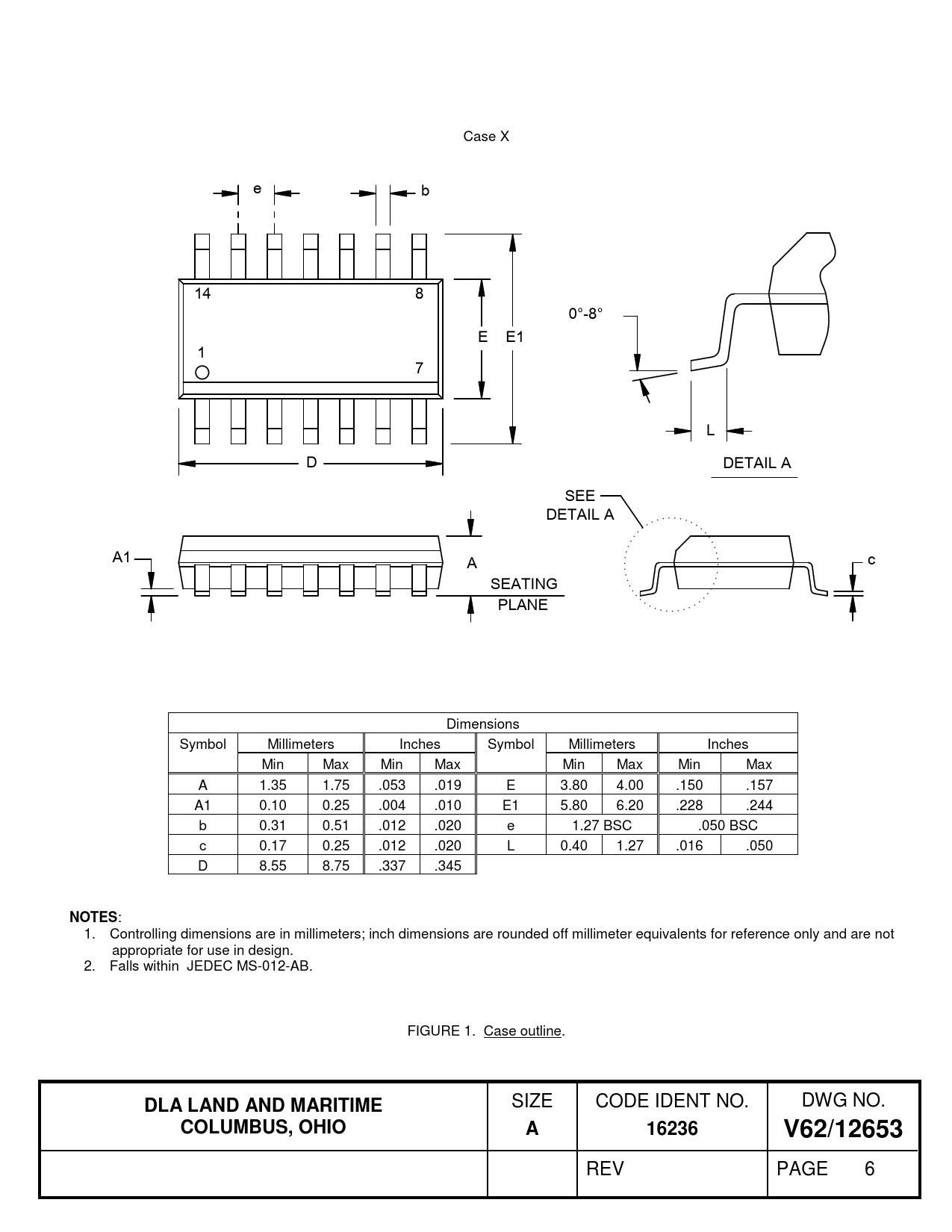

Case X e b 14 8 0°-8° E E1 1 7 L D DETAIL A SEE DETAIL A A1 A c SEATING PLANE Dimensions Symbol Millimeters Inches Symbol Millimeters Inches Min Max Min Max Min Max Min Max A 1.35 1.75 .053 .019 E 3.80 4.00 .150 .157 A1 0.10 0.25 .004 .010 E1 5.80 6.20 .228 .244 b 0.31 0.51 .012 .020 e 1.27 BSC .050 BSC c 0.17 0.25 .012 .020 L 0.40 1.27 .016 .050 D 8.55 8.75 .337 .345
NOTES
: 1. Controlling dimensions are in millimeters; inch dimensions are rounded off millimeter equivalents for reference only and are not appropriate for use in design. 2. Falls within JEDEC MS-012-AB. FIGURE 1. Case outline.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/12653
REV PAGE 6 Document Outline DESCRIPTION REV REV PMIC N/A TITLE SIZE A V62/12653 REV
