| Manufacturer | Analog Devices |
| Description | Zero-Drift, Single-Supply, Rail-to-Rail Input/Output Operational Amplifier |
| Pages / Page | 8 / 3 — Data Sheet. AD8629-EP. SPECIFICATIONS ELECTRICAL CHARACTERISTICS—VS = 5.0 … |
| File Format / Size | PDF / 249 Kb |
| Document Language | English |

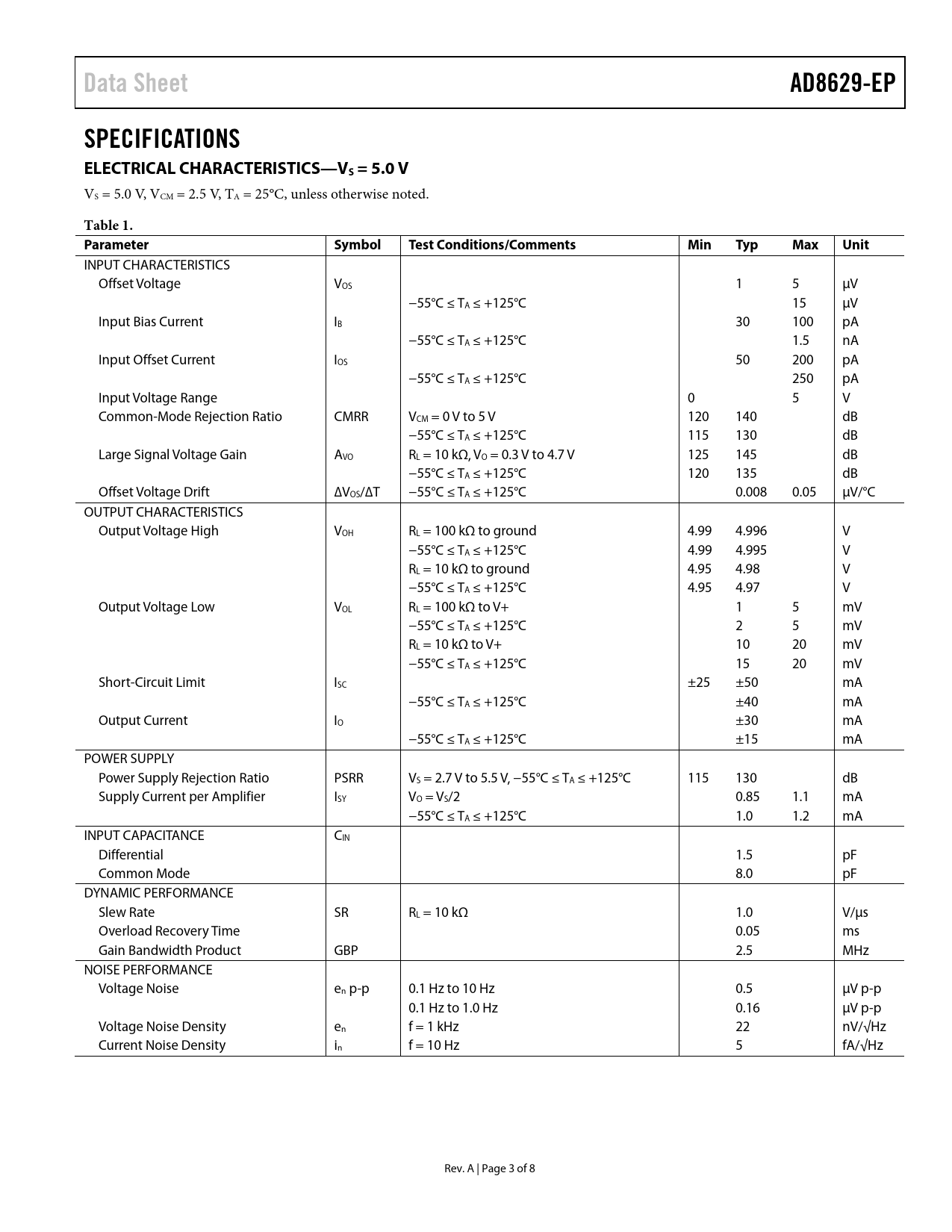

Data Sheet. AD8629-EP. SPECIFICATIONS ELECTRICAL CHARACTERISTICS—VS = 5.0 V. Table 1. Parameter. Symbol. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
Data Sheet AD8629-EP SPECIFICATIONS ELECTRICAL CHARACTERISTICS—VS = 5.0 V
VS = 5.0 V, VCM = 2.5 V, TA = 25°C, unless otherwise noted.
Table 1. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS 1 5 µV −55°C ≤ TA ≤ +125°C 15 µV Input Bias Current IB 30 100 pA −55°C ≤ TA ≤ +125°C 1.5 nA Input Offset Current IOS 50 200 pA −55°C ≤ TA ≤ +125°C 250 pA Input Voltage Range 0 5 V Common-Mode Rejection Ratio CMRR VCM = 0 V to 5 V 120 140 dB −55°C ≤ TA ≤ +125°C 115 130 dB Large Signal Voltage Gain AVO RL = 10 kΩ, VO = 0.3 V to 4.7 V 125 145 dB −55°C ≤ TA ≤ +125°C 120 135 dB Offset Voltage Drift ∆VOS/∆T −55°C ≤ TA ≤ +125°C 0.008 0.05 µV/°C OUTPUT CHARACTERISTICS Output Voltage High VOH RL = 100 kΩ to ground 4.99 4.996 V −55°C ≤ TA ≤ +125°C 4.99 4.995 V RL = 10 kΩ to ground 4.95 4.98 V −55°C ≤ TA ≤ +125°C 4.95 4.97 V Output Voltage Low VOL RL = 100 kΩ to V+ 1 5 mV −55°C ≤ TA ≤ +125°C 2 5 mV RL = 10 kΩ to V+ 10 20 mV −55°C ≤ TA ≤ +125°C 15 20 mV Short-Circuit Limit ISC ±25 ±50 mA −55°C ≤ TA ≤ +125°C ±40 mA Output Current IO ±30 mA −55°C ≤ TA ≤ +125°C ±15 mA POWER SUPPLY Power Supply Rejection Ratio PSRR VS = 2.7 V to 5.5 V, −55°C ≤ TA ≤ +125°C 115 130 dB Supply Current per Amplifier ISY VO = VS/2 0.85 1.1 mA −55°C ≤ TA ≤ +125°C 1.0 1.2 mA INPUT CAPACITANCE CIN Differential 1.5 pF Common Mode 8.0 pF DYNAMIC PERFORMANCE Slew Rate SR RL = 10 kΩ 1.0 V/µs Overload Recovery Time 0.05 ms Gain Bandwidth Product GBP 2.5 MHz NOISE PERFORMANCE Voltage Noise en p-p 0.1 Hz to 10 Hz 0.5 µV p-p 0.1 Hz to 1.0 Hz 0.16 µV p-p Voltage Noise Density en f = 1 kHz 22 nV/√Hz Current Noise Density in f = 10 Hz 5 fA/√Hz Rev. A | Page 3 of 8 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—VS = 5.0 V ELECTRICAL CHARACTERISTICS—VS = 2.7 V ABSOLUTE MAXIMUM RATINGS THERMAL CHARACTERISTICS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
VS = 5.0 V, VCM = 2.5 V, TA = 25°C, unless otherwise noted.
Table 1. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS 1 5 µV −55°C ≤ TA ≤ +125°C 15 µV Input Bias Current IB 30 100 pA −55°C ≤ TA ≤ +125°C 1.5 nA Input Offset Current IOS 50 200 pA −55°C ≤ TA ≤ +125°C 250 pA Input Voltage Range 0 5 V Common-Mode Rejection Ratio CMRR VCM = 0 V to 5 V 120 140 dB −55°C ≤ TA ≤ +125°C 115 130 dB Large Signal Voltage Gain AVO RL = 10 kΩ, VO = 0.3 V to 4.7 V 125 145 dB −55°C ≤ TA ≤ +125°C 120 135 dB Offset Voltage Drift ∆VOS/∆T −55°C ≤ TA ≤ +125°C 0.008 0.05 µV/°C OUTPUT CHARACTERISTICS Output Voltage High VOH RL = 100 kΩ to ground 4.99 4.996 V −55°C ≤ TA ≤ +125°C 4.99 4.995 V RL = 10 kΩ to ground 4.95 4.98 V −55°C ≤ TA ≤ +125°C 4.95 4.97 V Output Voltage Low VOL RL = 100 kΩ to V+ 1 5 mV −55°C ≤ TA ≤ +125°C 2 5 mV RL = 10 kΩ to V+ 10 20 mV −55°C ≤ TA ≤ +125°C 15 20 mV Short-Circuit Limit ISC ±25 ±50 mA −55°C ≤ TA ≤ +125°C ±40 mA Output Current IO ±30 mA −55°C ≤ TA ≤ +125°C ±15 mA POWER SUPPLY Power Supply Rejection Ratio PSRR VS = 2.7 V to 5.5 V, −55°C ≤ TA ≤ +125°C 115 130 dB Supply Current per Amplifier ISY VO = VS/2 0.85 1.1 mA −55°C ≤ TA ≤ +125°C 1.0 1.2 mA INPUT CAPACITANCE CIN Differential 1.5 pF Common Mode 8.0 pF DYNAMIC PERFORMANCE Slew Rate SR RL = 10 kΩ 1.0 V/µs Overload Recovery Time 0.05 ms Gain Bandwidth Product GBP 2.5 MHz NOISE PERFORMANCE Voltage Noise en p-p 0.1 Hz to 10 Hz 0.5 µV p-p 0.1 Hz to 1.0 Hz 0.16 µV p-p Voltage Noise Density en f = 1 kHz 22 nV/√Hz Current Noise Density in f = 10 Hz 5 fA/√Hz Rev. A | Page 3 of 8 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—VS = 5.0 V ELECTRICAL CHARACTERISTICS—VS = 2.7 V ABSOLUTE MAXIMUM RATINGS THERMAL CHARACTERISTICS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
