Datasheet AD8028-KGD-CHIP (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | Low Distortion, High Speed Rail-to-Rail Input/Output Amplifier |
| Pages / Page | 8 / 8 — AD8028-KGD-CHIP. Known Good Die. OUTLINE DIMENSIONS. 1.415. 1.205. TOP … |
| Revision | B |
| File Format / Size | PDF / 182 Kb |
| Document Language | English |

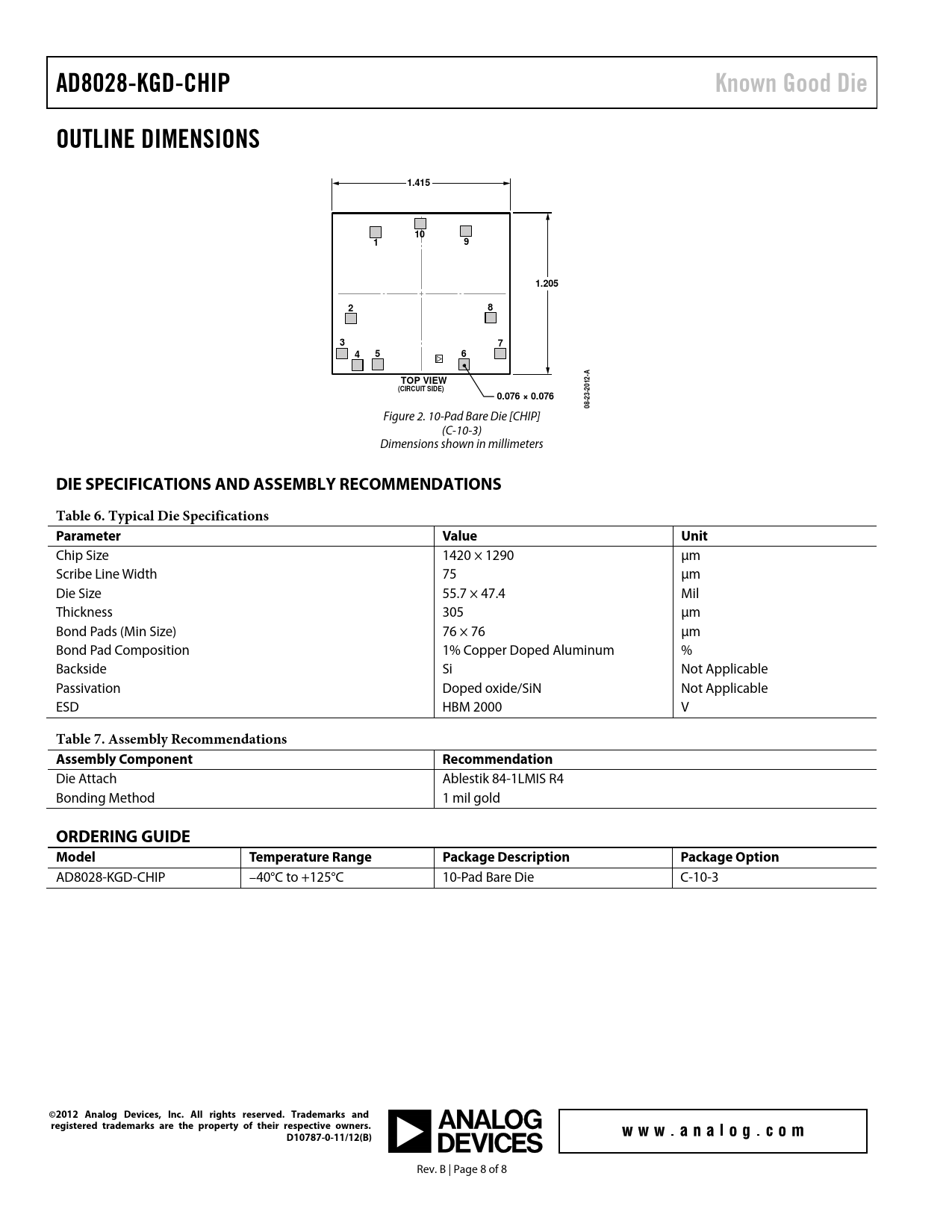

AD8028-KGD-CHIP. Known Good Die. OUTLINE DIMENSIONS. 1.415. 1.205. TOP VIEW. (CIRCUIT SIDE). 2012-. 0.076 × 0.076. 23-. 08-
Model Line for this Datasheet
Text Version of Document
AD8028-KGD-CHIP Known Good Die OUTLINE DIMENSIONS 1.415 10 1 9 1.205 2 8 3 7 4 5 6 A TOP VIEW (CIRCUIT SIDE) 2012- 0.076 × 0.076 23- 08-
Figure 2. 10-Pad Bare Die [CHIP] (C-10-3) Dimensions shown in millimeters
DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS Table 6. Typical Die Specifications Parameter Value Unit
Chip Size 1420 × 1290 µm Scribe Line Width 75 µm Die Size 55.7 × 47.4 Mil Thickness 305 µm Bond Pads (Min Size) 76 × 76 µm Bond Pad Composition 1% Copper Doped Aluminum % Backside Si Not Applicable Passivation Doped oxide/SiN Not Applicable ESD HBM 2000 V
Table 7. Assembly Recommendations Assembly Component Recommendation
Die Attach Ablestik 84-1LMIS R4 Bonding Method 1 mil gold
ORDERING GUIDE Model Temperature Range Package Description Package Option
AD8028-KGD-CHIP –40°C to +125°C 10-Pad Bare Die C-10-3
