Datasheet OP290 (Analog Devices) - 4

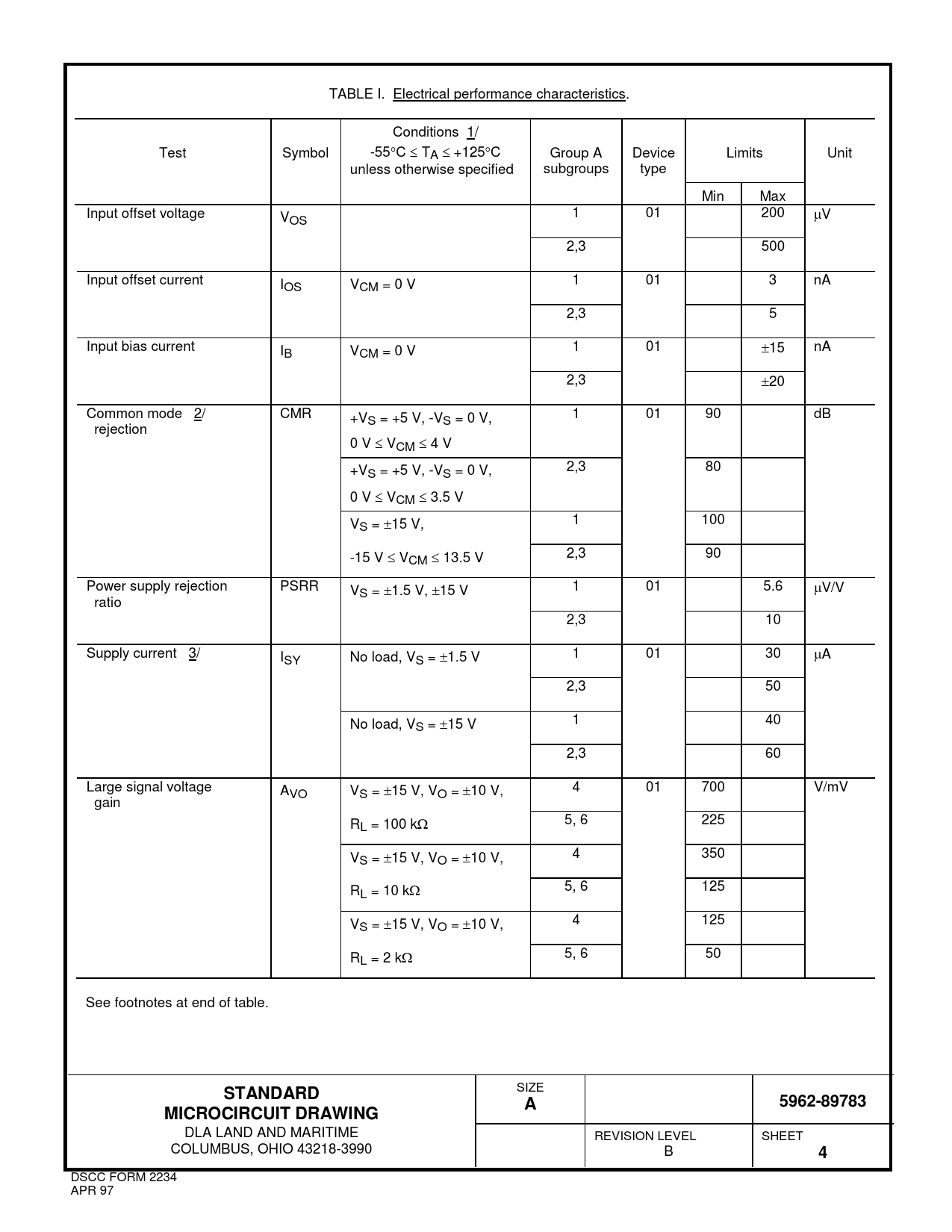

TABLE I. Electrical performance characteristics. Conditions 1/ Test Symbol -55°C ≤ TA ≤ +125°C Group A Device Limits Unit unless otherwise specified subgroups type Min Max Input offset voltage VOS 1 01 200 µV 2,3 500 Input offset current IOS VCM = 0 V 1 01 3 nA 2,3 5 Input bias current IB VCM = 0 V 1 01 ±15 nA 2,3 ±20 Common mode 2/ CMR +V 1 01 90 dB S = +5 V, -VS = 0 V, rejection 0 V ≤ VCM ≤ 4 V +V 2,3 80 S = +5 V, -VS = 0 V, 0 V ≤ VCM ≤ 3.5 V VS = ±15 V, 1 100 -15 V ≤ VCM ≤ 13.5 V 2,3 90 Power supply rejection PSRR VS = ±1.5 V, ±15 V 1 01 5.6 µV/V ratio 2,3 10 Supply current 3/ ISY No load, VS = ±1.5 V 1 01 30 µA 2,3 50 No load, VS = ±15 V 1 40 2,3 60 Large signal voltage AVO VS = ±15 V, VO = ±10 V, 4 01 700 V/mV gain RL = 100 kΩ 5, 6 225 VS = ±15 V, VO = ±10 V, 4 350 RL = 10 kΩ 5, 6 125 VS = ±15 V, VO = ±10 V, 4 125 RL = 2 kΩ 5, 6 50 See footnotes at end of table.
STANDARD
SIZE
A 5962-89783 MICROCIRCUIT DRAWING
DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990 B
4
DSCC FORM 2234 APR 97
