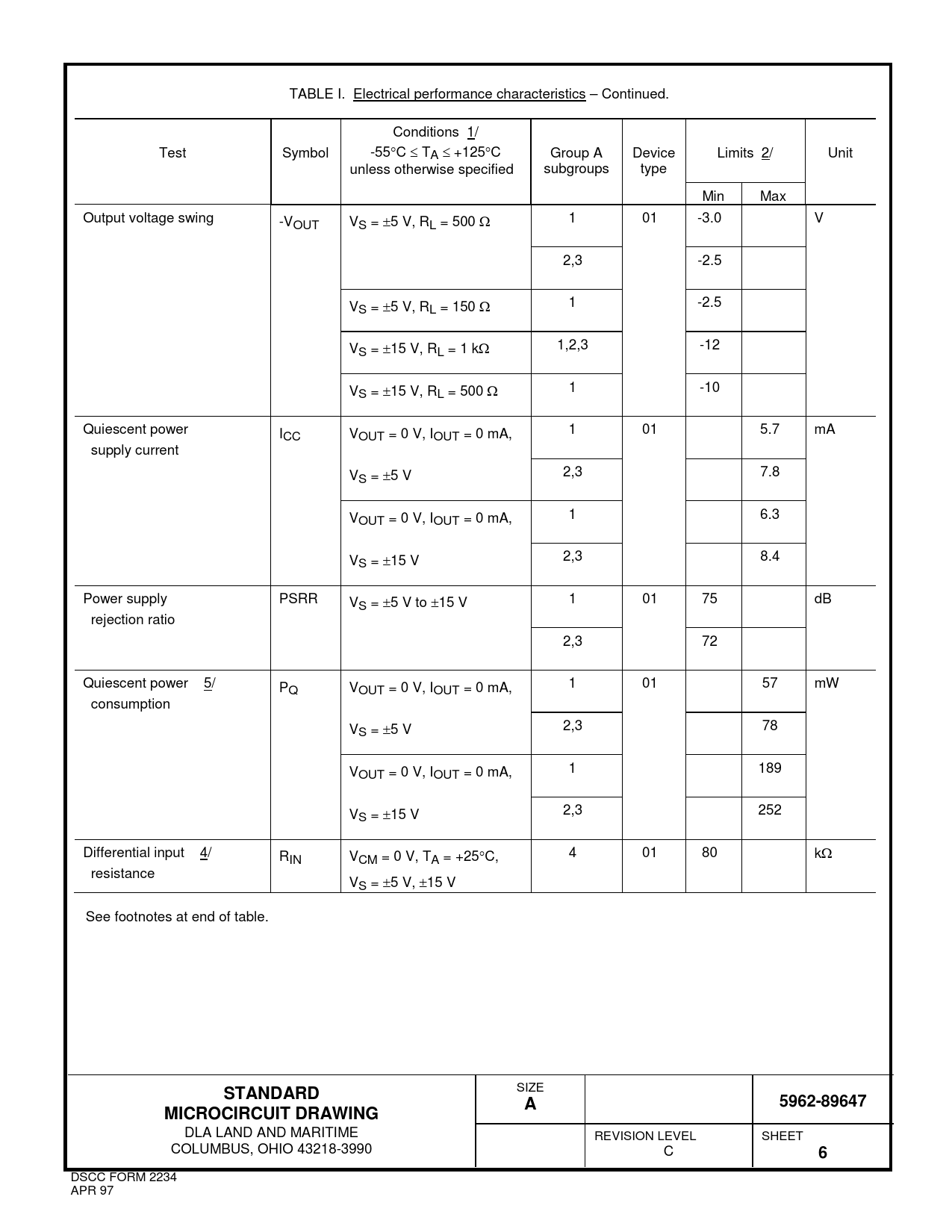

TABLE I. Electrical performance characteristics – Continued. Conditions 1/ Test Symbol -55°C ≤ TA ≤ +125°C Group A Device Limits 2/ Unit unless otherwise specified subgroups type Min Max Output voltage swing -VOUT VS = ±5 V, RL = 500 Ω 1 01 -3.0 V 2,3 -2.5 VS = ±5 V, RL = 150 Ω 1 -2.5 VS = ±15 V, RL = 1 kΩ 1,2,3 -12 VS = ±15 V, RL = 500 Ω 1 -10 Quiescent power ICC VOUT = 0 V, IOUT = 0 mA, 1 01 5.7 mA supply current VS = ±5 V 2,3 7.8 VOUT = 0 V, IOUT = 0 mA, 1 6.3 VS = ±15 V 2,3 8.4 Power supply PSRR VS = ±5 V to ±15 V 1 01 75 dB rejection ratio 2,3 72 Quiescent power 5/ PQ VOUT = 0 V, IOUT = 0 mA, 1 01 57 mW consumption VS = ±5 V 2,3 78 VOUT = 0 V, IOUT = 0 mA, 1 189 VS = ±15 V 2,3 252 Differential input 4/ R 4 01 80 kΩ IN VCM = 0 V, TA = +25°C, resistance VS = ±5 V, ±15 V See footnotes at end of table. STANDARD SIZE A5962-89647MICROCIRCUIT DRAWING DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990 C 6 DSCC FORM 2234 APR 97
