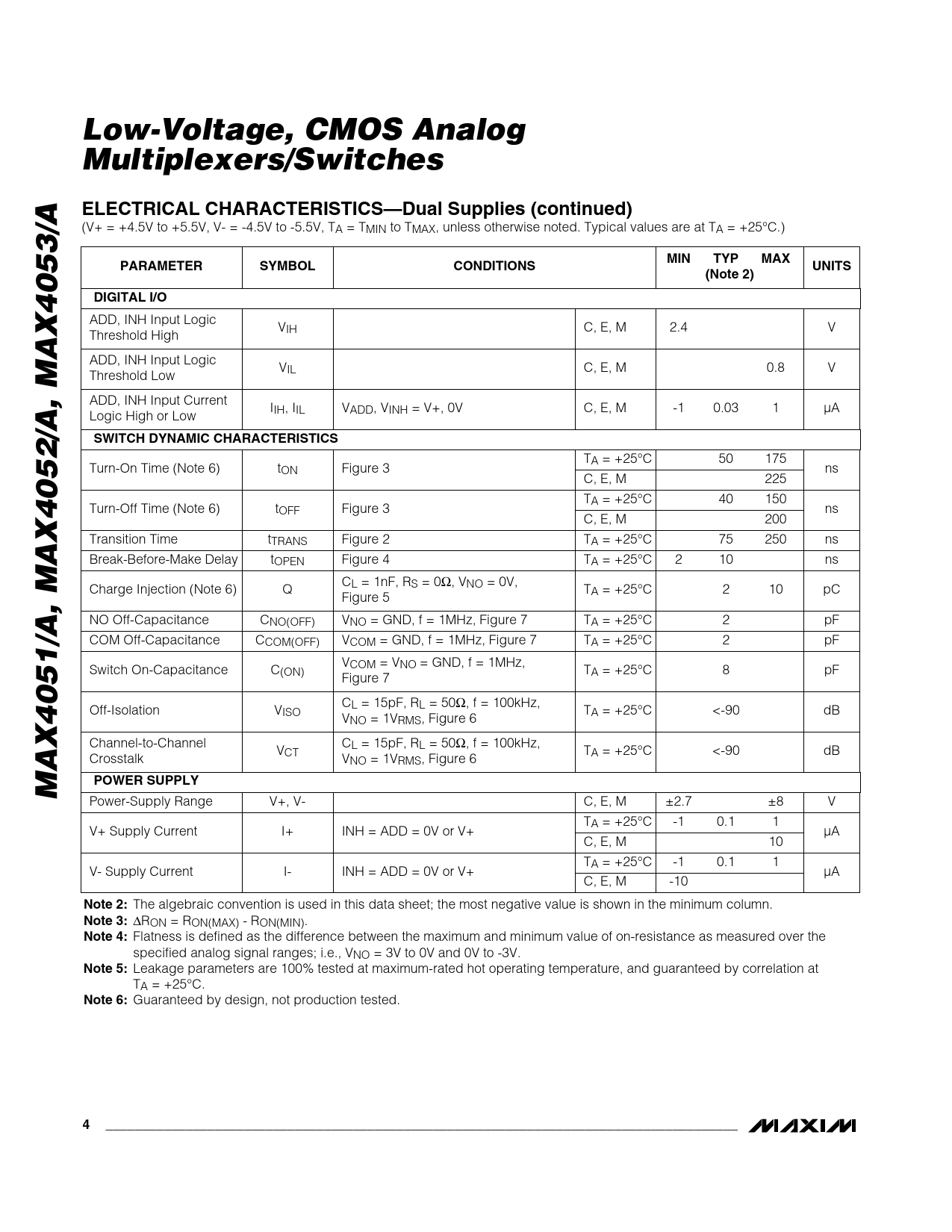

Low-Voltage, CMOS Analog Multiplexers/Switches. ELECTRICAL CHARACTERISTICS—Dual Supplies (continued). MIN. TYP. MAX. PARAMETER
Model Line for this Datasheet
Text Version of Document
Low-Voltage, CMOS Analog Multiplexers/Switches ELECTRICAL CHARACTERISTICS—Dual Supplies (continued)
(V+ = +4.5V to +5.5V, V- = -4.5V to -5.5V, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.)
MIN TYP MAX PARAMETER SYMBOL CONDITIONS UNITS (Note 2) DIGITAL I/O
ADD, INH Input Logic VIH C, E, M 2.4 V Threshold High ADD, INH Input Logic VIL C, E, M 0.8 V Threshold Low ADD, INH Input Current IIH, IIL VADD, VINH = V+, 0V C, E, M -1 0.03 1 µA Logic High or Low
SWITCH DYNAMIC CHARACTERISTICS
TA = +25°C 50 175 Turn-On Time (Note 6) tON Figure 3 ns C, E, M 225 TA = +25°C 40 150 Turn-Off Time (Note 6) tOFF Figure 3 ns C, E, M 200 Transition Time tTRANS Figure 2 TA = +25°C 75 250 ns Break-Before-Make Delay tOPEN Figure 4 TA = +25°C 2 10 ns C Charge Injection (Note 6) Q L = 1nF, RS = 0Ω, VNO = 0V, TA = +25°C 2 10 pC Figure 5 NO Off-Capacitance CNO(OFF) VNO = GND, f = 1MHz, Figure 7 TA = +25°C 2 pF COM Off-Capacitance CCOM(OFF) VCOM = GND, f = 1MHz, Figure 7 TA = +25°C 2 pF V Switch On-Capacitance C COM = VNO = GND, f = 1MHz, (ON) TA = +25°C 8 pF Figure 7 C Off-Isolation V L = 15pF, RL = 50Ω, f = 100kHz, ISO TA = +25°C <-90 dB VNO = 1VRMS, Figure 6 Channel-to-Channel C V L = 15pF, RL = 50Ω, f = 100kHz, CT TA = +25°C <-90 dB Crosstalk VNO = 1VRMS, Figure 6
MAX4051/A, MAX4052/A, MAX4053/A POWER SUPPLY
Power-Supply Range V+, V- C, E, M ±2.7 ±8 V TA = +25°C -1 0.1 1 V+ Supply Current I+ INH = ADD = 0V or V+ µA C, E, M 10 TA = +25°C -1 0.1 1 V- Supply Current I- INH = ADD = 0V or V+ µA C, E, M -10
Note 2:
The algebraic convention is used in this data sheet; the most negative value is shown in the minimum column.
Note 3:
∆RON = RON(MAX) - RON(MIN).
Note 4:
Flatness is defined as the difference between the maximum and minimum value of on-resistance as measured over the specified analog signal ranges; i.e., VNO = 3V to 0V and 0V to -3V.
Note 5:
Leakage parameters are 100% tested at maximum-rated hot operating temperature, and guaranteed by correlation at TA = +25°C.
Note 6:
Guaranteed by design, not production tested.
