Datasheet RH1965MK DICE/DWF (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | 0.9A, Low Noise, Low Dropout Linear Regulator |
| Pages / Page | 8 / 8 — typical perFormance characteristics TA = 25°C. Reverse-Output Current. … |
| File Format / Size | PDF / 571 Kb |
| Document Language | English |

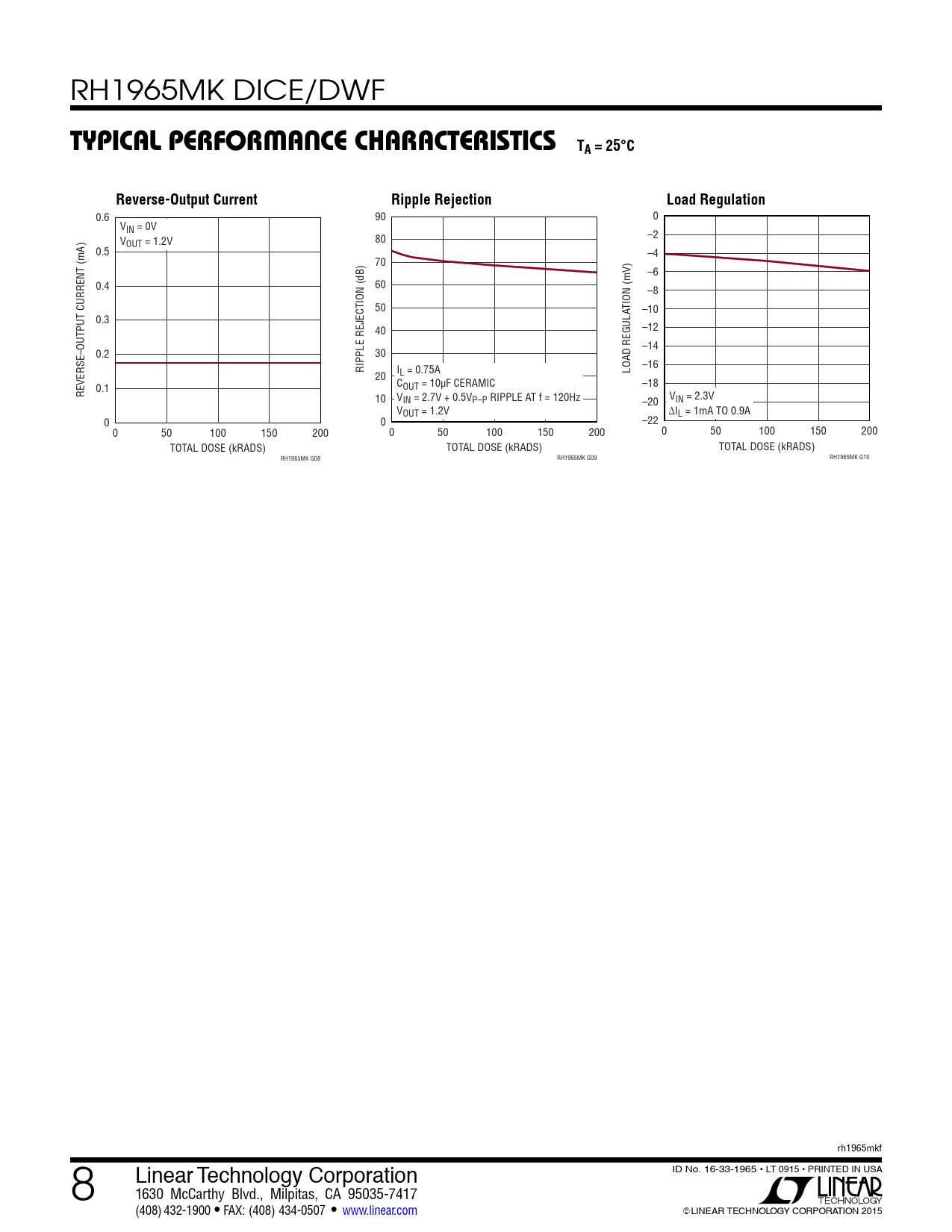

typical perFormance characteristics TA = 25°C. Reverse-Output Current. Ripple Rejection. Load Regulation
Model Line for this Datasheet
Text Version of Document
RH1965MK DICE/DWF
typical perFormance characteristics TA = 25°C Reverse-Output Current Ripple Rejection Load Regulation
0.6 90 0 VIN = 0V –2 VOUT = 1.2V 80 0.5 –4 70 –6 0.4 60 –8 50 TION (mV) –10 0.3 40 –12 –14 0.2 30 RIPPLE REJECTION (dB) I –16 L = 0.75A LOAD REGULA 20 0.1 COUT = 10µF CERAMIC –18 REVERSE–OUTPUT CURRENT (mA) 10 VIN = 2.7V + 0.5VP–P RIPPLE AT f = 120Hz VIN = 2.3V –20 VOUT = 1.2V ∆IL = 1mA TO 0.9A 0 0 –22 0 50 100 150 200 0 50 100 150 200 0 50 100 150 200 TOTAL DOSE (kRADS) TOTAL DOSE (kRADS) TOTAL DOSE (kRADS) RH1965MK G08 RH1965MK G09 RH1965MK G10 rh1965mkf 8 Linear Technology Corporation ID No. 16-33-1965 • LT 0915 • PRINTED IN USA 1630 McCarthy Blvd., Milpitas, CA 9Fo 5 r0 m 35o-re 7 i4nfo 17 r mation www.linear.com/RH1965MK (408) 432-1900 ● FAX: (408) 434-0507 ● www.linear.com LINEAR TECHNOLOGY CORPORATION 2015 Document Outline Features Description Dice Pinout Absolute Maximum Ratings Table 1: DICE/DWF Electrical Test Limits Table 2: Electrical Characteristics Table 3: Electrical Characteristics Table 4. Post Burn-In Endpoints and Delta Limit Requirements Table 5. Electrical Test Requirements Total Dose Bias Circuit Burn-In Circuit Typical Performance Characteristics
