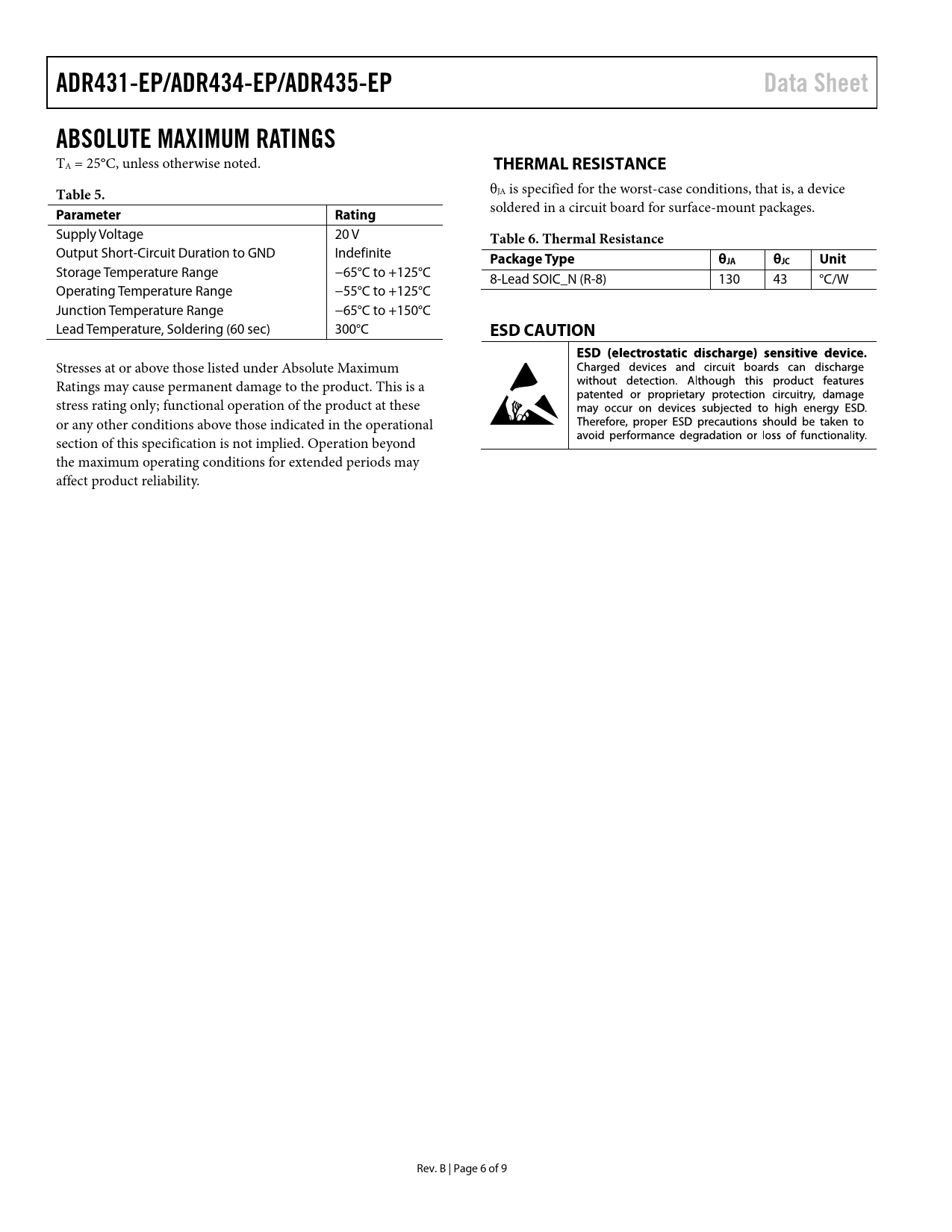

ADR431-EP/ADR434-EP/ADR435-EP. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 5. Parameter. Rating
Model Line for this Datasheet
- ADR431ARMZ ADR431ARMZ-REEL7 ADR431ARZ ADR431ARZ-REEL7 ADR431BRMZ ADR431BRMZ-R7 ADR431BRZ ADR431BRZ-REEL7 ADR431TRZ-EP ADR431TRZ-EP-R7
Text Version of Document
ADR431-EP/ADR434-EP/ADR435-EP Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
THERMAL RESISTANCE Table 5.
θJA is specified for the worst-case conditions, that is, a device
Parameter Rating
soldered in a circuit board for surface-mount packages. Supply Voltage 20 V
Table 6. Thermal Resistance
Output Short-Circuit Duration to GND Indefinite
Package Type θJA θJC Unit
Storage Temperature Range −65°C to +125°C 8-Lead SOIC_N (R-8) 130 43 °C/W Operating Temperature Range −55°C to +125°C Junction Temperature Range −65°C to +150°C Lead Temperature, Soldering (60 sec) 300°C
ESD CAUTION
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. B | Page 6 of 9 Document Outline Features Enhanced Product Features Applications Pin Configuration General Description Revision History Specifications ADR431-EP Electrical Characteristics ADR434-EP Electrical Characteristics ADR435-EP Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Outline Dimensions Ordering Guide
