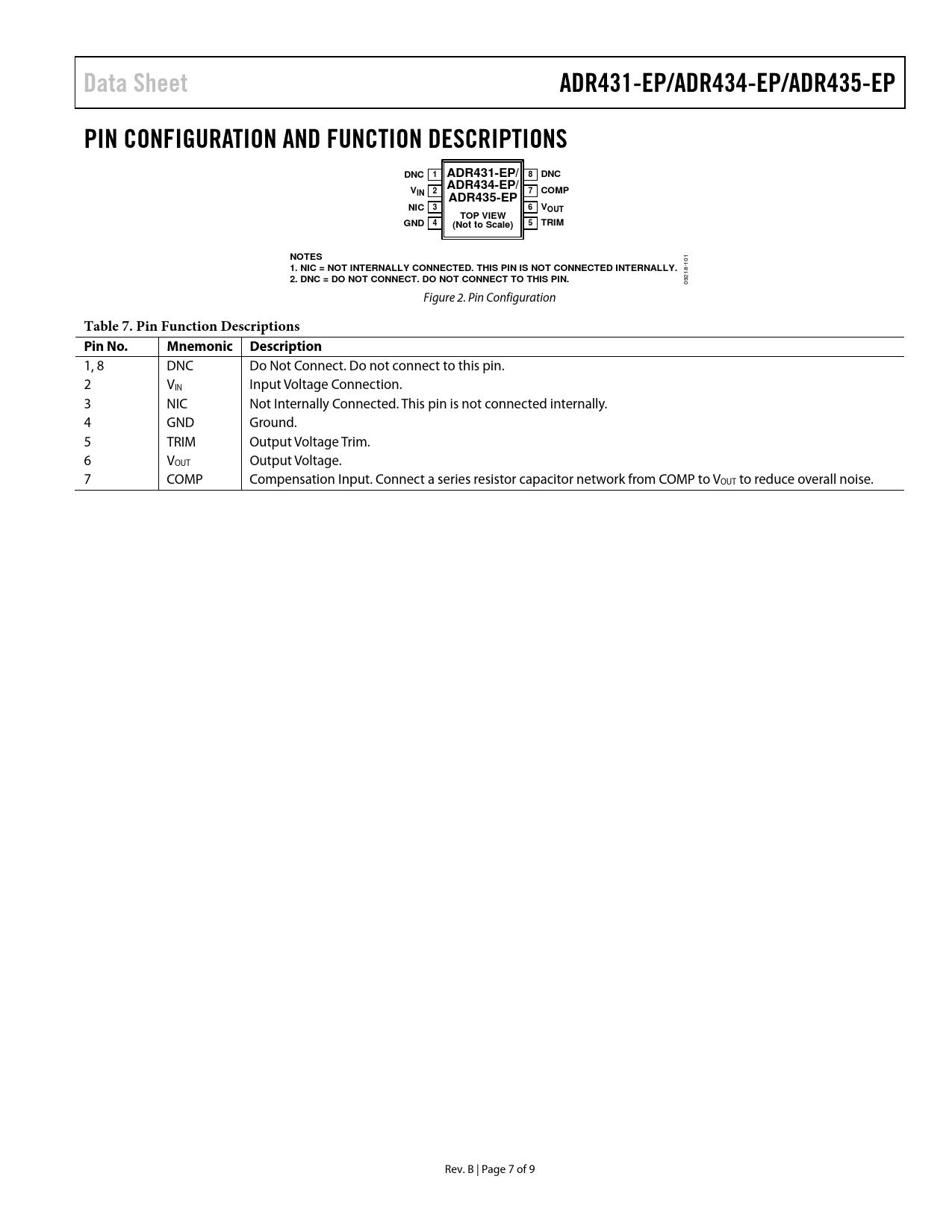

Data Sheet. ADR431-EP/ADR434-EP/ADR435-EP. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. DNC 1. ADR431-EP/ 8 DNC ADR434-EP/. VIN 2
Model Line for this Datasheet
- ADR431ARMZ ADR431ARMZ-REEL7 ADR431ARZ ADR431ARZ-REEL7 ADR431BRMZ ADR431BRMZ-R7 ADR431BRZ ADR431BRZ-REEL7 ADR431TRZ-EP ADR431TRZ-EP-R7
Text Version of Document
Data Sheet ADR431-EP/ADR434-EP/ADR435-EP PIN CONFIGURATION AND FUNCTION DESCRIPTIONS DNC 1 ADR431-EP/ 8 DNC ADR434-EP/ VIN 2 7 COMP ADR435-EP NIC 3 6 VOUT TOP VIEW GND 4 5 TRIM (Not to Scale) NOTES
01 1
1. NIC = NOT INTERNALLY CONNECTED. THIS PIN IS NOT CONNECTED INTERNALLY.
8- 21
2. DNC = DO NOT CONNECT. DO NOT CONNECT TO THIS PIN.
09 Figure 2. Pin Configuration
Table 7. Pin Function Descriptions Pin No. Mnemonic Description
1, 8 DNC Do Not Connect. Do not connect to this pin. 2 VIN Input Voltage Connection. 3 NIC Not Internally Connected. This pin is not connected internally. 4 GND Ground. 5 TRIM Output Voltage Trim. 6 VOUT Output Voltage. 7 COMP Compensation Input. Connect a series resistor capacitor network from COMP to VOUT to reduce overall noise. Rev. B | Page 7 of 9 Document Outline Features Enhanced Product Features Applications Pin Configuration General Description Revision History Specifications ADR431-EP Electrical Characteristics ADR434-EP Electrical Characteristics ADR435-EP Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Outline Dimensions Ordering Guide
