Datasheet HMC648ALP6E (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | GaAs MMIC 6-Bit Digital Phase Shifter, 2.9 to 3.9 GHz |
| Pages / Page | 8 / 5 — HMC648ALP6E. GaAs MMIC 6-BIT DIGITAL. PHASE SHIFTER, 2.9 - 3.9 GHz. … |
| File Format / Size | PDF / 538 Kb |
| Document Language | English |
HMC648ALP6E. GaAs MMIC 6-BIT DIGITAL. PHASE SHIFTER, 2.9 - 3.9 GHz. Outline Drawing. Package Information
Model Line for this Datasheet
Text Version of Document
HMC648ALP6E
v01.0217

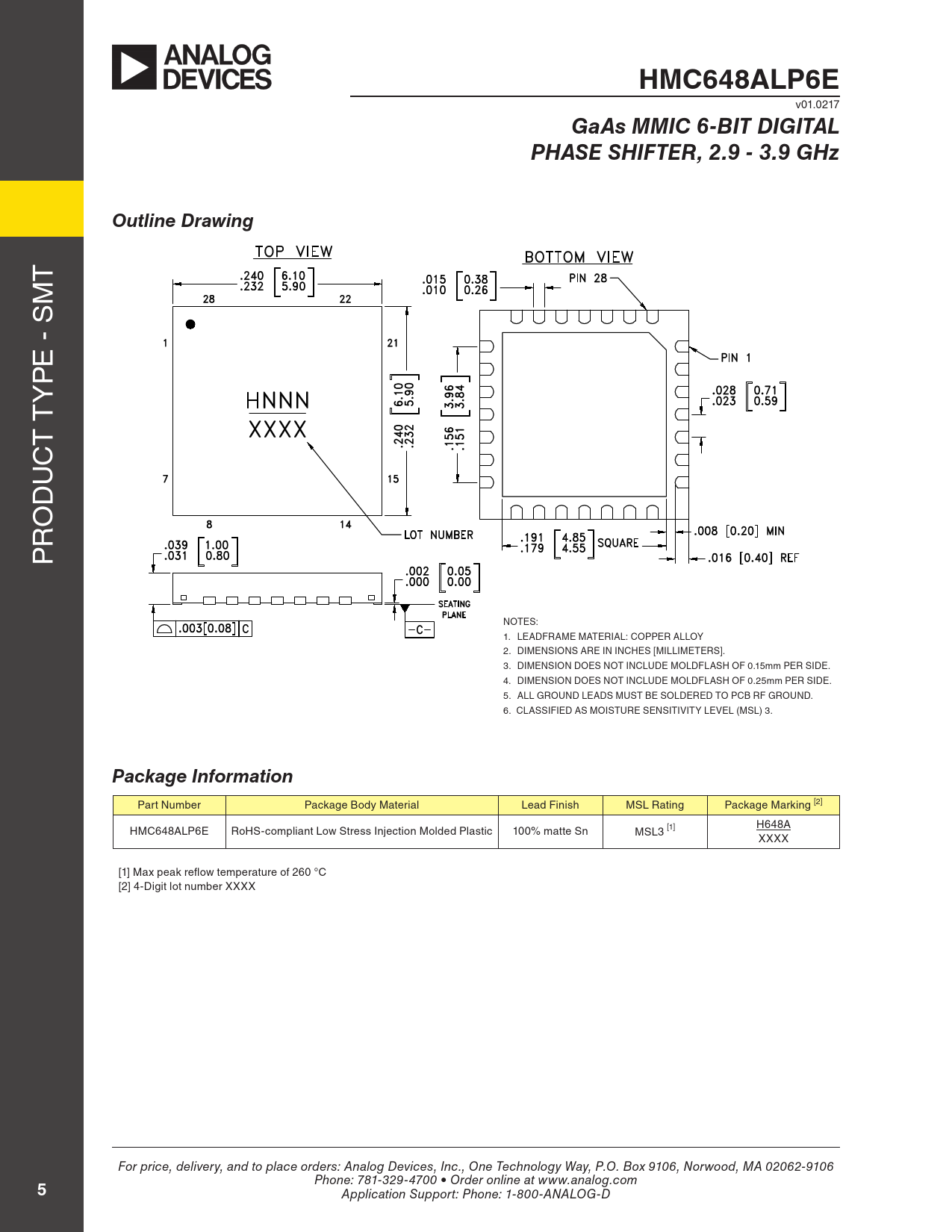

GaAs MMIC 6-BIT DIGITAL PHASE SHIFTER, 2.9 - 3.9 GHz Outline Drawing
t M e - S P y t t c u d o r P NoteS: 1. LeAdFrAMe MAterIAL: coPPer ALLoy 2. dIMeNSIoNS Are IN INcHeS [MILLIMeterS]. 3. dIMeNSIoN doeS Not INcLude MoLdFLASH oF 0.15mm Per SIde. 4. dIMeNSIoN doeS Not INcLude MoLdFLASH oF 0.25mm Per SIde. 5. ALL GrouNd LeAdS MuSt Be SoLdered to PcB rF GrouNd. 6. cLASSIFIed AS MoISture SeNSItIVIty LeVeL (MSL) 3.
Package Information
Part Number Package Body Material Lead Finish MSL rating Package Marking [2] HMc648ALP6e roHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL3 [1] H648A XXXX [1] Max peak reflow temperature of 260 °c [2] 4-digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
5
Application Support: Phone: 1-800-ANALOG-D
v01.0217
GaAs MMIC 6-BIT DIGITAL PHASE SHIFTER, 2.9 - 3.9 GHz Outline Drawing
t M e - S P y t t c u d o r P NoteS: 1. LeAdFrAMe MAterIAL: coPPer ALLoy 2. dIMeNSIoNS Are IN INcHeS [MILLIMeterS]. 3. dIMeNSIoN doeS Not INcLude MoLdFLASH oF 0.15mm Per SIde. 4. dIMeNSIoN doeS Not INcLude MoLdFLASH oF 0.25mm Per SIde. 5. ALL GrouNd LeAdS MuSt Be SoLdered to PcB rF GrouNd. 6. cLASSIFIed AS MoISture SeNSItIVIty LeVeL (MSL) 3.
Package Information
Part Number Package Body Material Lead Finish MSL rating Package Marking [2] HMc648ALP6e roHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL3 [1] H648A XXXX [1] Max peak reflow temperature of 260 °c [2] 4-digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
5
Application Support: Phone: 1-800-ANALOG-D
