Datasheet ADF5000 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 4 GHz TO 18 GHz Divide-by-2 Prescaler |
| Pages / Page | 12 / 3 — Data Sheet. ADF5000. SPECIFICATIONS. Table 1. Parameter. Min. Typ. Max. … |
| Revision | A |
| File Format / Size | PDF / 220 Kb |
| Document Language | English |

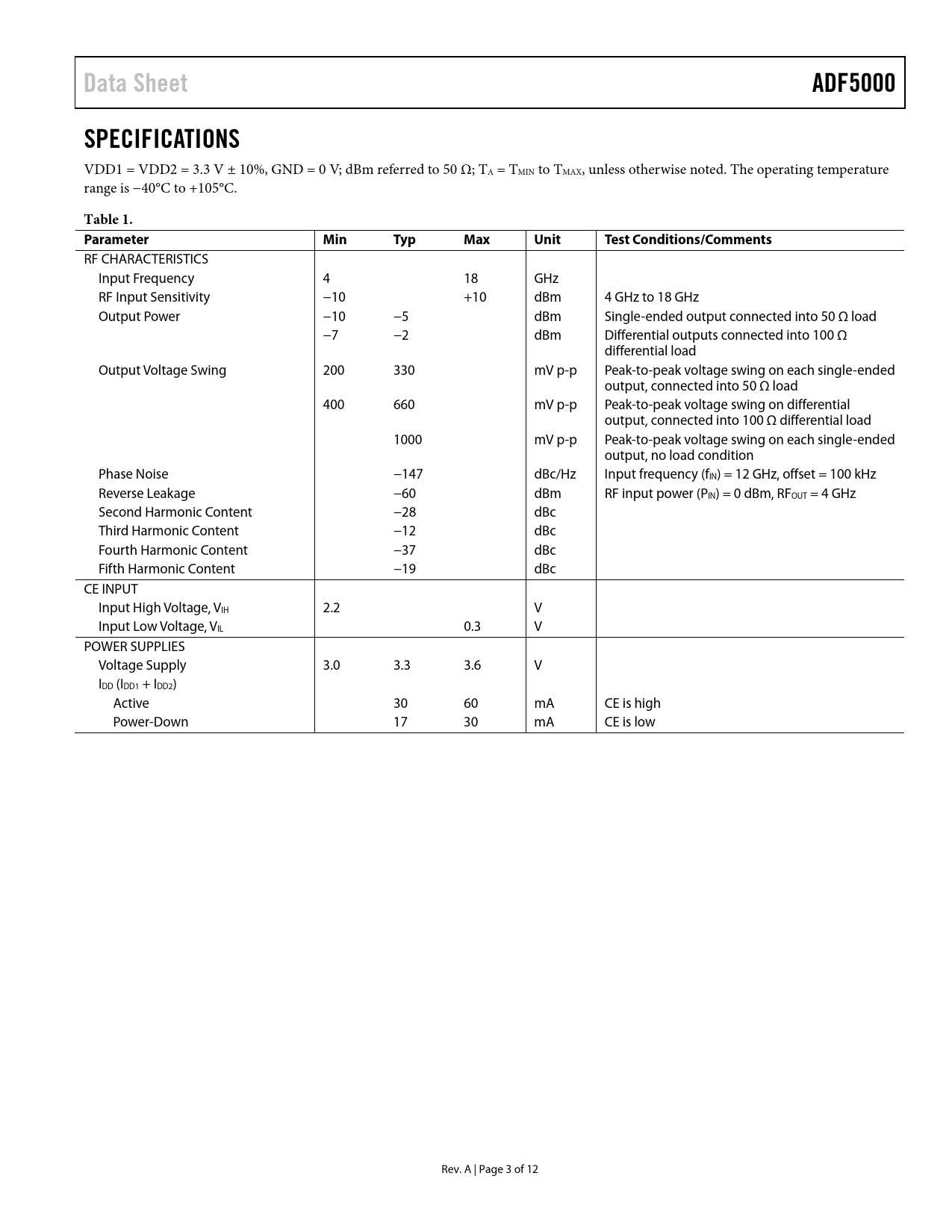

Data Sheet. ADF5000. SPECIFICATIONS. Table 1. Parameter. Min. Typ. Max. Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
Data Sheet ADF5000 SPECIFICATIONS
VDD1 = VDD2 = 3.3 V ± 10%, GND = 0 V; dBm referred to 50 Ω; TA = TMIN to TMAX, unless otherwise noted. The operating temperature range is −40°C to +105°C.
Table 1. Parameter Min Typ Max Unit Test Conditions/Comments
RF CHARACTERISTICS Input Frequency 4 18 GHz RF Input Sensitivity −10 +10 dBm 4 GHz to 18 GHz Output Power −10 −5 dBm Single-ended output connected into 50 Ω load −7 −2 dBm Differential outputs connected into 100 Ω differential load Output Voltage Swing 200 330 mV p-p Peak-to-peak voltage swing on each single-ended output, connected into 50 Ω load 400 660 mV p-p Peak-to-peak voltage swing on differential output, connected into 100 Ω differential load 1000 mV p-p Peak-to-peak voltage swing on each single-ended output, no load condition Phase Noise −147 dBc/Hz Input frequency (fIN) = 12 GHz, offset = 100 kHz Reverse Leakage −60 dBm RF input power (PIN) = 0 dBm, RFOUT = 4 GHz Second Harmonic Content −28 dBc Third Harmonic Content −12 dBc Fourth Harmonic Content −37 dBc Fifth Harmonic Content −19 dBc CE INPUT Input High Voltage, VIH 2.2 V Input Low Voltage, VIL 0.3 V POWER SUPPLIES Voltage Supply 3.0 3.3 3.6 V IDD (IDD1 + IDD2) Active 30 60 mA CE is high Power-Down 17 30 mA CE is low Rev. A | Page 3 of 12 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Evaluation Board PCB PCB Material Stack-Up Bill of Materials Application Circuit Outline Dimensions Ordering Guide
