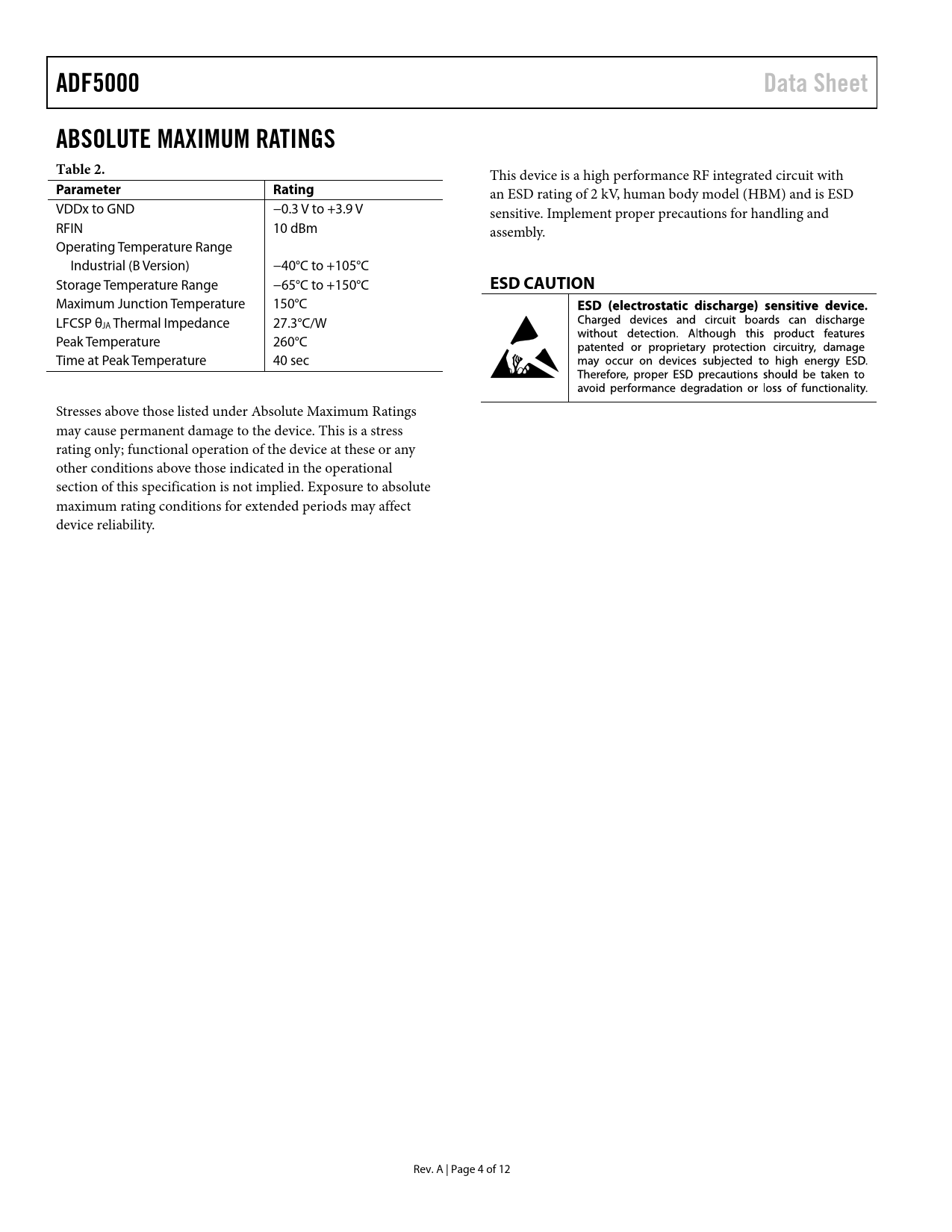

ADF5000. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
ADF5000 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
This device is a high performance RF integrated circuit with
Parameter Rating
an ESD rating of 2 kV, human body model (HBM) and is ESD VDDx to GND −0.3 V to +3.9 V sensitive. Implement proper precautions for handling and RFIN 10 dBm assembly. Operating Temperature Range Industrial (B Version) −40°C to +105°C Storage Temperature Range −65°C to +150°C
ESD CAUTION
Maximum Junction Temperature 150°C LFCSP θJA Thermal Impedance 27.3°C/W Peak Temperature 260°C Time at Peak Temperature 40 sec Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. A | Page 4 of 12 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Evaluation Board PCB PCB Material Stack-Up Bill of Materials Application Circuit Outline Dimensions Ordering Guide
