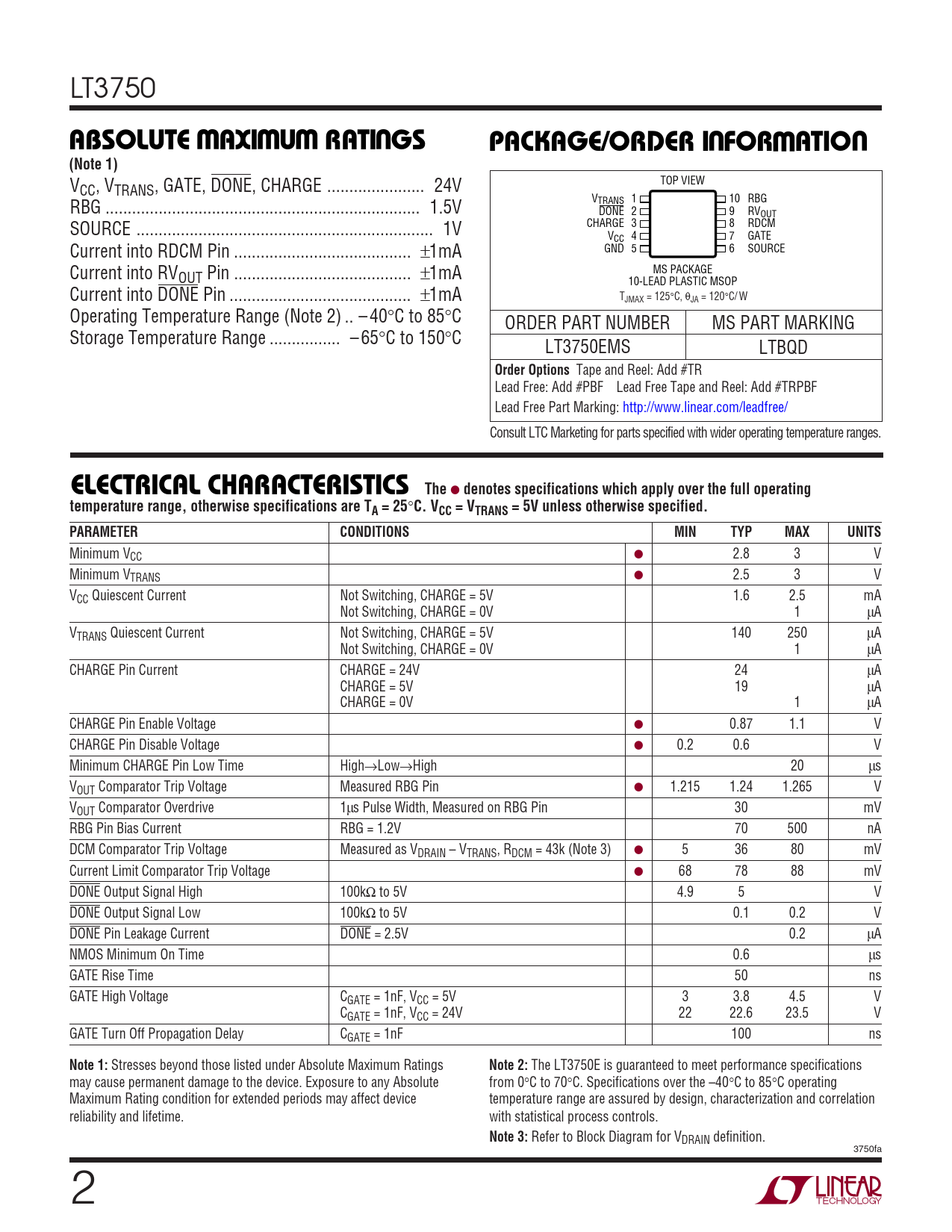

ABSOLUTE AXI U RATI GS. PACKAGE/ORDER I FOR ATIO. (Note 1). Order Options. ELECTRICAL CHARACTERISTICS The
Model Line for this Datasheet
Text Version of Document
LT3750
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
V TOP VIEW CC, VTRANS, GATE, DONE, CHARGE .. 24V VTRANS 1 10 RBG RBG ... 1.5V DONE 2 9 RVOUT SOURCE ... 1V CHARGE 3 8 RDCM V 4 CC 7 GATE Current into RDCM Pin .. ±1mA GND 5 6 SOURCE Current into RV MS PACKAGE OUT Pin .. ±1mA 10-LEAD PLASTIC MSOP Current into DONE Pin ... ±1mA TJMAX = 125°C, θJA = 120°C/ W Operating Temperature Range (Note 2) .. – 40°C to 85°C ORDER PART NUMBER MS PART MARKING Storage Temperature Range .. – 65°C to 150°C LT3750EMS LTBQD
Order Options
Tape and Reel: Add #TR Lead Free: Add #PBF Lead Free Tape and Reel: Add #TRPBF Lead Free Part Marking: http://www.linear.com/leadfree/ Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS The
●
denotes specifications which apply over the full operating temperature range, otherwise specifications are TA = 25
°
C. VCC = VTRANS = 5V unless otherwise specified. PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum VCC ● 2.8 3 V Minimum VTRANS ● 2.5 3 V VCC Quiescent Current Not Switching, CHARGE = 5V 1.6 2.5 mA Not Switching, CHARGE = 0V 1 µA VTRANS Quiescent Current Not Switching, CHARGE = 5V 140 250 µA Not Switching, CHARGE = 0V 1 µA CHARGE Pin Current CHARGE = 24V 24 µA CHARGE = 5V 19 µA CHARGE = 0V 1 µA CHARGE Pin Enable Voltage ● 0.87 1.1 V CHARGE Pin Disable Voltage ● 0.2 0.6 V Minimum CHARGE Pin Low Time High→Low→High 20 µs VOUT Comparator Trip Voltage Measured RBG Pin ● 1.215 1.24 1.265 V VOUT Comparator Overdrive 1µs Pulse Width, Measured on RBG Pin 30 mV RBG Pin Bias Current RBG = 1.2V 70 500 nA DCM Comparator Trip Voltage Measured as VDRAIN – VTRANS, RDCM = 43k (Note 3) ● 5 36 80 mV Current Limit Comparator Trip Voltage ● 68 78 88 mV DONE Output Signal High 100kΩ to 5V 4.9 5 V DONE Output Signal Low 100kΩ to 5V 0.1 0.2 V DONE Pin Leakage Current DONE = 2.5V 0.2 µA NMOS Minimum On Time 0.6 µs GATE Rise Time 50 ns GATE High Voltage CGATE = 1nF, VCC = 5V 3 3.8 4.5 V CGATE = 1nF, VCC = 24V 22 22.6 23.5 V GATE Turn Off Propagation Delay CGATE = 1nF 100 ns
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 2:
The LT3750E is guaranteed to meet performance specifications may cause permanent damage to the device. Exposure to any Absolute from 0°C to 70°C. Specifications over the –40°C to 85°C operating Maximum Rating condition for extended periods may affect device temperature range are assured by design, characterization and correlation reliability and lifetime. with statistical process controls.
Note 3:
Refer to Block Diagram for VDRAIN definition. 3750fa 2
