Datasheet ATtiny11, ATtiny12 - Summary (Atmel) - 7
| Manufacturer | Atmel |
| Description | 8-bit AVR Microcontroller with 1K Byte Flash |
| Pages / Page | 15 / 7 — ATtiny11/12. Register Summary ATtiny12. Address. Name. Bit 7. Bit 6. Bit … |
| File Format / Size | PDF / 235 Kb |
| Document Language | English |

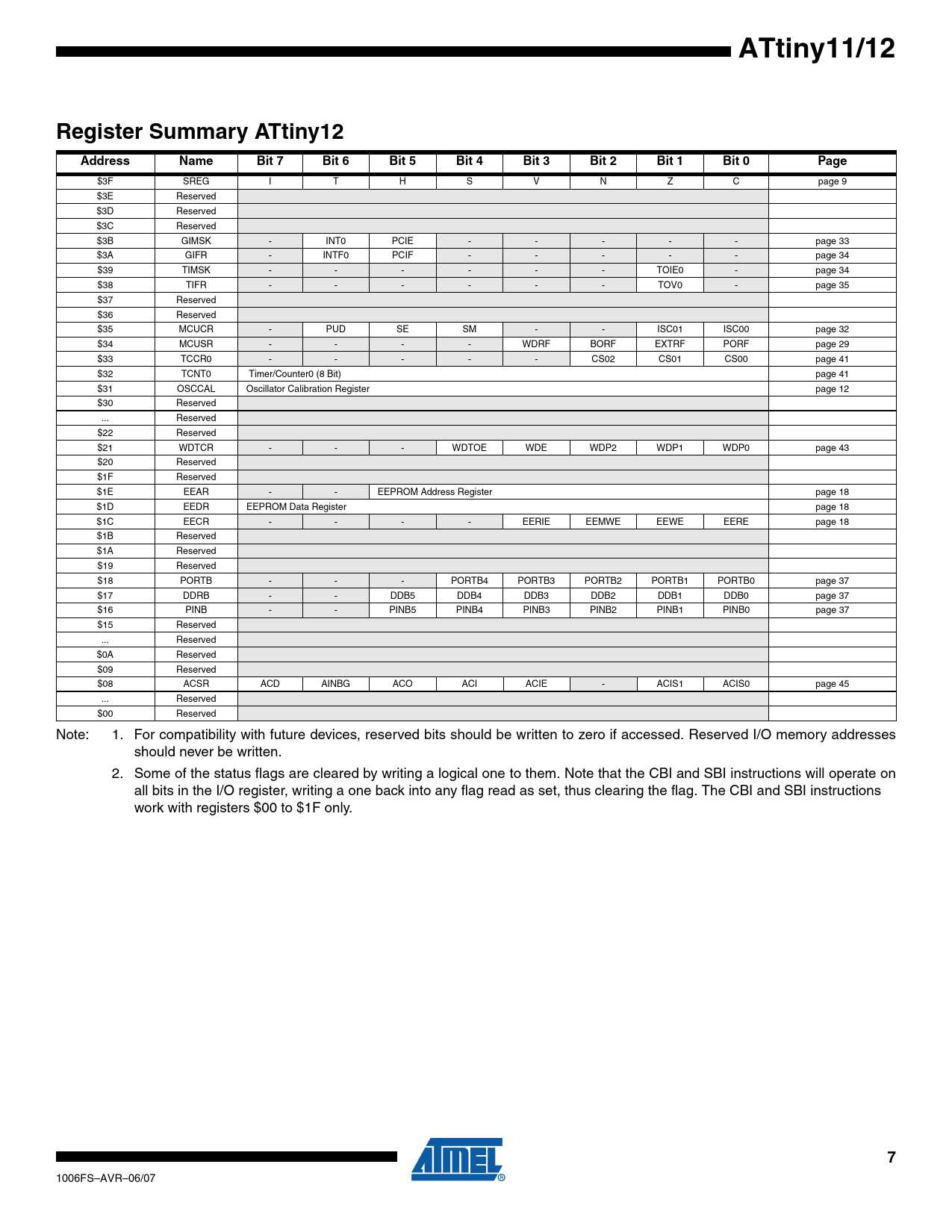

ATtiny11/12. Register Summary ATtiny12. Address. Name. Bit 7. Bit 6. Bit 5. Bit 4. Bit 3. Bit 2. Bit 1. Bit 0. Page
Model Line for this Datasheet
Text Version of Document
ATtiny11/12 Register Summary ATtiny12 Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Page
$3F SREG I T H S V N Z C page 9 $3E Reserved $3D Reserved $3C Reserved $3B GIMSK - INT0 PCIE - - - - - page 33 $3A GIFR - INTF0 PCIF - - - - - page 34 $39 TIMSK - - - - - - TOIE0 - page 34 $38 TIFR - - - - - - TOV0 - page 35 $37 Reserved $36 Reserved $35 MCUCR - PUD SE SM - - ISC01 ISC00 page 32 $34 MCUSR - - - - WDRF BORF EXTRF PORF page 29 $33 TCCR0 - - - - - CS02 CS01 CS00 page 41 $32 TCNT0 Timer/Counter0 (8 Bit) page 41 $31 OSCCAL Oscillator Calibration Register page 12 $30 Reserved ... Reserved $22 Reserved $21 WDTCR - - - WDTOE WDE WDP2 WDP1 WDP0 page 43 $20 Reserved $1F Reserved $1E EEAR - - EEPROM Address Register page 18 $1D EEDR EEPROM Data Register page 18 $1C EECR - - - - EERIE EEMWE EEWE EERE page 18 $1B Reserved $1A Reserved $19 Reserved $18 PORTB - - - PORTB4 PORTB3 PORTB2 PORTB1 PORTB0 page 37 $17 DDRB - - DDB5 DDB4 DDB3 DDB2 DDB1 DDB0 page 37 $16 PINB - - PINB5 PINB4 PINB3 PINB2 PINB1 PINB0 page 37 $15 Reserved ... Reserved $0A Reserved $09 Reserved $08 ACSR ACD AINBG ACO ACI ACIE - ACIS1 ACIS0 page 45 ... Reserved $00 Reserved Note: 1. For compatibility with future devices, reserved bits should be written to zero if accessed. Reserved I/O memory addresses should never be written. 2. Some of the status flags are cleared by writing a logical one to them. Note that the CBI and SBI instructions will operate on all bits in the I/O register, writing a one back into any flag read as set, thus clearing the flag. The CBI and SBI instructions work with registers $00 to $1F only.
