Datasheet LTM2882 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | Dual Isolated RS232 μModule Transceiver + Power |
| Pages / Page | 22 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1) |
| File Format / Size | PDF / 658 Kb |
| Document Language | English |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1)
Model Line for this Datasheet
Text Version of Document
LTM2882

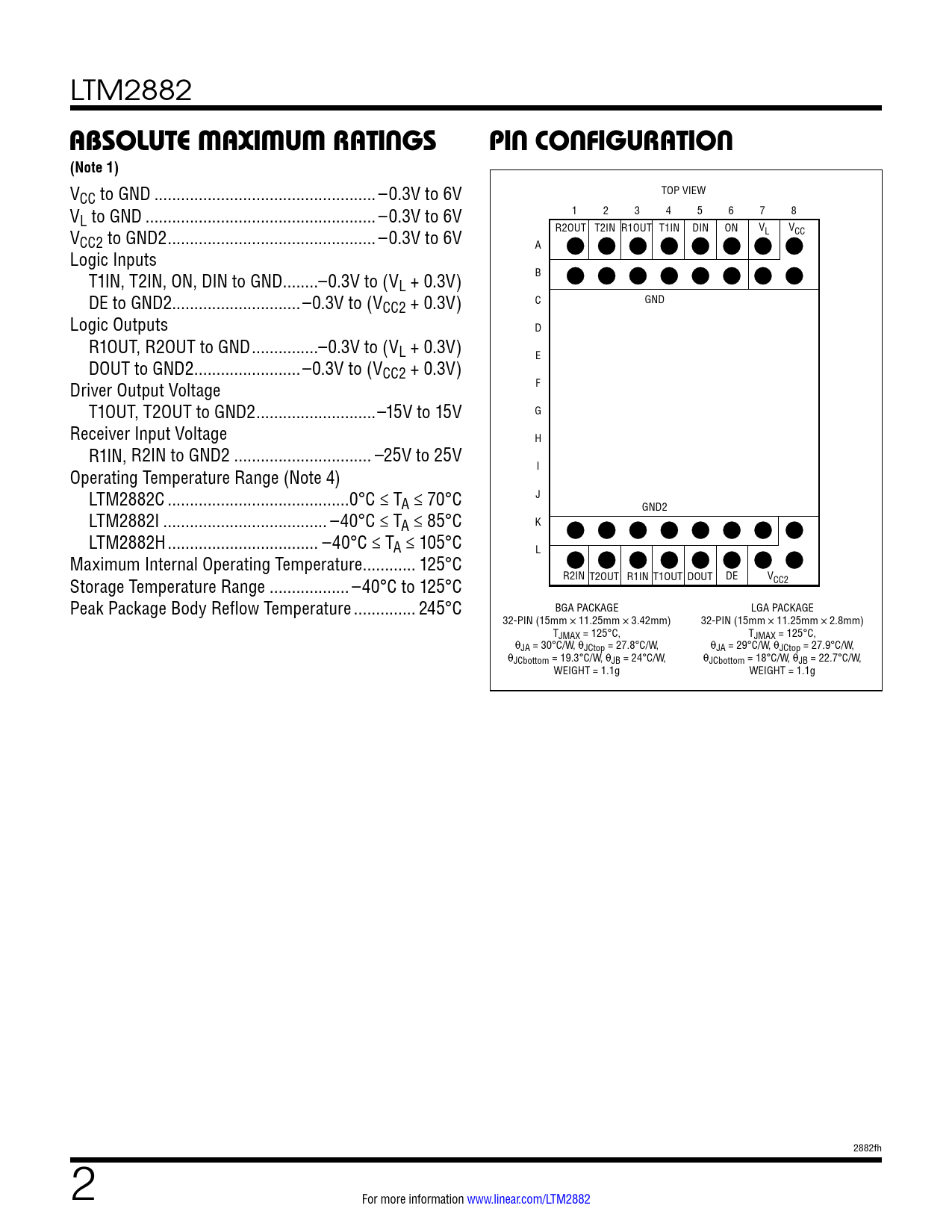

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
VCC to GND .. –0.3V to 6V TOP VIEW V 1 2 3 4 5 6 7 8 L to GND .. –0.3V to 6V V R2OUT T2IN R1OUT T1IN DIN ON V V L CC CC2 to GND2 ... –0.3V to 6V A Logic Inputs T1IN, T2IN, ON, DIN to GND ..–0.3V to (V B L + 0.3V) DE to GND2...–0.3V to (VCC2 + 0.3V) C GND Logic Outputs D R1OUT, R2OUT to GND ...–0.3V to (VL + 0.3V) E DOUT to GND2 ..–0.3V to (VCC2 + 0.3V) Driver Output Voltage F T1OUT, T2OUT to GND2 ...–15V to 15V G Receiver Input Voltage H R1IN, R2IN to GND2 ... –25V to 25V Operating Temperature Range (Note 4) I LTM2882C ...0°C ≤ T J A ≤ 70°C GND2 LTM2882I ... –40°C ≤ TA ≤ 85°C K LTM2882H .. –40°C ≤ TA ≤ 105°C L Maximum Internal Operating Temperature .. 125°C Storage Temperature Range .. –40°C to 125°C R2IN T2OUT R1IN T1OUT DOUT DE VCC2 Peak Package Body Reflow Temperature .. 245°C BGA PACKAGE LGA PACKAGE 32-PIN (15mm × 11.25mm × 3.42mm) 32-PIN (15mm × 11.25mm × 2.8mm) TJMAX = 125°C, TJMAX = 125°C, θJA = 30°C/W, θJCtop = 27.8°C/W, θJA = 29°C/W, θJCtop = 27.9°C/W, θJCbottom = 19.3°C/W, θJB = 24°C/W, θJCbottom = 18°C/W, θJB = 22.7°C/W, WEIGHT = 1.1g WEIGHT = 1.1g 2882fh 2 For more information www.linear.com/LTM2882 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS SWITCHING CHARACTERISTICS ISOLATION CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS PIN FUNCTIONS BLOCK DIAGRAM APPLICATIONS INFORMATION TYPICAL APPLICATIONS PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATIONS RELATED PARTS
