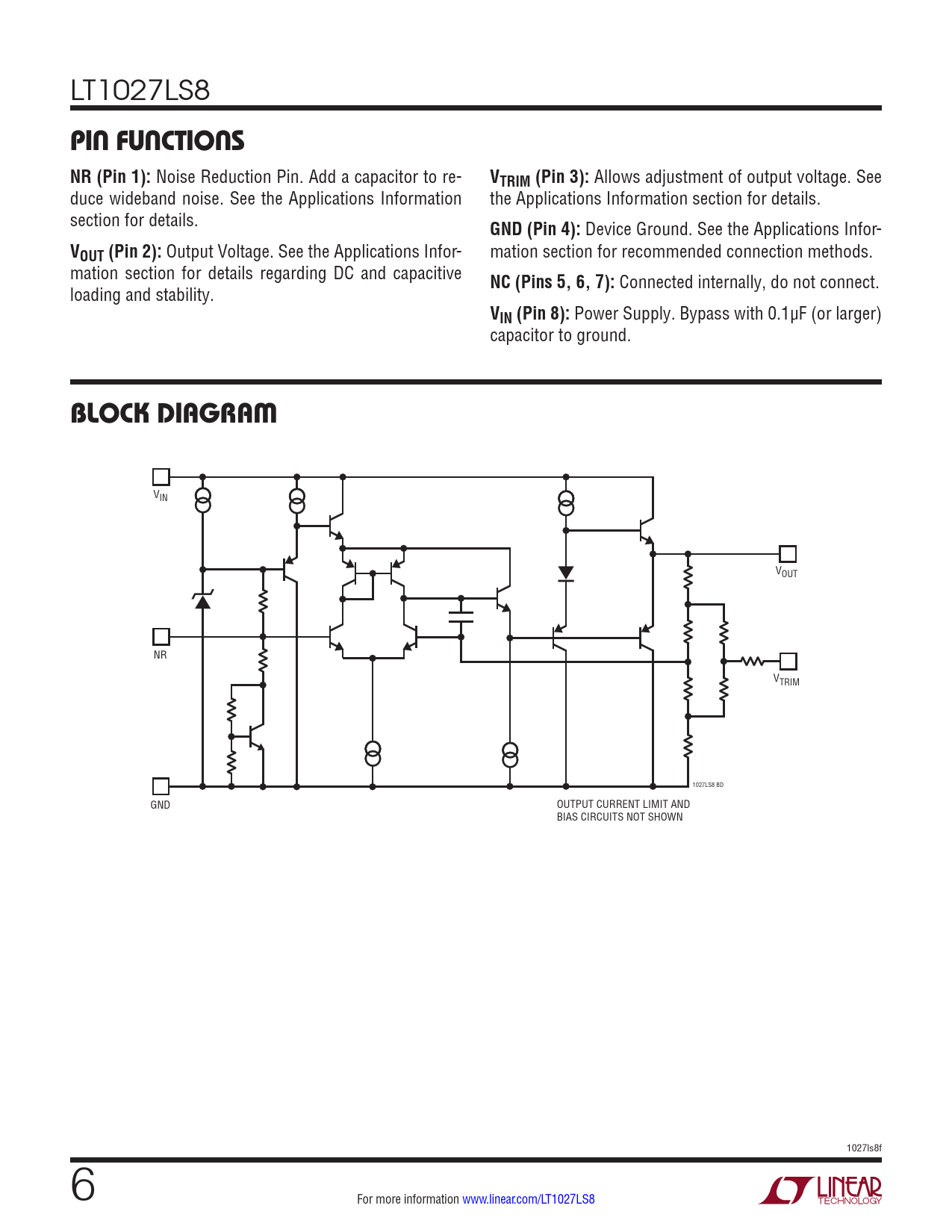

pin FuncTions NR (Pin 1):. VTRIM (Pin 3):. GND (Pin 4):. VOUT (Pin 2):. NC (Pins 5, 6, 7):. VIN (Pin 8):. block DiagraM
Model Line for this Datasheet
Text Version of Document
LT1027LS8
pin FuncTions NR (Pin 1):
Noise Reduction Pin. Add a capacitor to re-
VTRIM (Pin 3):
Allows adjustment of output voltage. See duce wideband noise. See the Applications Information the Applications Information section for details. section for details.
GND (Pin 4):
Device Ground. See the Applications Infor-
VOUT (Pin 2):
Output Voltage. See the Applications Infor- mation section for recommended connection methods. mation section for details regarding DC and capacitive
NC (Pins 5, 6, 7):
Connected internally, do not connect. loading and stability.
VIN (Pin 8):
Power Supply. Bypass with 0.1µF (or larger) capacitor to ground.
block DiagraM
VIN VOUT NR VTRIM 1027LS8 BD GND OUTPUT CURRENT LIMIT AND BIAS CIRCUITS NOT SHOWN 1027ls8f 6 For more information www.linear.com/LT1027LS8 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Typical Application Related Parts
