Datasheet ADR291W (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Low Noise Micropower Precision Voltage Reference (2.5 V) |
| Pages / Page | 8 / 6 — ADR291W. TERMINOLOGY Line Regulation. Temperature Coefficient. Load … |
| File Format / Size | PDF / 128 Kb |
| Document Language | English |

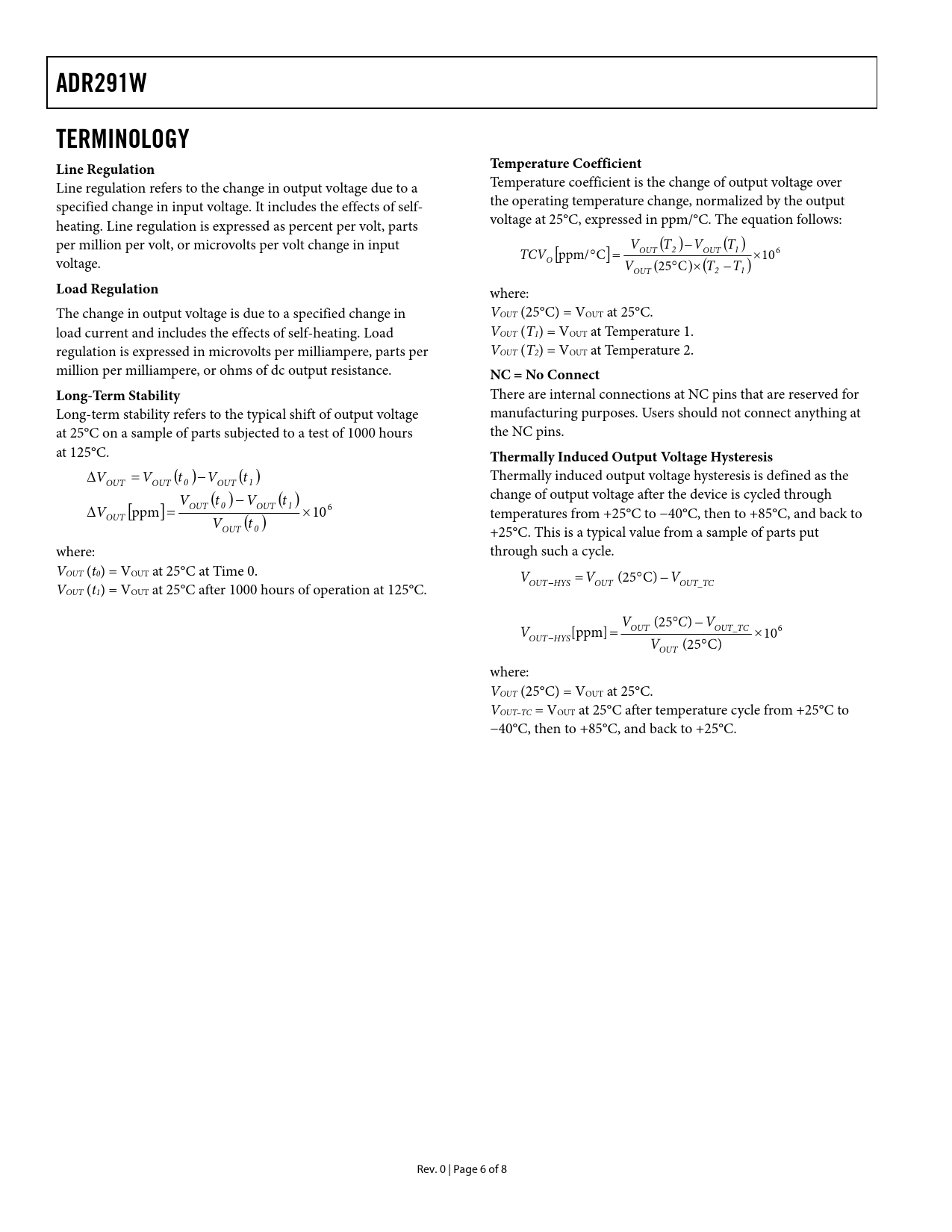

ADR291W. TERMINOLOGY Line Regulation. Temperature Coefficient. Load Regulation. NC = No Connect. Long-Term Stability
Model Line for this Datasheet
Text Version of Document
ADR291W TERMINOLOGY Line Regulation Temperature Coefficient
Line regulation refers to the change in output voltage due to a Temperature coefficient is the change of output voltage over specified change in input voltage. It includes the effects of self- the operating temperature change, normalized by the output heating. Line regulation is expressed as percent per volt, parts voltage at 25°C, expressed in ppm/°C. The equation follows: per million per volt, or microvolts per volt change in input TCV V T V T ppm/C OUT 2 OUT 1 6 10 voltage. O V 25CT T OUT 2 1
Load Regulation
where: The change in output voltage is due to a specified change in VOUT (25°C) = VOUT at 25°C. load current and includes the effects of self-heating. Load VOUT (T1) = VOUT at Temperature 1. regulation is expressed in microvolts per milliampere, parts per VOUT (T2) = VOUT at Temperature 2. million per milliampere, or ohms of dc output resistance.
NC = No Connect Long-Term Stability
There are internal connections at NC pins that are reserved for Long-term stability refers to the typical shift of output voltage manufacturing purposes. Users should not connect anything at at 25°C on a sample of parts subjected to a test of 1000 hours the NC pins. at 125°C.
Thermally Induced Output Voltage Hysteresis
V V t V t Thermally induced output voltage hysteresis is defined as the OUT OUT 0 OUT 1 V t V t change of output voltage after the device is cycled through V ppm OUT 0 OUT 1 6 OUT temperatures from +25°C to −40°C, then to +85°C, and back to V t OUT 0 10 +25°C. This is a typical value from a sample of parts put where: through such a cycle. VOUT (t0) = VOUT at 25°C at Time 0. V V 25 ( C) V OUT V HYS OUT OUT_TC OUT (t1) = VOUT at 25°C after 1000 hours of operation at 125°C. V 25 ( C) V OUT OUT_TC 6 V [ppm] 10 ΟUT HYS V 25 ( C) OUT where: VOUT (25°C) = VOUT at 25°C. VOUT–TC = VOUT at 25°C after temperature cycle from +25°C to −40°C, then to +85°C, and back to +25°C. Rev. 0 | Page 6 of 8 Document Outline Features Applications Connection Diagram General Description Revision History Specifications Electrical Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Terminology Outline Dimensions Ordering Guide
