| Manufacturer | Analog Devices |
| Description | Pin Programmable Precision Voltage Reference |
| Pages / Page | 12 / 3 — Data Sheet. AD584. SPECIFICATIONS. boldface. Table 1. AD584J. AD584K. … |
| Revision | C |
| File Format / Size | PDF / 520 Kb |
| Document Language | English |
Data Sheet. AD584. SPECIFICATIONS. boldface. Table 1. AD584J. AD584K. Model. Min. Typ. Max. Unit. ±30. ±10. ±20. ±15. ±7.5. ±3.5. 1.0. 0.002. 0.005
Model Line for this Datasheet
Text Version of Document
link to page 3

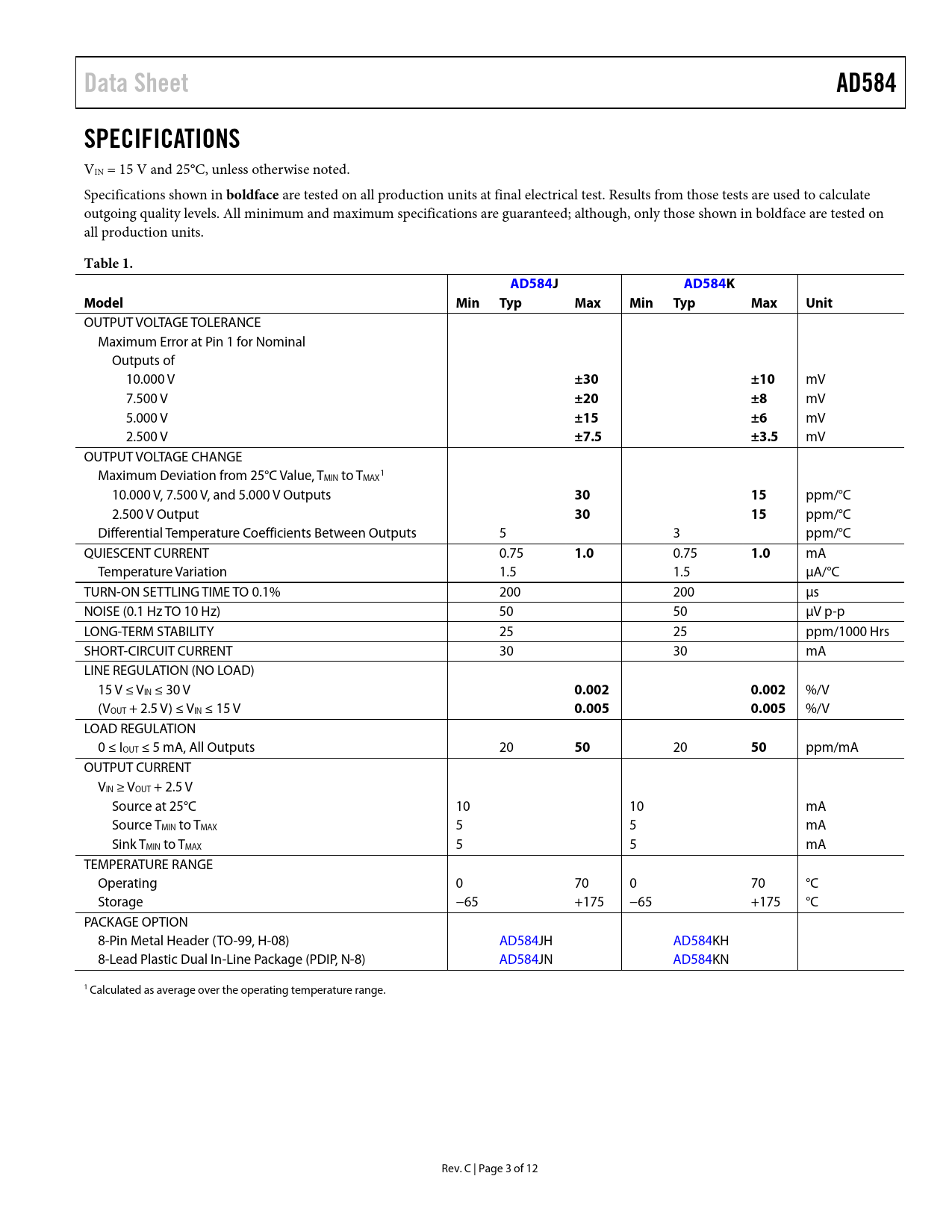

Data Sheet AD584 SPECIFICATIONS
VIN = 15 V and 25°C, unless otherwise noted. Specifications shown in
boldface
are tested on all production units at final electrical test. Results from those tests are used to calculate outgoing quality levels. All minimum and maximum specifications are guaranteed; although, only those shown in boldface are tested on all production units.
Table 1. AD584J AD584K Model Min Typ Max Min Typ Max Unit
OUTPUT VOLTAGE TOLERANCE Maximum Error at Pin 1 for Nominal Outputs of 10.000 V
±30 ±10
mV 7.500 V
±20 ±8
mV 5.000 V
±15 ±6
mV 2.500 V
±7.5 ±3.5
mV OUTPUT VOLTAGE CHANGE Maximum Deviation from 25°C Value, T 1 MIN to TMAX 10.000 V, 7.500 V, and 5.000 V Outputs
30 15
ppm/°C 2.500 V Output
30 15
ppm/°C Differential Temperature Coefficients Between Outputs 5 3 ppm/°C QUIESCENT CURRENT 0.75
1.0
0.75
1.0
mA Temperature Variation 1.5 1.5 µA/°C TURN-ON SETTLING TIME TO 0.1% 200 200 µs NOISE (0.1 Hz TO 10 Hz) 50 50 µV p-p LONG-TERM STABILITY 25 25 ppm/1000 Hrs SHORT-CIRCUIT CURRENT 30 30 mA LINE REGULATION (NO LOAD) 15 V ≤ VIN ≤ 30 V
0.002 0.002
%/V (VOUT + 2.5 V) ≤ VIN ≤ 15 V
0.005 0.005
%/V LOAD REGULATION 0 ≤ IOUT ≤ 5 mA, All Outputs 20
50
20
50
ppm/mA OUTPUT CURRENT VIN ≥ VOUT + 2.5 V Source at 25°C 10 10 mA Source TMIN to TMAX 5 5 mA Sink TMIN to TMAX 5 5 mA TEMPERATURE RANGE Operating 0 70 0 70 °C Storage −65 +175 −65 +175 °C PACKAGE OPTION 8-Pin Metal Header (TO-99, H-08) AD584JH AD584KH 8-Lead Plastic Dual In-Line Package (PDIP, N-8) AD584JN AD584KN 1 Calculated as average over the operating temperature range. Rev. C | Page 3 of 12 Document Outline Features General Description Pin Configurations Product Highlights Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Theory of Operation Applying the AD584 Performance over Temperature Output Current Characteristics Dynamic Performance Noise Filtering Using the Strobe Terminal Percision High Current Supply The AD584 as a Current Limiter Negative Reference Voltages from an AD584 10 V Reference with Multiplying CMOS DACs or ADCs Precision DAC Reference Outline Dimensions Ordering Guide
