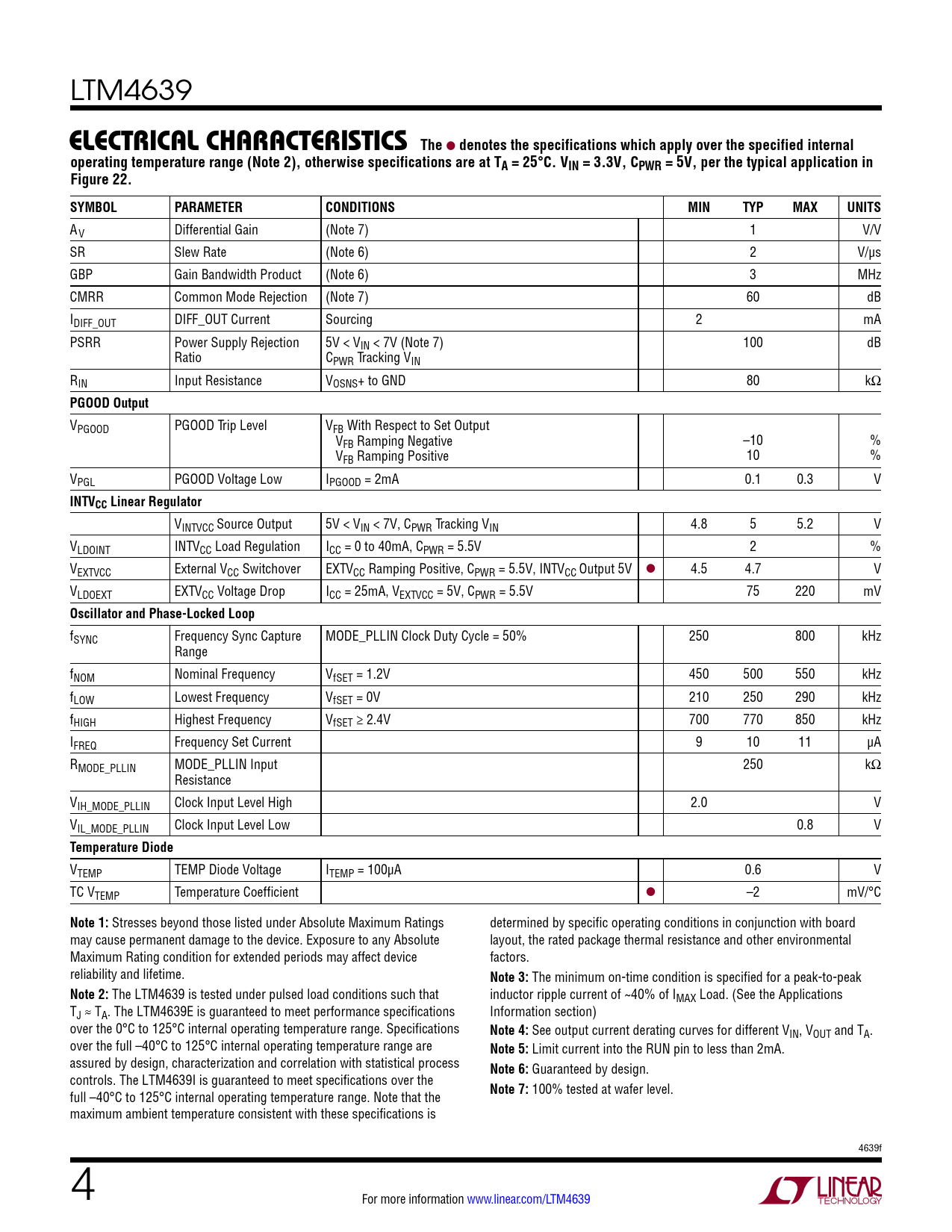

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the specified internal
Model Line for this Datasheet
Text Version of Document
LTM4639
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified internal operating temperature range (Note 2), otherwise specifications are at TA = 25°C. VIN = 3.3V, CPWR = 5V, per the typical application in Figure 22. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
AV Differential Gain (Note 7) 1 V/V SR Slew Rate (Note 6) 2 V/µs GBP Gain Bandwidth Product (Note 6) 3 MHz CMRR Common Mode Rejection (Note 7) 60 dB IDIFF_OUT DIFF_OUT Current Sourcing 2 mA PSRR Power Supply Rejection 5V < VIN < 7V (Note 7) 100 dB Ratio CPWR Tracking VIN RIN Input Resistance VOSNS+ to GND 80 kΩ
PGOOD Output
VPGOOD PGOOD Trip Level VFB With Respect to Set Output VFB Ramping Negative –10 % VFB Ramping Positive 10 % VPGL PGOOD Voltage Low IPGOOD = 2mA 0.1 0.3 V
INTVCC Linear Regulator
VINTVCC Source Output 5V < VIN < 7V, CPWR Tracking VIN 4.8 5 5.2 V VLDOINT INTVCC Load Regulation ICC = 0 to 40mA, CPWR = 5.5V 2 % VEXTVCC External VCC Switchover EXTVCC Ramping Positive, CPWR = 5.5V, INTVCC Output 5V l 4.5 4.7 V VLDOEXT EXTVCC Voltage Drop ICC = 25mA, VEXTVCC = 5V, CPWR = 5.5V 75 220 mV
Oscillator and Phase-Locked Loop
fSYNC Frequency Sync Capture MODE_PLLIN Clock Duty Cycle = 50% 250 800 kHz Range fNOM Nominal Frequency VfSET = 1.2V 450 500 550 kHz fLOW Lowest Frequency VfSET = 0V 210 250 290 kHz fHIGH Highest Frequency VfSET ≥ 2.4V 700 770 850 kHz IFREQ Frequency Set Current 9 10 11 µA RMODE_PLLIN MODE_PLLIN Input 250 kΩ Resistance VIH_MODE_PLLIN Clock Input Level High 2.0 V VIL_MODE_PLLIN Clock Input Level Low 0.8 V
Temperature Diode
VTEMP TEMP Diode Voltage ITEMP = 100µA 0.6 V TC VTEMP Temperature Coefficient l –2 mV/°C
