Datasheet ADP5091, ADP5092 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | Ultralow Power Energy Harvester PMU with MPPT and Charge Management |
| Pages / Page | 28 / 9 — Data Sheet. ADP5091/ADP5092. Pin No.1. ADP5091. ADP5092. Mnemonic … |
| Revision | A |
| File Format / Size | PDF / 931 Kb |
| Document Language | English |

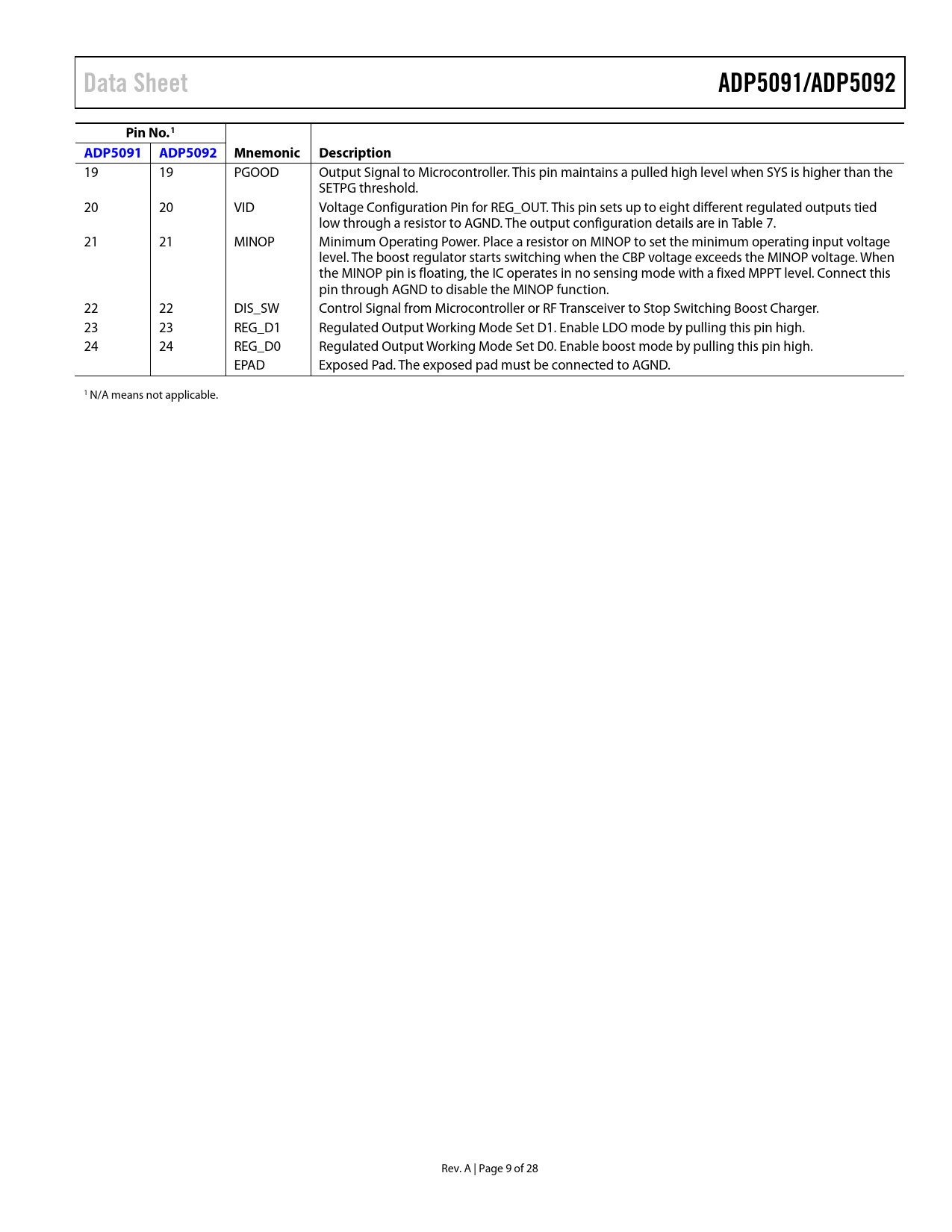

Data Sheet. ADP5091/ADP5092. Pin No.1. ADP5091. ADP5092. Mnemonic Description
Model Line for this Datasheet
Text Version of Document
link to page 17
Data Sheet ADP5091/ADP5092 Pin No.1 ADP5091 ADP5092 Mnemonic Description
19 19 PGOOD Output Signal to Microcontroller. This pin maintains a pulled high level when SYS is higher than the SETPG threshold. 20 20 VID Voltage Configuration Pin for REG_OUT. This pin sets up to eight different regulated outputs tied low through a resistor to AGND. The output configuration details are in Table 7. 21 21 MINOP Minimum Operating Power. Place a resistor on MINOP to set the minimum operating input voltage level. The boost regulator starts switching when the CBP voltage exceeds the MINOP voltage. When the MINOP pin is floating, the IC operates in no sensing mode with a fixed MPPT level. Connect this pin through AGND to disable the MINOP function. 22 22 DIS_SW Control Signal from Microcontroller or RF Transceiver to Stop Switching Boost Charger. 23 23 REG_D1 Regulated Output Working Mode Set D1. Enable LDO mode by pulling this pin high. 24 24 REG_D0 Regulated Output Working Mode Set D0. Enable boost mode by pulling this pin high. EPAD Exposed Pad. The exposed pad must be connected to AGND. 1 N/A means not applicable. Rev. A | Page 9 of 28 Document Outline FEATURES APPLICATIONS TYPICAL APPLICATION CIRCUIT GENERAL DESCRIPTION REVISION HISTORY DETAILED FUNCTIONAL BLOCK DIAGRAM SPECIFICATIONS REGULATED OUTPUT SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION FAST COLD START-UP CIRCUIT (VSYS < VSYS_TH, VIN > VIN_COLD) MAIN BOOST REGULATOR (VBAT_TERM > VSYS > VSYS_TH) VIN OPEN CIRCUIT AND MPPT MINIMUM OPERATION THRESHOLD FUNCTION DISABLING BOOST REGULATED OUTPUT WORKING MODE REG_D0 AND REG_D1 REGULATED OUTPUT CONFIGURATION REG_GOOD (ADP5092 ONLY) ENERGY STORAGE CHARGE MANAGEMENT BACKUP STORAGE PATH BACKUP AND BAT SELECTION THRESHOLD BATTERY OVERCHARGING PROTECTION BATTERY DISCHARGING PROTECTION POWER GOOD (PGOOD) POWER PATH WORKING FLOW CURRENT-LIMIT AND SHORT-CIRCUIT PROTECTION THERMAL SHUTDOWN APPLICATIONS INFORMATION ENERGY HARVESTER SELECTION ENERGY STORAGE ELEMENT SELECTION INDUCTOR SELECTION CAPACITOR SELECTION Input Capacitor SYS Capacitor REG_OUT Capacitor CBP Capacitor LAYOUT AND ASSEMBLY CONSIDERATIONS TYPICAL APPLICATION CIRCUITS FACTORY PROGRAMMABLE OPTIONS OUTLINE DIMENSIONS ORDERING GUIDE
