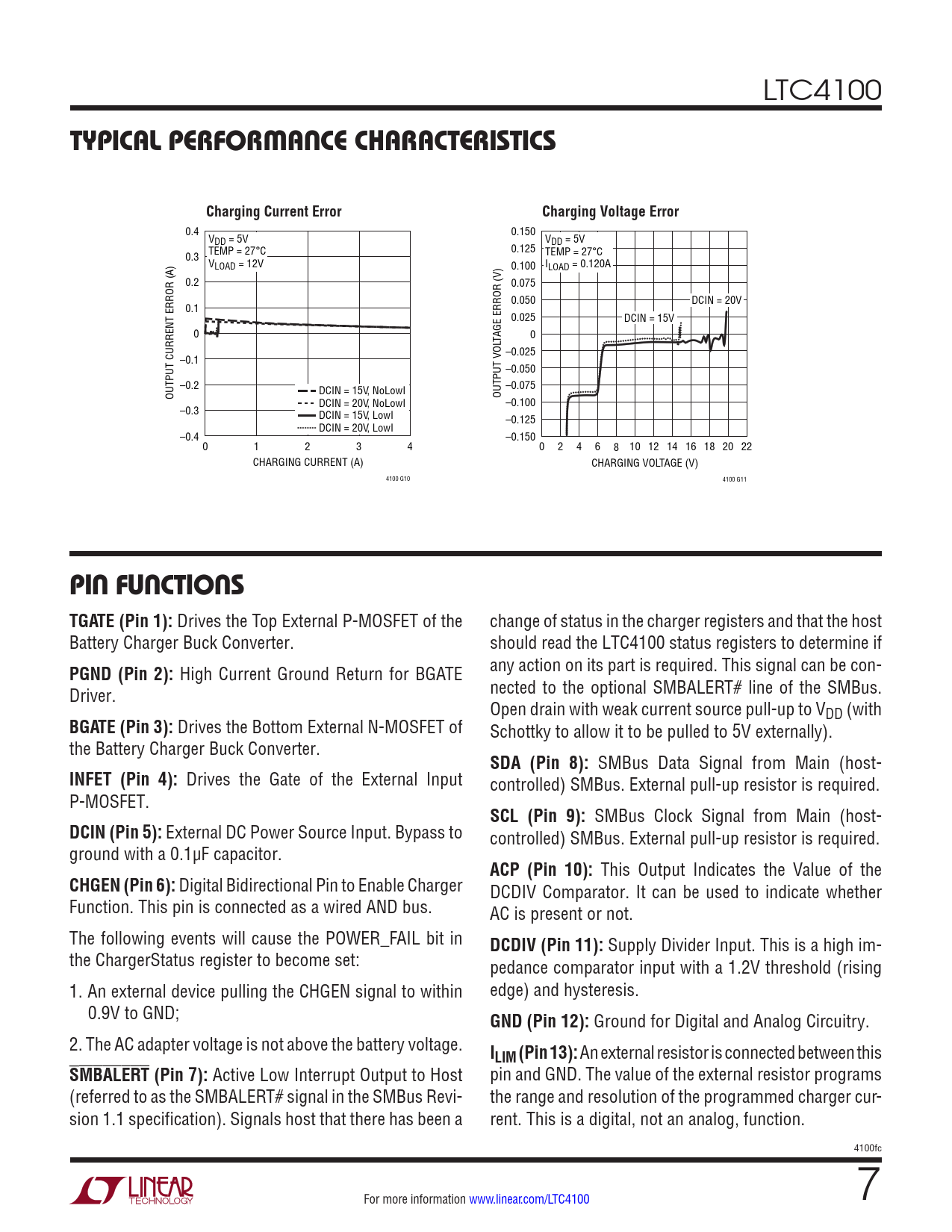

Typical perForMance characTerisTics. Charging Current Error. Charging Voltage Error. pin FuncTions TGATE (Pin 1):
Model Line for this Datasheet
Text Version of Document
LTC4100
Typical perForMance characTerisTics Charging Current Error Charging Voltage Error
0.4 0.150 VDD = 5V VDD = 5V 0.125 0.3 TEMP = 27°C TEMP = 27°C VLOAD = 12V 0.100 ILOAD = 0.120A 0.2 0.075 0.050 DCIN = 20V 0.1 0.025 DCIN = 15V 0 TAGE ERROR (V) 0 –0.025 –0.1 –0.050 –0.2 –0.075 OUTPUT CURRENT ERROR (A) DCIN = 15V, NoLowI OUTPUT VOL DCIN = 20V, NoLowI –0.100 –0.3 DCIN = 15V, LowI –0.125 DCIN = 20V, LowI –0.4 –0.150 0 1 2 3 4 0 2 4 6 8 10 12 14 16 18 20 22 CHARGING CURRENT (A) CHARGING VOLTAGE (V) 4100 G10 4100 G11
pin FuncTions TGATE (Pin 1):
Drives the Top External P-MOSFET of the change of status in the charger registers and that the host Battery Charger Buck Converter. should read the LTC4100 status registers to determine if
PGND (Pin 2):
High Current Ground Return for BGATE any action on its part is required. This signal can be con- Driver. nected to the optional SMBALERT# line of the SMBus. Open drain with weak current source pull-up to VDD (with
BGATE (Pin 3):
Drives the Bottom External N-MOSFET of Schottky to allow it to be pulled to 5V externally). the Battery Charger Buck Converter.
SDA (Pin 8):
SMBus Data Signal from Main (host-
INFET (Pin 4):
Drives the Gate of the External Input controlled) SMBus. External pull-up resistor is required. P-MOSFET.
SCL (Pin 9):
SMBus Clock Signal from Main (host-
DCIN (Pin 5):
External DC Power Source Input. Bypass to controlled) SMBus. External pull-up resistor is required. ground with a 0.1µF capacitor.
ACP (Pin 10):
This Output Indicates the Value of the
CHGEN (Pin 6):
Digital Bidirectional Pin to Enable Charger DCDIV Comparator. It can be used to indicate whether Function. This pin is connected as a wired AND bus. AC is present or not. The following events will cause the POWER_FAIL bit in
DCDIV (Pin 11):
Supply Divider Input. This is a high im- the ChargerStatus register to become set: pedance comparator input with a 1.2V threshold (rising 1. An external device pulling the CHGEN signal to within edge) and hysteresis. 0.9V to GND;
GND (Pin 12):
Ground for Digital and Analog Circuitry. 2. The AC adapter voltage is not above the battery voltage.
ILIM (Pin 13):
An external resistor is connected between this
SMBALERT (Pin 7):
Active Low Interrupt Output to Host pin and GND. The value of the external resistor programs (referred to as the SMBALERT# signal in the SMBus Revi- the range and resolution of the programmed charger cur- sion 1.1 specification). Signals host that there has been a rent. This is a digital, not an analog, function. 4100fc For more information www.linear.com/LTC4100 7
