Datasheet SRE (Songle Relay) - 2
| Manufacturer | Songle Relay |
| Description | Double Group Conversion Relay 1A/3A/5A |
| Pages / Page | 2 / 2 — SRE. Series. DOUBLE. GROUP. CONVERSION. RELAY. 1A/3A/5A. Safety. … |
| File Format / Size | PDF / 3.9 Mb |
| Document Language | English |
SRE. Series. DOUBLE. GROUP. CONVERSION. RELAY. 1A/3A/5A. Safety. Approval. Ratings. C. US. E167996. 5A. 125VAC. OUTLINE. DIMENSIONS. ,WIRING. DIAGRAM. AND. PC
Model Line for this Datasheet
- SRE-05VDC-FD-2A SRE-05VDC-FD-2B SRE-05VDC-FD-2C SRE-05VDC-FL-2A SRE-05VDC-FL-2B SRE-05VDC-FL-2C SRE-05VDC-SD-2A SRE-05VDC-SD-2B SRE-05VDC-SD-2C SRE-05VDC-SL-2A SRE-05VDC-SL-2B SRE-05VDC-SL-2C SRE-06VDC-FD-2A SRE-06VDC-FD-2B SRE-06VDC-FD-2C SRE-06VDC-FL-2A SRE-06VDC-FL-2B SRE-06VDC-FL-2C SRE-06VDC-SD-2A SRE-06VDC-SD-2B SRE-06VDC-SD-2C SRE-06VDC-SL-2A SRE-06VDC-SL-2B SRE-06VDC-SL-2C SRE-09VDC-FD-2A SRE-09VDC-FD-2B SRE-09VDC-FD-2C SRE-09VDC-FL-2A SRE-09VDC-FL-2B SRE-09VDC-FL-2C SRE-09VDC-SD-2A SRE-09VDC-SD-2B SRE-09VDC-SD-2C SRE-09VDC-SL-2A SRE-09VDC-SL-2B SRE-09VDC-SL-2C SRE-12VDC-FD-2A SRE-12VDC-FD-2B SRE-12VDC-FD-2C SRE-12VDC-FL-2A SRE-12VDC-FL-2B SRE-12VDC-FL-2C SRE-12VDC-SD-2A SRE-12VDC-SD-2B SRE-12VDC-SD-2C SRE-12VDC-SL-2A SRE-12VDC-SL-2B SRE-12VDC-SL-2C SRE-18VDC-FD-2A SRE-18VDC-FD-2B SRE-18VDC-FD-2C SRE-18VDC-FL-2A SRE-18VDC-FL-2B SRE-18VDC-FL-2C SRE-18VDC-SD-2A SRE-18VDC-SD-2B SRE-18VDC-SD-2C SRE-18VDC-SL-2A SRE-18VDC-SL-2B SRE-18VDC-SL-2C SRE-24VDC-FD-2A SRE-24VDC-FD-2B SRE-24VDC-FD-2C SRE-24VDC-FL-2A SRE-24VDC-FL-2B SRE-24VDC-FL-2C SRE-24VDC-SD-2A SRE-24VDC-SD-2B SRE-24VDC-SD-2C SRE-24VDC-SL-2A SRE-24VDC-SL-2B SRE-24VDC-SL-2C
Text Version of Document

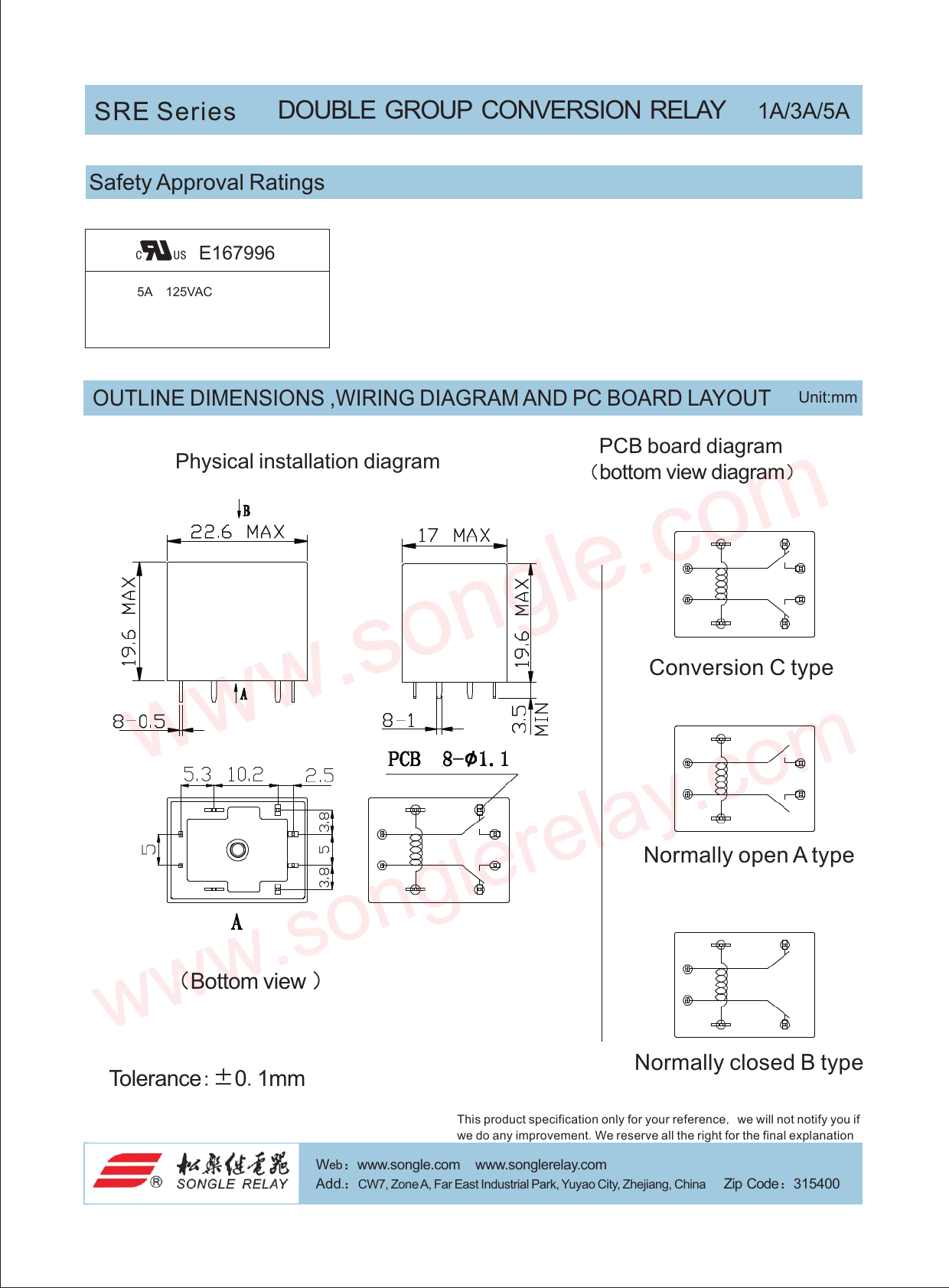

SRE Series DOUBLE GROUP CONVERSION RELAY 1A/3A/5A Safety Approval Ratings C US E167996 5A 125VAC OUTLINE DIMENSIONS ,WIRING DIAGRAM AND PC BOARD LAYOUT Unit:mm PCB board diagram Physical installation diagram （bottom view diagram） Conversion C type Normally open A type （Bottom view ） Normally closed B type Tolerance:±0.1mm This product specification only for your reference, we will not notify you if we do any improvement.We reserve all the right for the final explanation Web：www.songle.com www.songlerelay.com Email:sale@songle.com Web：www.songle.com www.songlerelay.com Add.：CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China i Z p Code：315400 Add.：CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China Zip Code：315400 Tel.： +86 574 62717777 62762658 62721968 a F x：+86 574 62721978 Document Outline 页 1 页 2
