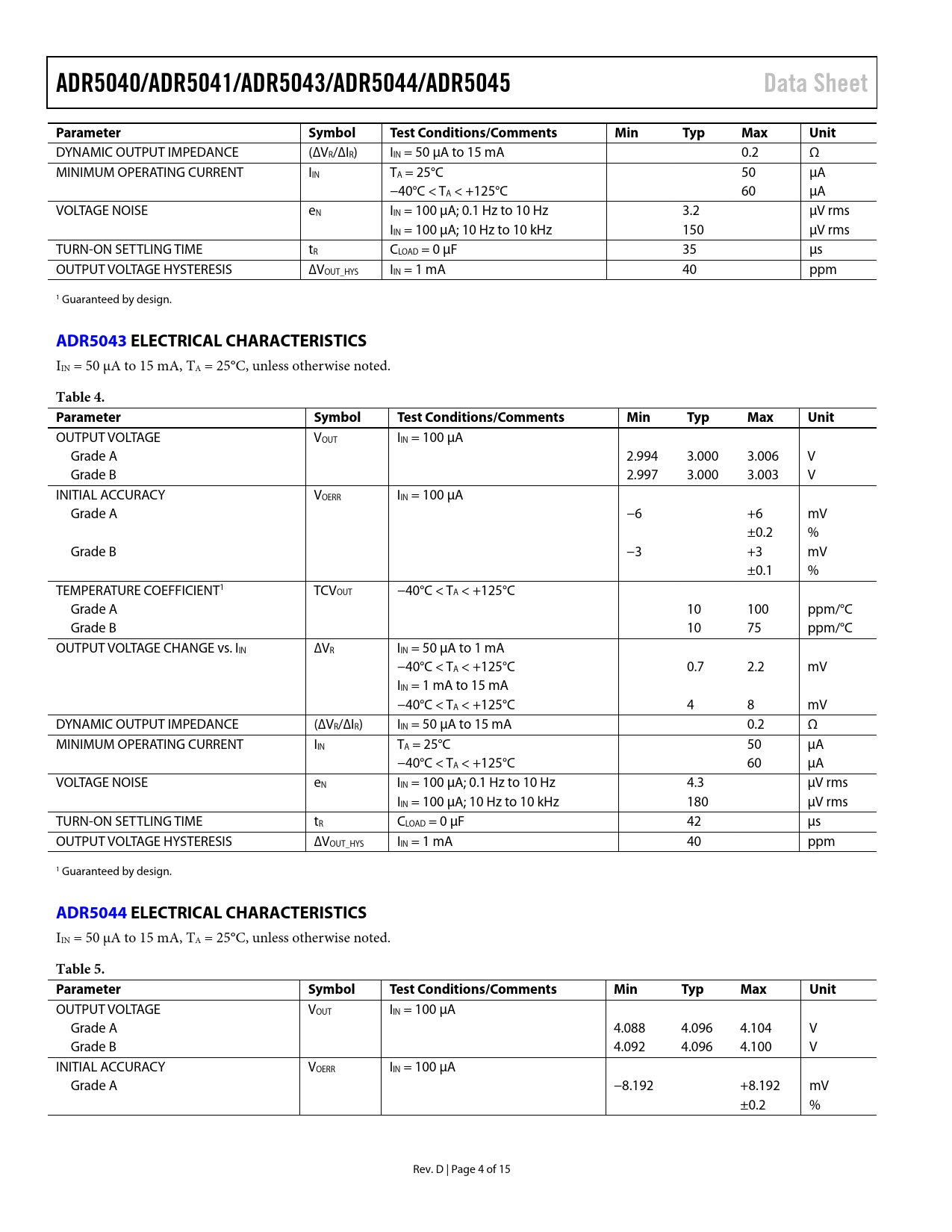

ADR5040/ADR5041/ADR5043/ADR5044/ADR5045. Data Sheet. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max. Unit. ADR5043
Model Line for this Datasheet
Text Version of Document
ADR5040/ADR5041/ADR5043/ADR5044/ADR5045 Data Sheet Parameter Symbol Test Conditions/Comments Min Typ Max Unit
DYNAMIC OUTPUT IMPEDANCE (∆VR/∆IR) IIN = 50 µA to 15 mA 0.2 Ω MINIMUM OPERATING CURRENT IIN TA = 25°C 50 µA −40°C < TA < +125°C 60 µA VOLTAGE NOISE eN IIN = 100 µA; 0.1 Hz to 10 Hz 3.2 µV rms IIN = 100 µA; 10 Hz to 10 kHz 150 µV rms TURN-ON SETTLING TIME tR CLOAD = 0 µF 35 µs OUTPUT VOLTAGE HYSTERESIS ∆VOUT_HYS IIN = 1 mA 40 ppm 1 Guaranteed by design.
ADR5043 ELECTRICAL CHARACTERISTICS
IIN = 50 µA to 15 mA, TA = 25°C, unless otherwise noted.
Table 4. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
OUTPUT VOLTAGE VOUT IIN = 100 µA Grade A 2.994 3.000 3.006 V Grade B 2.997 3.000 3.003 V INITIAL ACCURACY VOERR IIN = 100 µA Grade A −6 +6 mV ±0.2 % Grade B −3 +3 mV ±0.1 % TEMPERATURE COEFFICIENT1 TCVOUT −40°C < TA < +125°C Grade A 10 100 ppm/°C Grade B 10 75 ppm/°C OUTPUT VOLTAGE CHANGE vs. IIN ∆VR IIN = 50 µA to 1 mA −40°C < TA < +125°C 0.7 2.2 mV IIN = 1 mA to 15 mA −40°C < TA < +125°C 4 8 mV DYNAMIC OUTPUT IMPEDANCE (∆VR/∆IR) IIN = 50 µA to 15 mA 0.2 Ω MINIMUM OPERATING CURRENT IIN TA = 25°C 50 µA −40°C < TA < +125°C 60 µA VOLTAGE NOISE eN IIN = 100 µA; 0.1 Hz to 10 Hz 4.3 µV rms IIN = 100 µA; 10 Hz to 10 kHz 180 µV rms TURN-ON SETTLING TIME tR CLOAD = 0 µF 42 µs OUTPUT VOLTAGE HYSTERESIS ∆VOUT_HYS IIN = 1 mA 40 ppm 1 Guaranteed by design.
ADR5044 ELECTRICAL CHARACTERISTICS
IIN = 50 µA to 15 mA, TA = 25°C, unless otherwise noted.
Table 5. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
OUTPUT VOLTAGE VOUT IIN = 100 µA Grade A 4.088 4.096 4.104 V Grade B 4.092 4.096 4.100 V INITIAL ACCURACY VOERR IIN = 100 µA Grade A −8.192 +8.192 mV ±0.2 % Rev. D | Page 4 of 15 Document Outline Features Applications Pin Configuration General Description Revision History Specifications ADR5040 Electrical Characteristics ADR5041 Electrical Characteristics ADR5043 Electrical Characteristics ADR5044 Electrical Characteristics ADR5045 Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Terminology Theory of Operation Applications Information Precision Negative Voltage Reference Stacking the ADR5040/ADR5041/ADR5043/ADR5044/ADR5045 for User-Definable Outputs Adjustable Precision Voltage Source Programmable Current Source Outline Dimensions Ordering Guide Automotive Products
