Datasheet LT1034-1.2, LT1034-2.5 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | Micropower Dual Reference |
| Pages / Page | 8 / 2 — ABSOLUTE MAXIMUM RATINGS (Note 1). (OBSOLETE) ... PACKAGE/ORDER … |
| File Format / Size | PDF / 108 Kb |
| Document Language | English |
ABSOLUTE MAXIMUM RATINGS (Note 1). (OBSOLETE) ... PACKAGE/ORDER INFORMATION. OBSOLETE PACKAGE
Model Line for this Datasheet
- LT1034BCZ-1.2#PBF LT1034BCZ-1.2#TRPBF LT1034BCZ-2.5#PBF LT1034BCZ-2.5#TRPBF LT1034BIZ-1.2#PBF LT1034BIZ-1.2#TRPBF LT1034BIZ-2.5#PBF LT1034BIZ-2.5#TRPBF LT1034CS8-1.2#PBF LT1034CS8-1.2#TRPBF LT1034CS8-2.5#PBF LT1034CS8-2.5#TRPBF LT1034CZ-1.2#PBF LT1034CZ-1.2#TRPBF LT1034CZ-2.5#PBF LT1034CZ-2.5#TRPBF LT1034IS8-1.2#PBF LT1034IS8-1.2#TRPBF LT1034IS8-2.5#PBF LT1034IS8-2.5#TRPBF LT1034IZ-1.2#PBF LT1034IZ-1.2#TRPBF LT1034IZ-2.5#PBF LT1034IZ-2.5#TRPBF
Text Version of Document
LT1034-1.2/LT1034-2.5

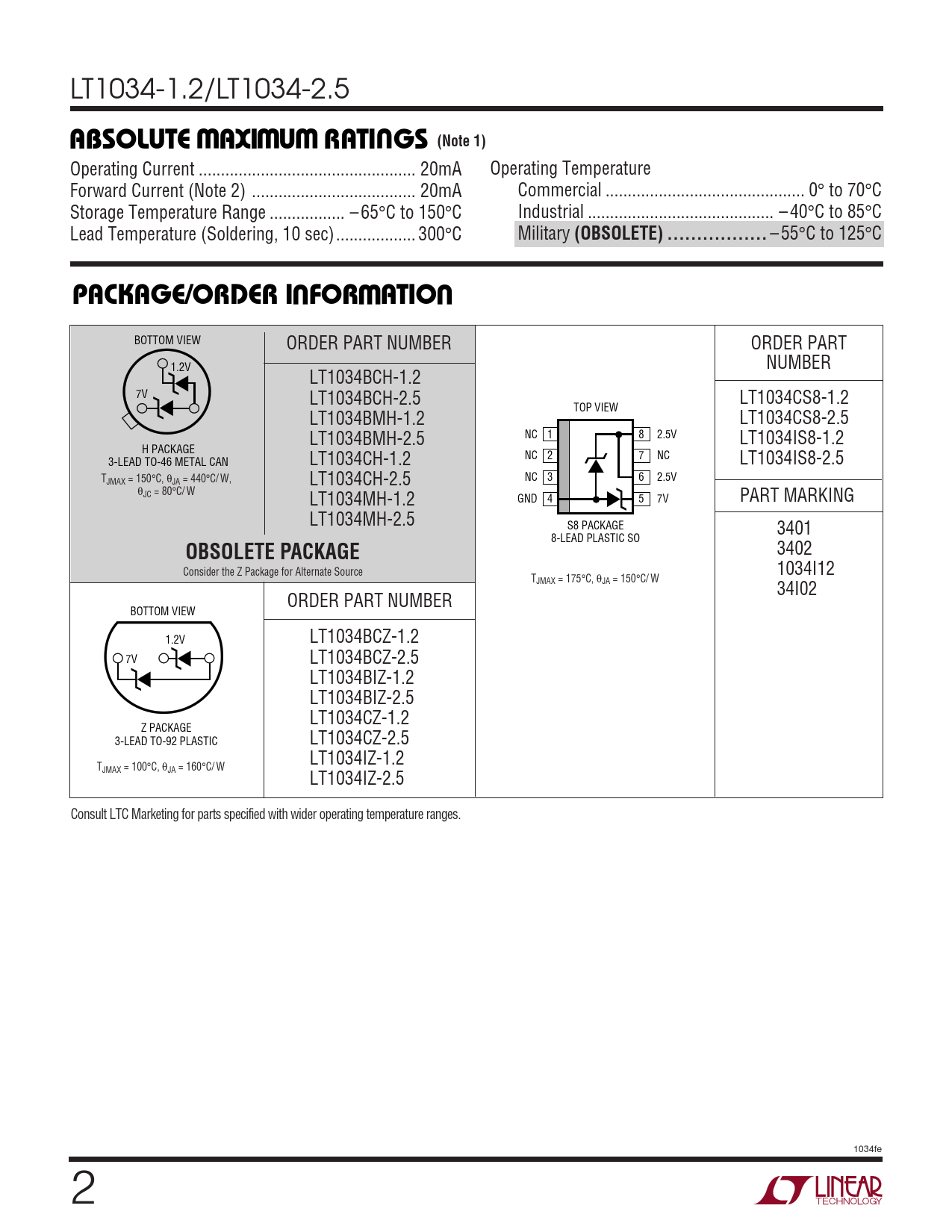

W W W U ABSOLUTE MAXIMUM RATINGS (Note 1)
Operating Current ... 20mA Operating Temperature Forward Current (Note 2) ... 20mA Commercial ... 0° to 70°C Storage Temperature Range ... – 65°C to 150°C Industrial .. – 40°C to 85°C Lead Temperature (Soldering, 10 sec).. 300°C Military
(OBSOLETE) ...
– 55°C to 125°C
U W U PACKAGE/ORDER INFORMATION
BOTTOM VIEW ORDER PART NUMBER ORDER PART 1.2V NUMBER LT1034BCH-1.2 7V LT1034BCH-2.5 LT1034CS8-1.2 TOP VIEW LT1034BMH-1.2 LT1034CS8-2.5 NC 1 8 2.5V LT1034BMH-2.5 LT1034IS8-1.2 H PACKAGE NC 2 7 NC 3-LEAD TO-46 METAL CAN LT1034CH-1.2 LT1034IS8-2.5 T NC 2.5V JMAX = 150°C, θJA = 440°C/ W, 3 6 LT1034CH-2.5 θJC = 80°C/ W GND 4 5 7V LT1034MH-1.2 PART MARKING LT1034MH-2.5 S8 PACKAGE 3401 8-LEAD PLASTIC SO 3402
OBSOLETE PACKAGE
Consider the Z Package for Alternate Source 1034I12 TJMAX = 175°C, θJA = 150°C/ W 34I02 ORDER PART NUMBER BOTTOM VIEW 1.2V LT1034BCZ-1.2 7V LT1034BCZ-2.5 LT1034BIZ-1.2 LT1034BIZ-2.5 LT1034CZ-1.2 Z PACKAGE 3-LEAD TO-92 PLASTIC LT1034CZ-2.5 LT1034IZ-1.2 TJMAX = 100°C, θJA = 160°C/ W LT1034IZ-2.5 Consult LTC Marketing for parts specified with wider operating temperature ranges. 1034fe 2
