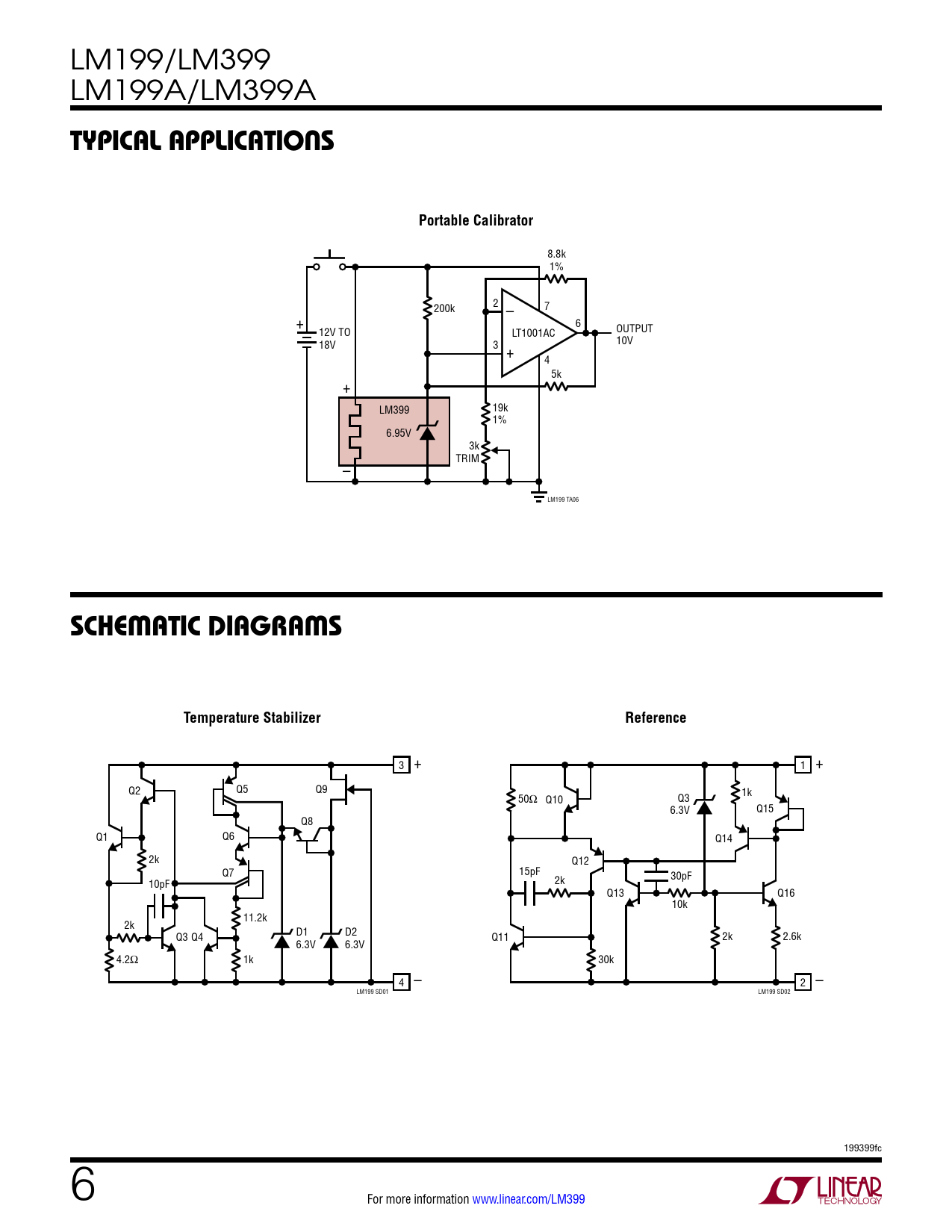

Typical applicaTions. Portable Calibrator. scheMaTic DiagraMs. Temperature Stabilizer. Reference
Model Line for this Datasheet
Text Version of Document
LM199/LM399 LM199A/LM399A
Typical applicaTions Portable Calibrator
8.8k 1% 200k 2 7 – + 6 OUTPUT 12V TO LT1001AC 10V 18V 3 + 4 5k + 19k LM399 1% 6.95V 3k TRIM – LM199 TA06
scheMaTic DiagraMs Temperature Stabilizer Reference
3 + 1 + Q2 Q5 Q9 50Ω 1k Q10 Q3 6.3V Q15 Q8 Q1 Q6 Q14 2k Q12 Q7 15pF 30pF 10pF 2k Q13 Q16 10k 11.2k 2k D1 D2 Q3 Q4 Q11 2k 2.6k 6.3V 6.3V 4.2Ω 1k 30k 4 – 2 – LM199 SD01 LM199 SD02 199399fc 6 For more information www.linear.com/LM399 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Functional Block Diagram Typical Applications Schematic Diagrams Package Description Revision History Related Parts
