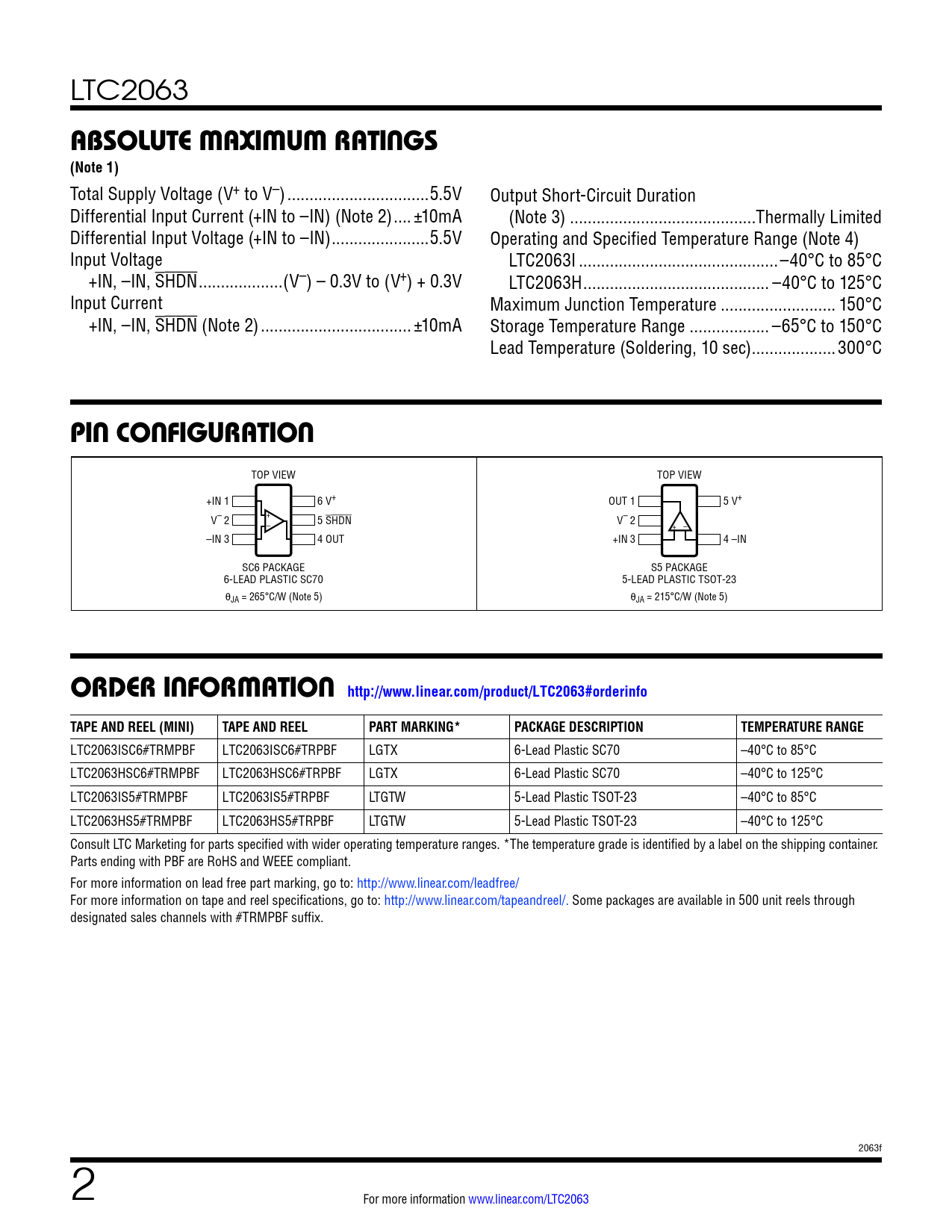

LTC2063
absoluTe MaxiMuM raTings (Note 1)
Total Supply Voltage (V+ to V–) ..5.5V Output Short-Circuit Duration Differential Input Current (+IN to –IN) (Note 2) .. ±10mA (Note 3) ..Thermally Limited Differential Input Voltage (+IN to –IN) ..5.5V Operating and Specified Temperature Range (Note 4) Input Voltage LTC2063I ...–40°C to 85°C +IN, –IN, SHDN ...(V–) – 0.3V to (V+) + 0.3V LTC2063H .. –40°C to 125°C Input Current Maximum Junction Temperature .. 150°C +IN, –IN, SHDN (Note 2) .. ±10mA Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
pin conFiguraTion
TOP VIEW TOP VIEW +IN 1 6 V+ OUT 1 5 V+ V– 2 + 5 SHDN V– 2 – + – –IN 3 4 OUT +IN 3 4 –IN SC6 PACKAGE S5 PACKAGE 6-LEAD PLASTIC SC70 5-LEAD PLASTIC TSOT-23 θJA = 265°C/W (Note 5) θJA = 215°C/W (Note 5)
orDer inForMaTion http://www.linear.com/product/LTC2063#orderinfo TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2063ISC6#TRMPBF LTC2063ISC6#TRPBF LGTX 6-Lead Plastic SC70 –40°C to 85°C LTC2063HSC6#TRMPBF LTC2063HSC6#TRPBF LGTX 6-Lead Plastic SC70 –40°C to 125°C LTC2063IS5#TRMPBF LTC2063IS5#TRPBF LTGTW 5-Lead Plastic TSOT-23 –40°C to 85°C LTC2063HS5#TRMPBF LTC2063HS5#TRPBF LTGTW 5-Lead Plastic TSOT-23 –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Parts ending with PBF are RoHS and WEEE compliant. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 2063f 2 For more information www.linear.com/LTC2063 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Typical Applications Typical Application Related Parts
