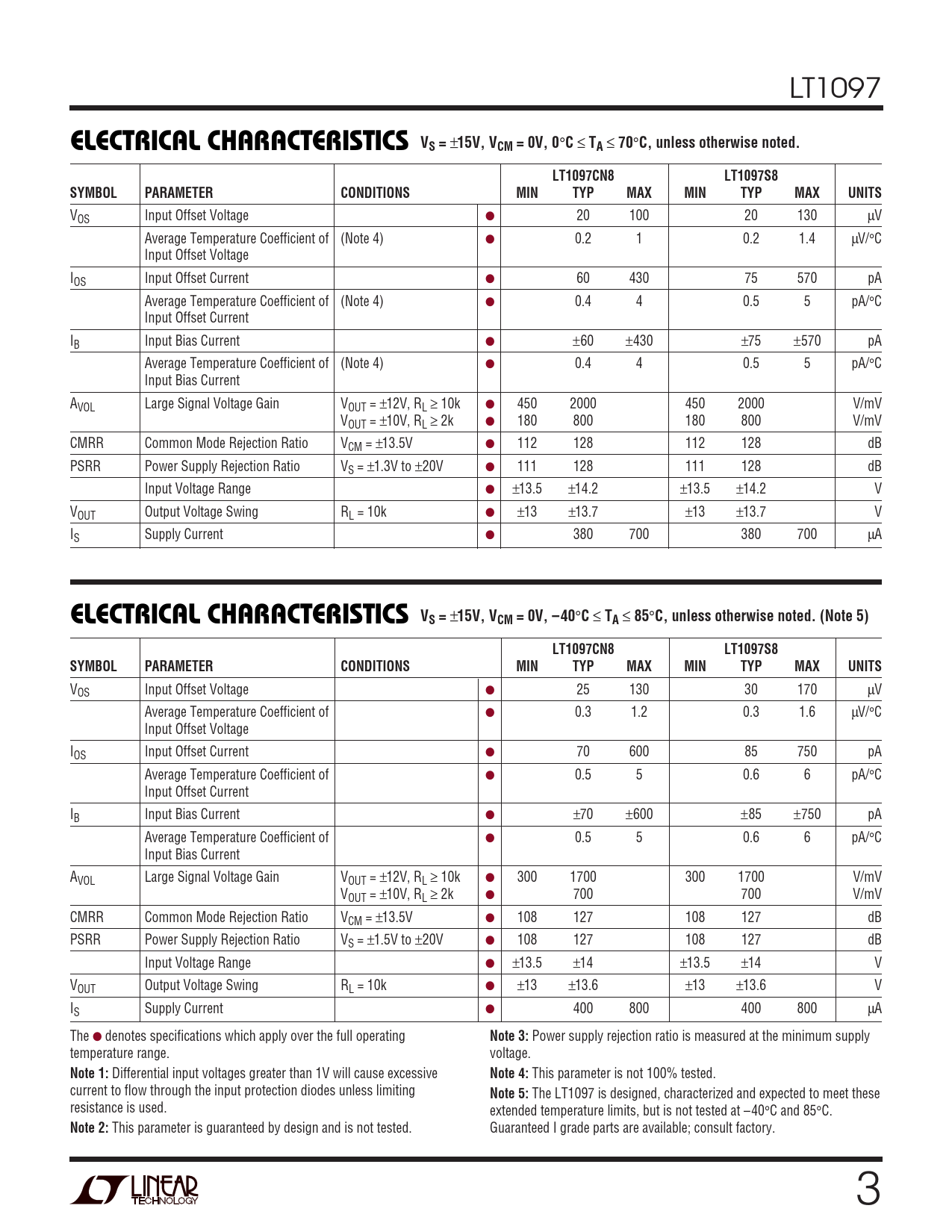

Datasheet LT1097 (Analog Devices) - 3

LT1097
ELECTRICAL CHARACTERISTICS VS =
±
15V, VCM = 0V, 0
°
C
≤
TA
≤
70
°
C, unless otherwise noted. LT1097CN8 LT1097S8 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage ● 20 100 20 130 µV Average Temperature Coefficient of (Note 4) ● 0.2 1 0.2 1.4 µV/°C Input Offset Voltage IOS Input Offset Current ● 60 430 75 570 pA Average Temperature Coefficient of (Note 4) ● 0.4 4 0.5 5 pA/°C Input Offset Current IB Input Bias Current ● ±60 ±430 ±75 ±570 pA Average Temperature Coefficient of (Note 4) ● 0.4 4 0.5 5 pA/°C Input Bias Current AVOL Large Signal Voltage Gain VOUT = ±12V, RL ≥ 10k ● 450 2000 450 2000 V/mV VOUT = ±10V, RL ≥ 2k ● 180 800 180 800 V/mV CMRR Common Mode Rejection Ratio VCM = ±13.5V ● 112 128 112 128 dB PSRR Power Supply Rejection Ratio VS = ±1.3V to ±20V ● 111 128 111 128 dB Input Voltage Range ● ±13.5 ±14.2 ±13.5 ±14.2 V VOUT Output Voltage Swing RL = 10k ● ±13 ±13.7 ±13 ±13.7 V IS Supply Current ● 380 700 380 700 µA
ELECTRICAL CHARACTERISTICS VS =
±
15V, VCM = 0V, –40
°
C
≤
TA
≤
85
°
C, unless otherwise noted. (Note 5) LT1097CN8 LT1097S8 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage ● 25 130 30 170 µV Average Temperature Coefficient of ● 0.3 1.2 0.3 1.6 µV/°C Input Offset Voltage IOS Input Offset Current ● 70 600 85 750 pA Average Temperature Coefficient of ● 0.5 5 0.6 6 pA/°C Input Offset Current IB Input Bias Current ● ±70 ±600 ±85 ±750 pA Average Temperature Coefficient of ● 0.5 5 0.6 6 pA/°C Input Bias Current AVOL Large Signal Voltage Gain VOUT = ±12V, RL ≥ 10k ● 300 1700 300 1700 V/mV VOUT = ±10V, RL ≥ 2k ● 700 700 V/mV CMRR Common Mode Rejection Ratio VCM = ±13.5V ● 108 127 108 127 dB PSRR Power Supply Rejection Ratio VS = ±1.5V to ±20V ● 108 127 108 127 dB Input Voltage Range ● ±13.5 ±14 ±13.5 ±14 V VOUT Output Voltage Swing RL = 10k ● ±13 ±13.6 ±13 ±13.6 V IS Supply Current ● 400 800 400 800 µA The ● denotes specifications which apply over the full operating
Note 3:
Power supply rejection ratio is measured at the minimum supply temperature range. voltage.
Note 1:
Differential input voltages greater than 1V will cause excessive
Note 4:
This parameter is not 100% tested. current to flow through the input protection diodes unless limiting
Note 5:
The LT1097 is designed, characterized and expected to meet these resistance is used. extended temperature limits, but is not tested at –40°C and 85°C.
Note 2:
This parameter is guaranteed by design and is not tested. Guaranteed I grade parts are available; consult factory. 3
