Datasheet AD8366 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | DC to 600 MHz, Dual-Digital Variable Gain Amplifiers |
| Pages / Page | 28 / 6 — AD8366. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. … |
| Revision | B |
| File Format / Size | PDF / 893 Kb |
| Document Language | English |

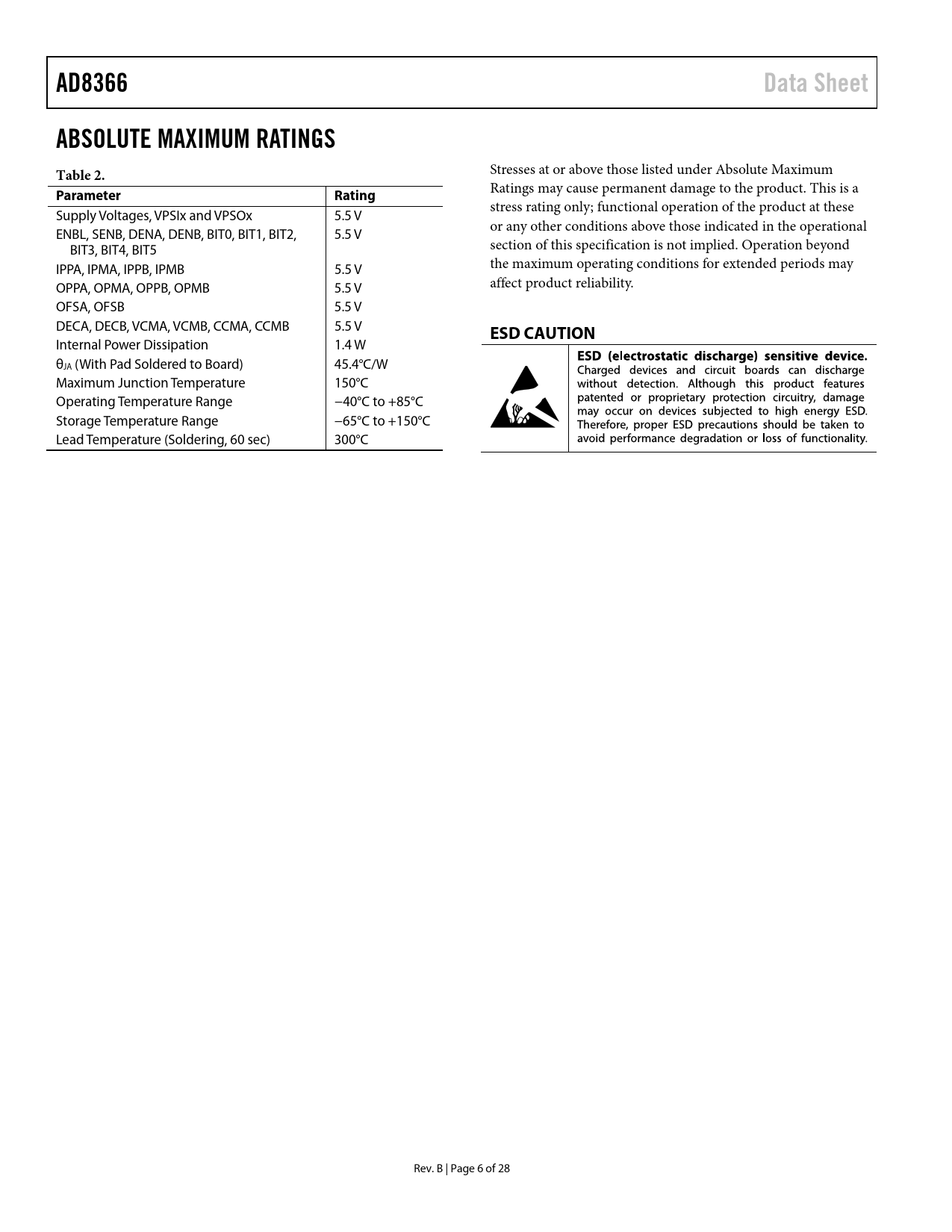

AD8366. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
AD8366 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltages, VPSIx and VPSOx 5.5 V or any other conditions above those indicated in the operational ENBL, SENB, DENA, DENB, BIT0, BIT1, BIT2, 5.5 V BIT3, BIT4, BIT5 section of this specification is not implied. Operation beyond IPPA, IPMA, IPPB, IPMB 5.5 V the maximum operating conditions for extended periods may OPPA, OPMA, OPPB, OPMB 5.5 V affect product reliability. OFSA, OFSB 5.5 V DECA, DECB, VCMA, VCMB, CCMA, CCMB 5.5 V
ESD CAUTION
Internal Power Dissipation 1.4 W θJA (With Pad Soldered to Board) 45.4°C/W Maximum Junction Temperature 150°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C Rev. B | Page 6 of 28 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS PARALLEL AND SERIAL INTERFACE TIMING ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION INPUTS OUTPUTS OUTPUT DIFFERENTIAL OFFSET CORRECTION OUTPUT COMMON-MODE CONTROL GAIN CONTROL INTERFACE APPLICATIONS INFORMATION BASIC CONNECTIONS DIRECT CONVERSION RECEIVER DESIGN QUADRATURE ERRORS AND IMAGE REJECTION LOW FREQUENCY IMD3 PERFORMANCE BASEBAND INTERFACE CHARACTERIZATION SETUPS EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
