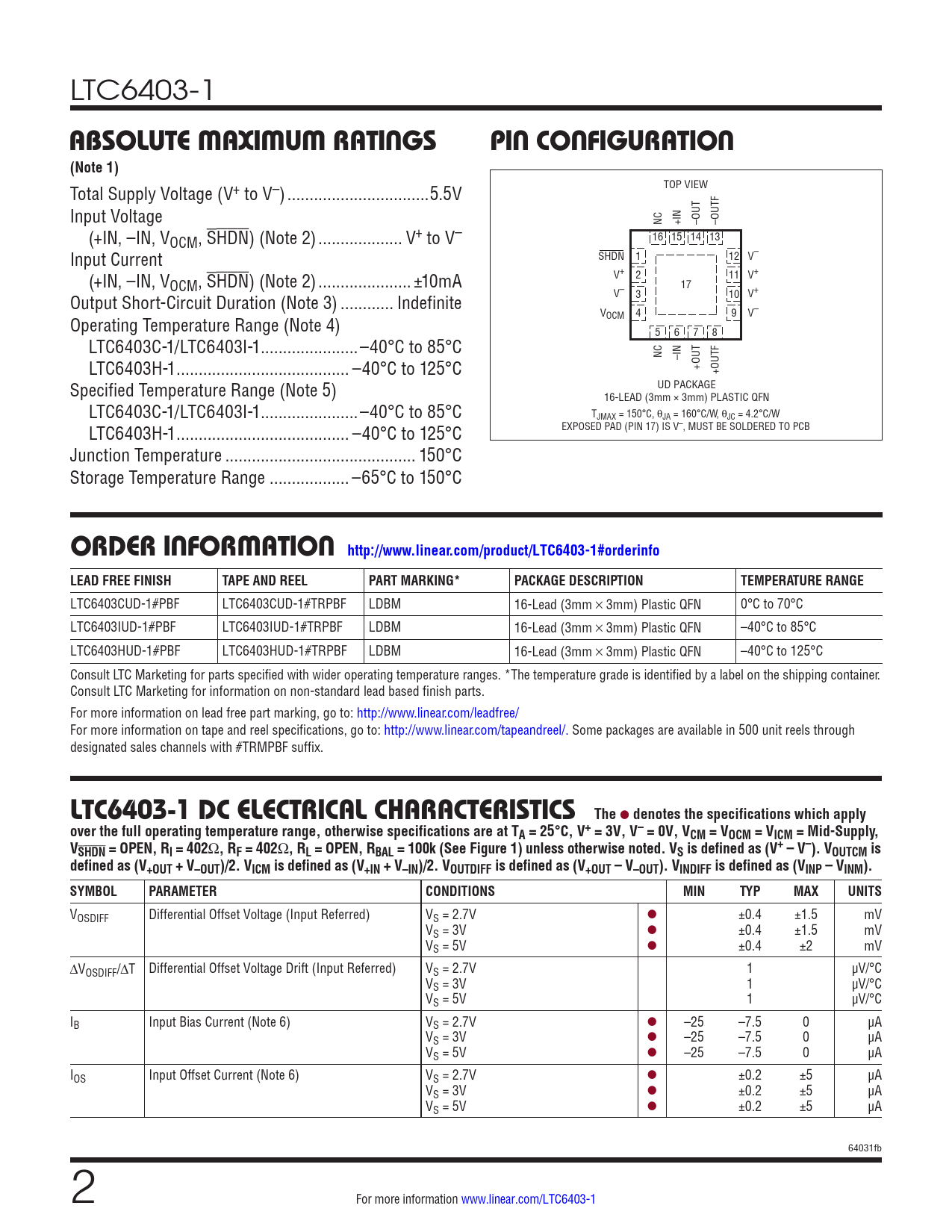

LTC6403-1
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Total Supply Voltage (V+ to V–) ..5.5V TOP VIEW Input Voltage NC +IN –OUT –OUTF (+IN, –IN, VOCM, SHDN) (Note 2) ... V+ to V– 16 15 14 13 Input Current SHDN 1 12 V– (+IN, –IN, V V+ 2 11 V+ OCM, SHDN) (Note 2) ... ±10mA 17 Output Short-Circuit Duration (Note 3) .. Indefinite V– 3 10 V+ V V– Operating Temperature Range (Note 4) OCM 4 9 5 6 7 8 LTC6403C-1/LTC6403I-1..–40°C to 85°C NC –IN LTC6403H-1 ... –40°C to 125°C +OUT +OUTF Specified Temperature Range (Note 5) UD PACKAGE 16-LEAD (3mm × 3mm) PLASTIC QFN LTC6403C-1/LTC6403I-1..–40°C to 85°C TJMAX = 150°C, θJA = 160°C/W, θJC = 4.2°C/W LTC6403H-1 ... –40°C to 125°C EXPOSED PAD (PIN 17) IS V–, MUST BE SOLDERED TO PCB Junction Temperature ... 150°C Storage Temperature Range .. –65°C to 150°C
ORDER INFORMATION http://www.linear.com/product/LTC6403-1#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC6403CUD-1#PBF LTC6403CUD-1#TRPBF LDBM 16-Lead (3mm × 3mm) Plastic QFN 0°C to 70°C LTC6403IUD-1#PBF LTC6403IUD-1#TRPBF LDBM 16-Lead (3mm × 3mm) Plastic QFN –40°C to 85°C LTC6403HUD-1#PBF LTC6403HUD-1#TRPBF LDBM 16-Lead (3mm × 3mm) Plastic QFN –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
LTC6403-1 DC ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C, V+ = 3V, V– = 0V, VCM = VOCM = VICM = Mid-Supply, VSHDN = OPEN, RI = 402
Ω
, RF = 402
Ω
, RL = OPEN, RBAL = 100k (See Figure 1) unless otherwise noted. VS is defined as (V+ – V–). VOUTCM is defined as (V+OUT + V–OUT)/2. VICM is defined as (V+IN + V–IN)/2. VOUTDIFF is defined as (V+OUT – V–OUT). VINDIFF is defined as (VINP – VINM). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOSDIFF Differential Offset Voltage (Input Referred) VS = 2.7V l ±0.4 ±1.5 mV VS = 3V l ±0.4 ±1.5 mV VS = 5V l ±0.4 ±2 mV ΔVOSDIFF/ΔT Differential Offset Voltage Drift (Input Referred) VS = 2.7V 1 µV/°C VS = 3V 1 µV/°C VS = 5V 1 µV/°C IB Input Bias Current (Note 6) VS = 2.7V l –25 –7.5 0 µA VS = 3V l –25 –7.5 0 µA VS = 5V l –25 –7.5 0 µA IOS Input Offset Current (Note 6) VS = 2.7V l ±0.2 ±5 µA VS = 3V l ±0.2 ±5 µA VS = 5V l ±0.2 ±5 µA 64031fb 2 For more information www.linear.com/LTC6403-1
