Datasheet LT6600-2.5 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | Very Low Noise, Differential Amplifi er and 2.5MHz Lowpass Filter |
| Pages / Page | 16 / 2 — ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION. … |
| File Format / Size | PDF / 233 Kb |
| Document Language | English |
ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Model Line for this Datasheet
Text Version of Document

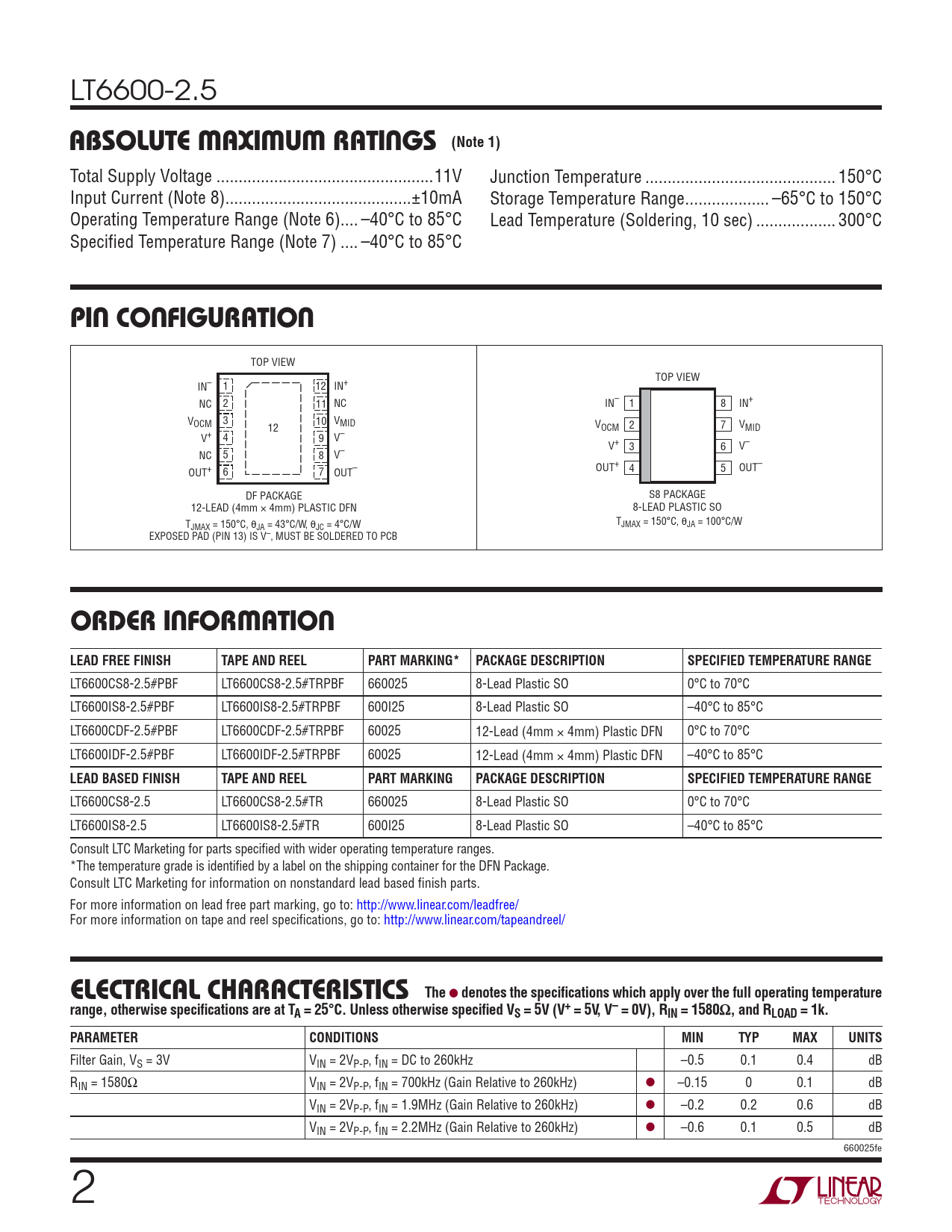

LT6600-2.5
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage ...11V Junction Temperature ... 150°C Input Current (Note 8) ..±10mA Storage Temperature Range ... –65°C to 150°C Operating Temperature Range (Note 6).. –40°C to 85°C Lead Temperature (Soldering, 10 sec) .. 300°C Specifi ed Temperature Range (Note 7) .. –40°C to 85°C
PIN CONFIGURATION
TOP VIEW TOP VIEW IN– 1 12 IN+ NC 2 11 NC IN– 1 8 IN+ V 3 10 V OCM 12 MID V 2 7 V OCM MID V+ 4 9 V– V+ 3 6 V– NC 5 8 V– OUT+ 4 5 OUT– OUT+ 6 7 OUT– DF PACKAGE S8 PACKAGE 12-LEAD (4mm × 4mm) PLASTIC DFN 8-LEAD PLASTIC SO T T JMAX = 150°C, θJA = 43°C/W, θJC = 4°C/W JMAX = 150°C, θJA = 100°C/W EXPOSED PAD (PIN 13) IS V–, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6600CS8-2.5#PBF LT6600CS8-2.5#TRPBF 660025 8-Lead Plastic SO 0°C to 70°C LT6600IS8-2.5#PBF LT6600IS8-2.5#TRPBF 600I25 8-Lead Plastic SO –40°C to 85°C LT6600CDF-2.5#PBF LT6600CDF-2.5#TRPBF 60025 12-Lead (4mm × 4mm) Plastic DFN 0°C to 70°C LT6600IDF-2.5#PBF LT6600IDF-2.5#TRPBF 60025 12-Lead (4mm × 4mm) Plastic DFN –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6600CS8-2.5 LT6600CS8-2.5#TR 660025 8-Lead Plastic SO 0°C to 70°C LT6600IS8-2.5 LT6600IS8-2.5#TR 600I25 8-Lead Plastic SO –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container for the DFN Package. Consult LTC Marketing for information on nonstandard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. Unless otherwise specifi ed VS = 5V (V+ = 5V, V– = 0V), RIN = 1580Ω, and RLOAD = 1k. PARAMETER CONDITIONS MIN TYP MAX UNITS
Filter Gain, VS = 3V VIN = 2VP-P, fIN = DC to 260kHz –0.5 0.1 0.4 dB RIN = 1580Ω VIN = 2VP-P, fIN = 700kHz (Gain Relative to 260kHz) l –0.15 0 0.1 dB VIN = 2VP-P, fIN = 1.9MHz (Gain Relative to 260kHz) l –0.2 0.2 0.6 dB VIN = 2VP-P, fIN = 2.2MHz (Gain Relative to 260kHz) l –0.6 0.1 0.5 dB 660025fe 2
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage ...11V Junction Temperature ... 150°C Input Current (Note 8) ..±10mA Storage Temperature Range ... –65°C to 150°C Operating Temperature Range (Note 6).. –40°C to 85°C Lead Temperature (Soldering, 10 sec) .. 300°C Specifi ed Temperature Range (Note 7) .. –40°C to 85°C
PIN CONFIGURATION
TOP VIEW TOP VIEW IN– 1 12 IN+ NC 2 11 NC IN– 1 8 IN+ V 3 10 V OCM 12 MID V 2 7 V OCM MID V+ 4 9 V– V+ 3 6 V– NC 5 8 V– OUT+ 4 5 OUT– OUT+ 6 7 OUT– DF PACKAGE S8 PACKAGE 12-LEAD (4mm × 4mm) PLASTIC DFN 8-LEAD PLASTIC SO T T JMAX = 150°C, θJA = 43°C/W, θJC = 4°C/W JMAX = 150°C, θJA = 100°C/W EXPOSED PAD (PIN 13) IS V–, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6600CS8-2.5#PBF LT6600CS8-2.5#TRPBF 660025 8-Lead Plastic SO 0°C to 70°C LT6600IS8-2.5#PBF LT6600IS8-2.5#TRPBF 600I25 8-Lead Plastic SO –40°C to 85°C LT6600CDF-2.5#PBF LT6600CDF-2.5#TRPBF 60025 12-Lead (4mm × 4mm) Plastic DFN 0°C to 70°C LT6600IDF-2.5#PBF LT6600IDF-2.5#TRPBF 60025 12-Lead (4mm × 4mm) Plastic DFN –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6600CS8-2.5 LT6600CS8-2.5#TR 660025 8-Lead Plastic SO 0°C to 70°C LT6600IS8-2.5 LT6600IS8-2.5#TR 600I25 8-Lead Plastic SO –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container for the DFN Package. Consult LTC Marketing for information on nonstandard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. Unless otherwise specifi ed VS = 5V (V+ = 5V, V– = 0V), RIN = 1580Ω, and RLOAD = 1k. PARAMETER CONDITIONS MIN TYP MAX UNITS
Filter Gain, VS = 3V VIN = 2VP-P, fIN = DC to 260kHz –0.5 0.1 0.4 dB RIN = 1580Ω VIN = 2VP-P, fIN = 700kHz (Gain Relative to 260kHz) l –0.15 0 0.1 dB VIN = 2VP-P, fIN = 1.9MHz (Gain Relative to 260kHz) l –0.2 0.2 0.6 dB VIN = 2VP-P, fIN = 2.2MHz (Gain Relative to 260kHz) l –0.6 0.1 0.5 dB 660025fe 2
