DescriptionLow Distortion Differential RF/IF Amplifier
Pages / Page12 / 4 — AD8351-EP. Enhanced Product. Parameter. Test Conditions/Comments. Min …
RevisionA
File Format / SizePDF / 378 Kb
Document LanguageEnglish

AD8351-EP. Enhanced Product. Parameter. Test Conditions/Comments. Min Typ. Max Unit

AD8351-EP Enhanced Product Parameter Test Conditions/Comments Min Typ Max Unit

Model Line for this Datasheet

Text Version of Document

AD8351-EP Enhanced Product Parameter Test Conditions/Comments Min Typ Max Unit

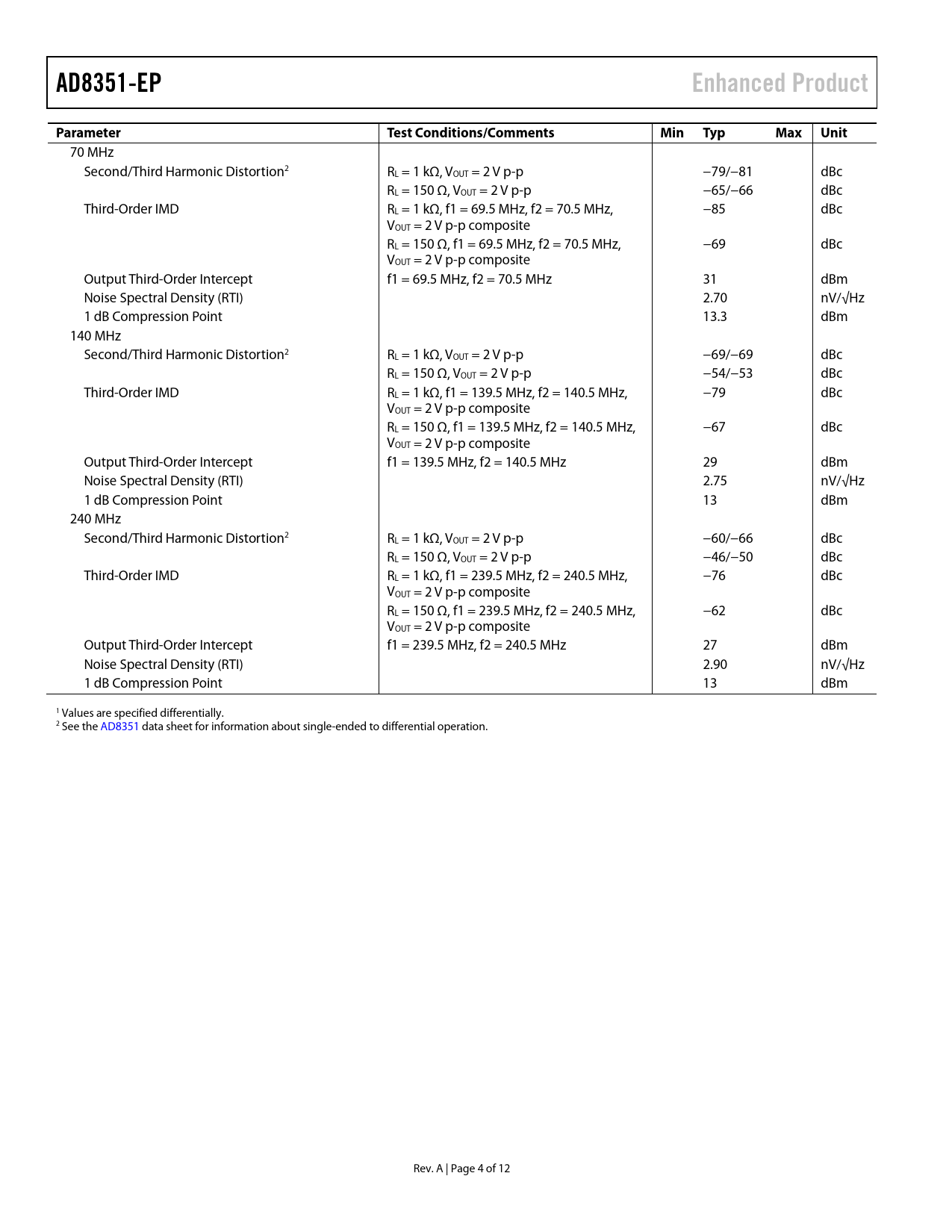

70 MHz Second/Third Harmonic Distortion2 RL = 1 kΩ, VOUT = 2 V p-p −79/−81 dBc RL = 150 Ω, VOUT = 2 V p-p −65/−66 dBc Third-Order IMD RL = 1 kΩ, f1 = 69.5 MHz, f2 = 70.5 MHz, −85 dBc VOUT = 2 V p-p composite RL = 150 Ω, f1 = 69.5 MHz, f2 = 70.5 MHz, −69 dBc VOUT = 2 V p-p composite Output Third-Order Intercept f1 = 69.5 MHz, f2 = 70.5 MHz 31 dBm Noise Spectral Density (RTI) 2.70 nV/√Hz 1 dB Compression Point 13.3 dBm 140 MHz Second/Third Harmonic Distortion2 RL = 1 kΩ, VOUT = 2 V p-p −69/−69 dBc RL = 150 Ω, VOUT = 2 V p-p −54/−53 dBc Third-Order IMD RL = 1 kΩ, f1 = 139.5 MHz, f2 = 140.5 MHz, −79 dBc VOUT = 2 V p-p composite RL = 150 Ω, f1 = 139.5 MHz, f2 = 140.5 MHz, −67 dBc VOUT = 2 V p-p composite Output Third-Order Intercept f1 = 139.5 MHz, f2 = 140.5 MHz 29 dBm Noise Spectral Density (RTI) 2.75 nV/√Hz 1 dB Compression Point 13 dBm 240 MHz Second/Third Harmonic Distortion2 RL = 1 kΩ, VOUT = 2 V p-p −60/−66 dBc RL = 150 Ω, VOUT = 2 V p-p −46/−50 dBc Third-Order IMD RL = 1 kΩ, f1 = 239.5 MHz, f2 = 240.5 MHz, −76 dBc VOUT = 2 V p-p composite RL = 150 Ω, f1 = 239.5 MHz, f2 = 240.5 MHz, −62 dBc VOUT = 2 V p-p composite Output Third-Order Intercept f1 = 239.5 MHz, f2 = 240.5 MHz 27 dBm Noise Spectral Density (RTI) 2.90 nV/√Hz 1 dB Compression Point 13 dBm 1 Values are specified differentially. 2 See the AD8351 data sheet for information about single-ended to differential operation. Rev. A | Page 4 of 12 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
