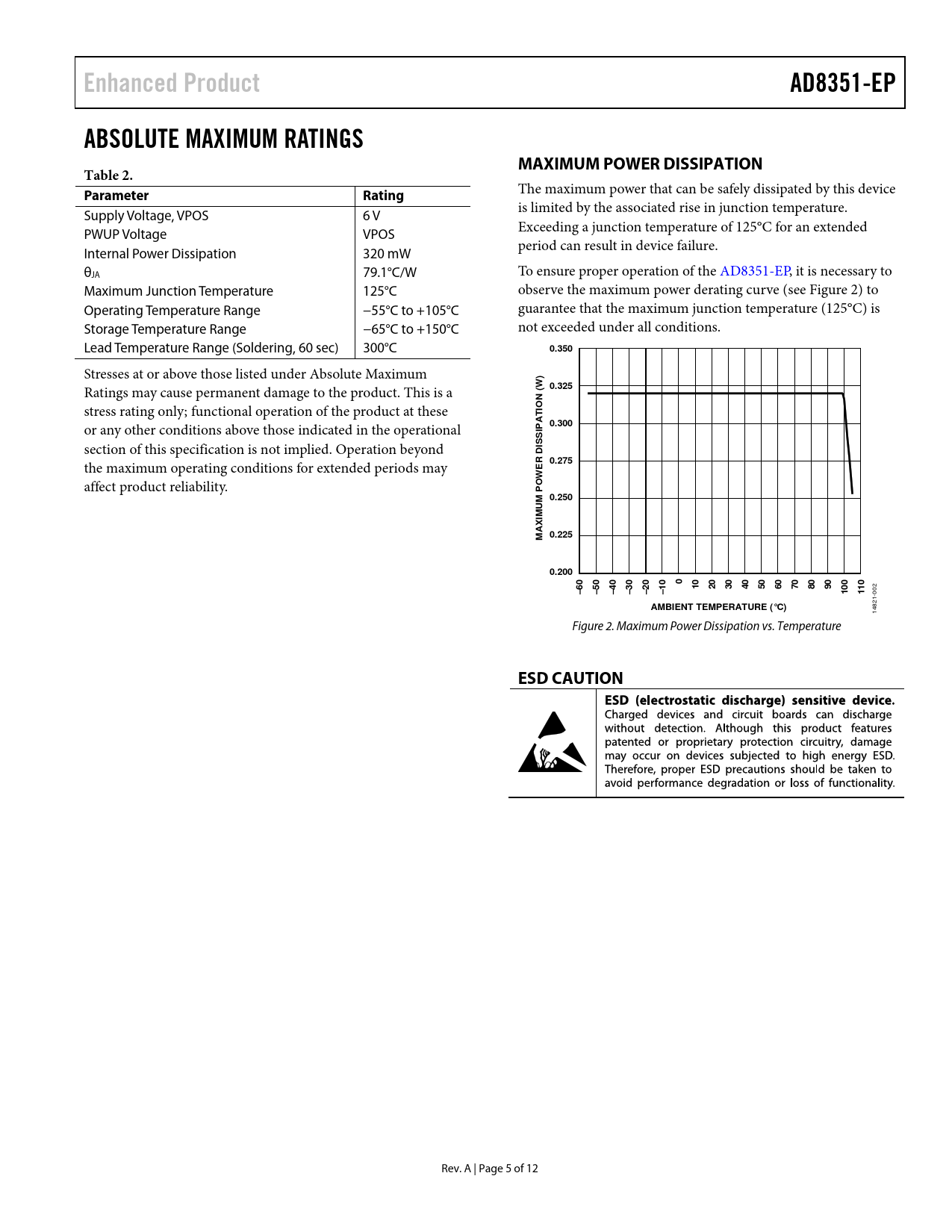

Enhanced Product AD8351-EP ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION Table 2. Parameter Rating
The maximum power that can be safely dissipated by this device Supply Voltage, VPOS 6 V is limited by the associated rise in junction temperature. PWUP Voltage VPOS Exceeding a junction temperature of 125°C for an extended Internal Power Dissipation 320 mW period can result in device failure. θJA 79.1°C/W To ensure proper operation of the AD8351-EP, it is necessary to Maximum Junction Temperature 125°C observe the maximum power derating curve (see Figure 2) to Operating Temperature Range −55°C to +105°C guarantee that the maximum junction temperature (125°C) is Storage Temperature Range −65°C to +150°C not exceeded under all conditions. Lead Temperature Range (Soldering, 60 sec) 300°C
0.350
Stresses at or above those listed under Absolute Maximum
)
Ratings may cause permanent damage to the product. This is a
0.325 (W N
stress rating only; functional operation of the product at these
IO T
or any other conditions above those indicated in the operational
0.300 PA
section of this specification is not implied. Operation beyond
ISSI D
the maximum operating conditions for extended periods may
0.275 ER W
affect product reliability.
0.250 M PO MU XI 0.225 MA 0.200 0 10 20 30 40 50 60 70 80 90 –60 –50 –40 –30 –20 –10 100 110
002
AMBIENT TEMPERATURE (°C)
14821- Figure 2. Maximum Power Dissipation vs. Temperature
ESD CAUTION
Rev. A | Page 5 of 12 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
