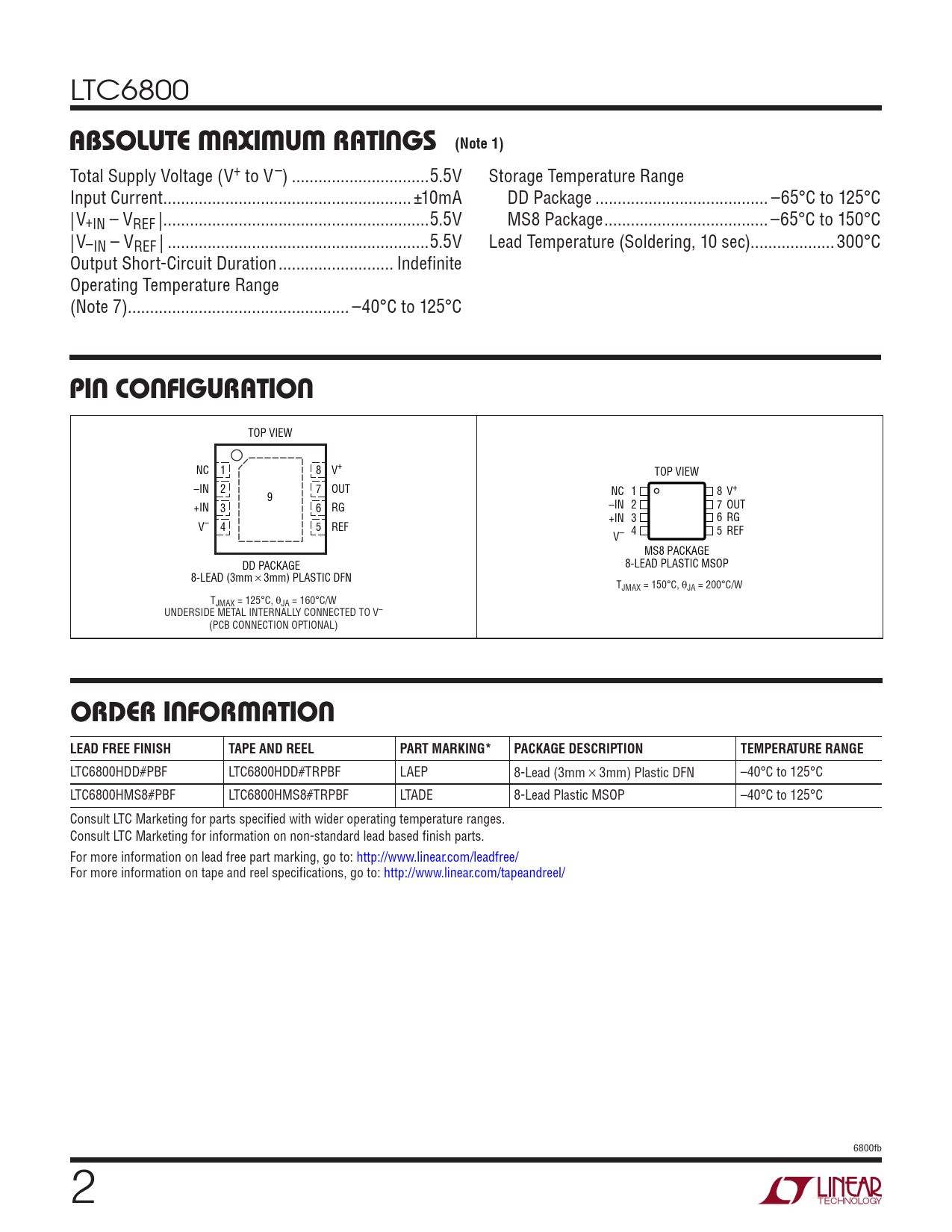

LTC6800 absoluTe MaxiMuM raTings
(Note 1)
Total Supply Voltage (V+ to V–) ...5.5V Storage Temperature Range Input Current ..±10mA DD Package ... –65°C to 125°C |V+IN – VREF | ..5.5V MS8 Package ... –65°C to 150°C |V–IN – VREF | ...5.5V Lead Temperature (Soldering, 10 sec)...300°C Output Short-Circuit Duration .. Indefinite Operating Temperature Range (Note 7).. –40°C to 125°C pin conFiguraTion TOP VIEW NC 1 8 V+ TOP VIEW –IN 2 7 OUT 9 NC 1 8 V+ +IN 3 6 RG –IN 2 7 OUT +IN 3 6 RG V– 4 5 REF 4 V– 5 REF MS8 PACKAGE DD PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD (3mm s 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 200°C/W TJMAX = 125°C, θJA = 160°C/W UNDERSIDE METAL INTERNALLY CONNECTED TO V– (PCB CONNECTION OPTIONAL) orDer inForMaTion
LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC6800HDD#PBF LTC6800HDD#TRPBF LAEP 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC6800HMS8#PBF LTC6800HMS8#TRPBF LTADE 8-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 6800fb Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Related Parts Typical Application
