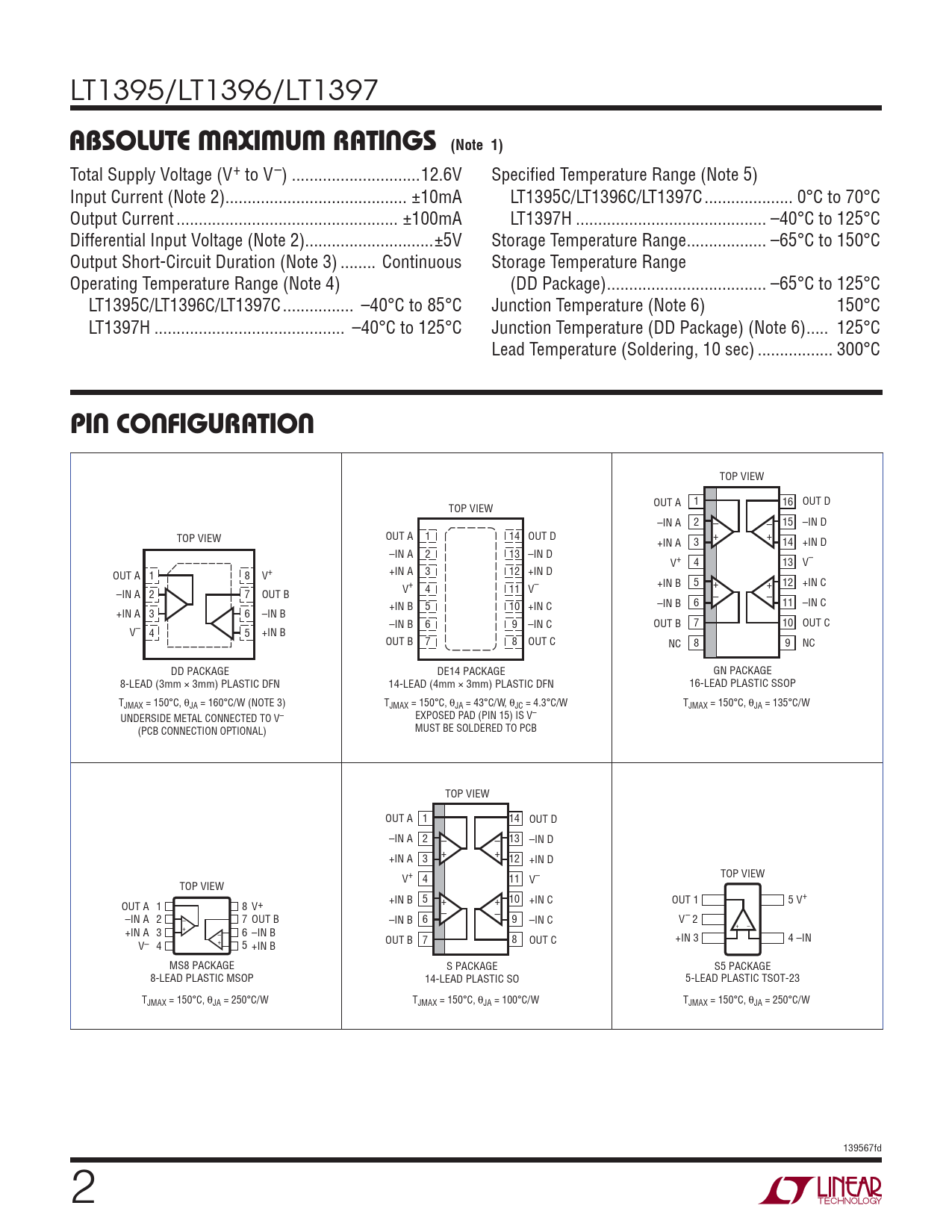

LT1395/LT1396/LT1397
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) ...12.6V Specifi ed Temperature Range (Note 5) Input Current (Note 2) ... ±10mA LT1395C/LT1396C/LT1397C .. 0°C to 70°C Output Current .. ±100mA LT1397H ... –40°C to 125°C Differential Input Voltage (Note 2)...±5V Storage Temperature Range .. –65°C to 150°C Output Short-Circuit Duration (Note 3) .. Continuous Storage Temperature Range Operating Temperature Range (Note 4) (DD Package) .. –65°C to 125°C LT1395C/LT1396C/LT1397C .. –40°C to 85°C Junction Temperature (Note 6) 150°C LT1397H ... –40°C to 125°C Junction Temperature (DD Package) (Note 6) ... 125°C Lead Temperature (Soldering, 10 sec) ... 300°C
PIN CONFIGURATION
TOP VIEW OUT A 1 16 OUT D TOP VIEW –IN A 2 – – 15 –IN D TOP VIEW OUT A 1 14 OUT D + + +IN A 3 14 +IN D –IN A 2 13 –IN D V+ 4 13 V– OUT A 1 8 V+ +IN A 3 12 +IN D +IN B 5 + + 12 +IN C V+ 4 11 V– –IN A 2 7 OUT B – – +IN B 5 10 +IN C –IN B 6 11 –IN C +IN A 3 6 –IN B –IN B 6 9 –IN C OUT B 7 10 OUT C V– 4 5 +IN B OUT B 7 8 OUT C NC 8 9 NC DD PACKAGE DE14 PACKAGE GN PACKAGE 8-LEAD (3mm × 3mm) PLASTIC DFN 14-LEAD (4mm × 3mm) PLASTIC DFN 16-LEAD PLASTIC SSOP TJMAX = 150°C, θJA = 160°C/W (NOTE 3) TJMAX = 150°C, θJA = 43°C/W, θJC = 4.3°C/W TJMAX = 150°C, θJA = 135°C/W UNDERSIDE METAL CONNECTED TO V– EXPOSED PAD (PIN 15) IS V– (PCB CONNECTION OPTIONAL) MUST BE SOLDERED TO PCB TOP VIEW OUT A 1 14 OUT D –IN A 2 – 13 – –IN D + + +IN A 3 12 +IN D TOP VIEW V+ 4 11 V– TOP VIEW +IN B 5 + + 10 +IN C OUT 1 5 V+ OUT A 1 8 V+ – – –IN A 2 – 7 OUT B –IN B 6 9 –IN C V– 2 + – +IN A 3 + – 6 –IN B OUT B 7 8 OUT C +IN 3 4 –IN V– 4 + 5 +IN B MS8 PACKAGE S PACKAGE S5 PACKAGE 8-LEAD PLASTIC MSOP 14-LEAD PLASTIC SO 5-LEAD PLASTIC TSOT-23 TJMAX = 150°C, θJA = 250°C/W TJMAX = 150°C, θJA = 100°C/W TJMAX = 150°C, θJA = 250°C/W 139567fd 2
