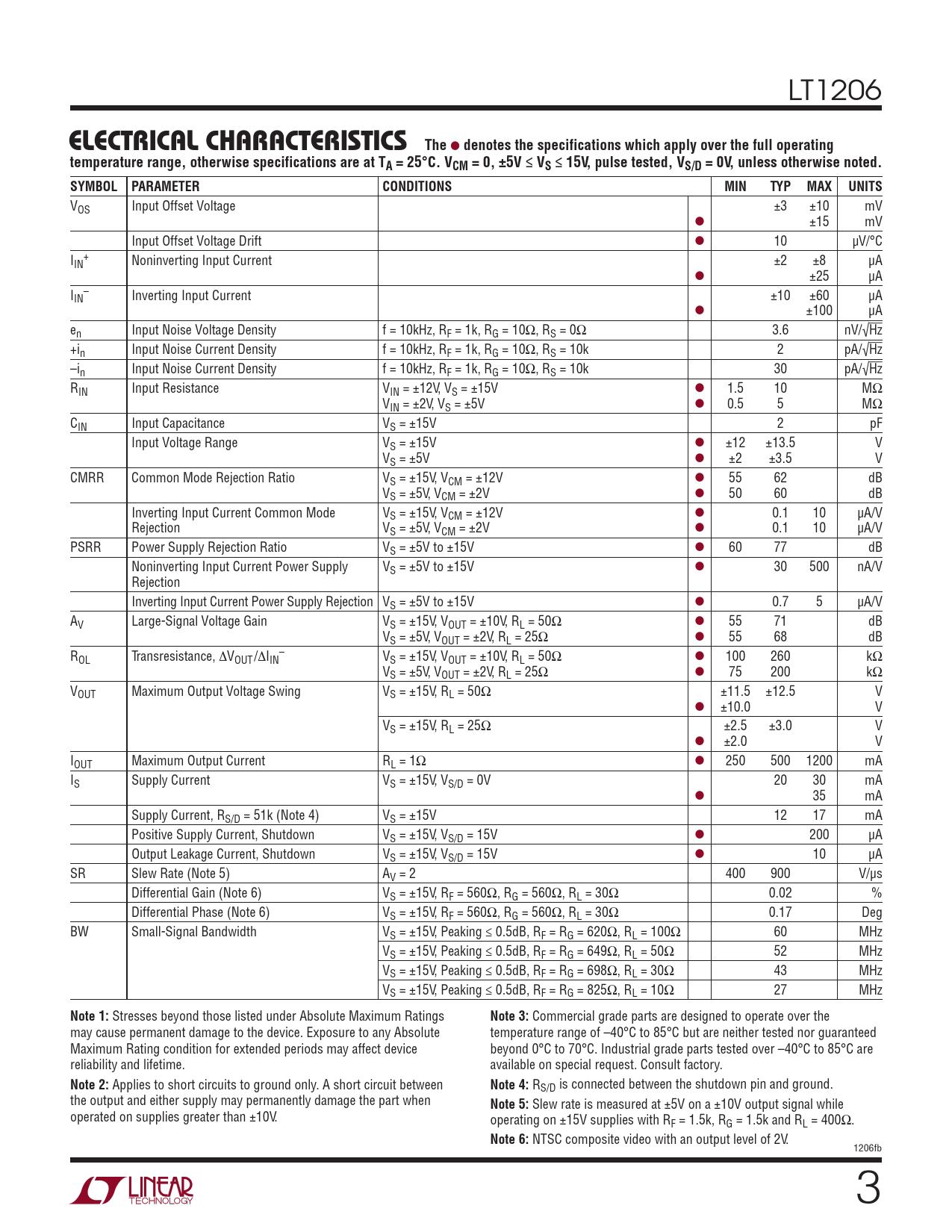

elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VCM = 0, ±5V ≤ VS ≤ 15V, pulse tested, VS/D = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage ±3 ±10 mV l ±15 mV Input Offset Voltage Drift l 10 µV/°C I + IN Noninverting Input Current ±2 ±8 µA l ±25 µA I – IN Inverting Input Current ±10 ±60 µA l ±100 µA en Input Noise Voltage Density f = 10kHz, RF = 1k, RG = 10Ω, RS = 0Ω 3.6 nV/√Hz +in Input Noise Current Density f = 10kHz, RF = 1k, RG = 10Ω, RS = 10k 2 pA/√Hz –in Input Noise Current Density f = 10kHz, RF = 1k, RG = 10Ω, RS = 10k 30 pA/√Hz RIN Input Resistance VIN = ±12V, VS = ±15V l 1.5 10 MΩ VIN = ±2V, VS = ±5V l 0.5 5 MΩ CIN Input Capacitance VS = ±15V 2 pF Input Voltage Range VS = ±15V l ±12 ±13.5 V VS = ±5V l ±2 ±3.5 V CMRR Common Mode Rejection Ratio VS = ±15V, VCM = ±12V l 55 62 dB VS = ±5V, VCM = ±2V l 50 60 dB Inverting Input Current Common Mode VS = ±15V, VCM = ±12V l 0.1 10 µA/V Rejection VS = ±5V, VCM = ±2V l 0.1 10 µA/V PSRR Power Supply Rejection Ratio VS = ±5V to ±15V l 60 77 dB Noninverting Input Current Power Supply VS = ±5V to ±15V l 30 500 nA/V Rejection Inverting Input Current Power Supply Rejection VS = ±5V to ±15V l 0.7 5 µA/V AV Large-Signal Voltage Gain VS = ±15V, VOUT = ±10V, RL = 50Ω l 55 71 dB VS = ±5V, VOUT = ±2V, RL = 25Ω l 55 68 dB R – OL Transresistance, ΔVOUT/ΔIIN VS = ±15V, VOUT = ±10V, RL = 50Ω l 100 260 kΩ VS = ±5V, VOUT = ±2V, RL = 25Ω l 75 200 kΩ VOUT Maximum Output Voltage Swing VS = ±15V, RL = 50Ω ±11.5 ±12.5 V l ±10.0 V VS = ±15V, RL = 25Ω ±2.5 ±3.0 V l ±2.0 V IOUT Maximum Output Current RL = 1Ω l 250 500 1200 mA IS Supply Current VS = ±15V, VS/D = 0V 20 30 mA l 35 mA Supply Current, RS/D = 51k (Note 4) VS = ±15V 12 17 mA Positive Supply Current, Shutdown VS = ±15V, VS/D = 15V l 200 µA Output Leakage Current, Shutdown VS = ±15V, VS/D = 15V l 10 µA SR Slew Rate (Note 5) AV = 2 400 900 V/µs Differential Gain (Note 6) VS = ±15V, RF = 560Ω, RG = 560Ω, RL = 30Ω 0.02 % Differential Phase (Note 6) VS = ±15V, RF = 560Ω, RG = 560Ω, RL = 30Ω 0.17 Deg BW Small-Signal Bandwidth VS = ±15V, Peaking ≤ 0.5dB, RF = RG = 620Ω, RL = 100Ω 60 MHz VS = ±15V, Peaking ≤ 0.5dB, RF = RG = 649Ω, RL = 50Ω 52 MHz VS = ±15V, Peaking ≤ 0.5dB, RF = RG = 698Ω, RL = 30Ω 43 MHz VS = ±15V, Peaking ≤ 0.5dB, RF = RG = 825Ω, RL = 10Ω 27 MHz
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
Commercial grade parts are designed to operate over the may cause permanent damage to the device. Exposure to any Absolute temperature range of –40°C to 85°C but are neither tested nor guaranteed Maximum Rating condition for extended periods may affect device beyond 0°C to 70°C. Industrial grade parts tested over –40°C to 85°C are reliability and lifetime. available on special request. Consult factory.
Note 2:
Applies to short circuits to ground only. A short circuit between
Note 4:
RS/D is connected between the shutdown pin and ground. the output and either supply may permanently damage the part when
Note 5:
Slew rate is measured at ±5V on a ±10V output signal while operated on supplies greater than ±10V. operating on ±15V supplies with RF = 1.5k, RG = 1.5k and RL = 400Ω.
Note 6:
NTSC composite video with an output level of 2V. 1206fb 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Small-Signal Bandwidth Typical Performance Characteristics Simplified Schematic Applications Information Package Description Revision History Related Parts
