Datasheet LT1010 (Analog Devices) - 18
| Manufacturer | Analog Devices |
| Description | Fast ±150mA Power Buffer |
| Pages / Page | 20 / 18 — PACKAGE DESCRIPTION. N8 Package. 8-Lead PDIP (Narrow .300 Inch). T … |
| File Format / Size | PDF / 704 Kb |
| Document Language | English |

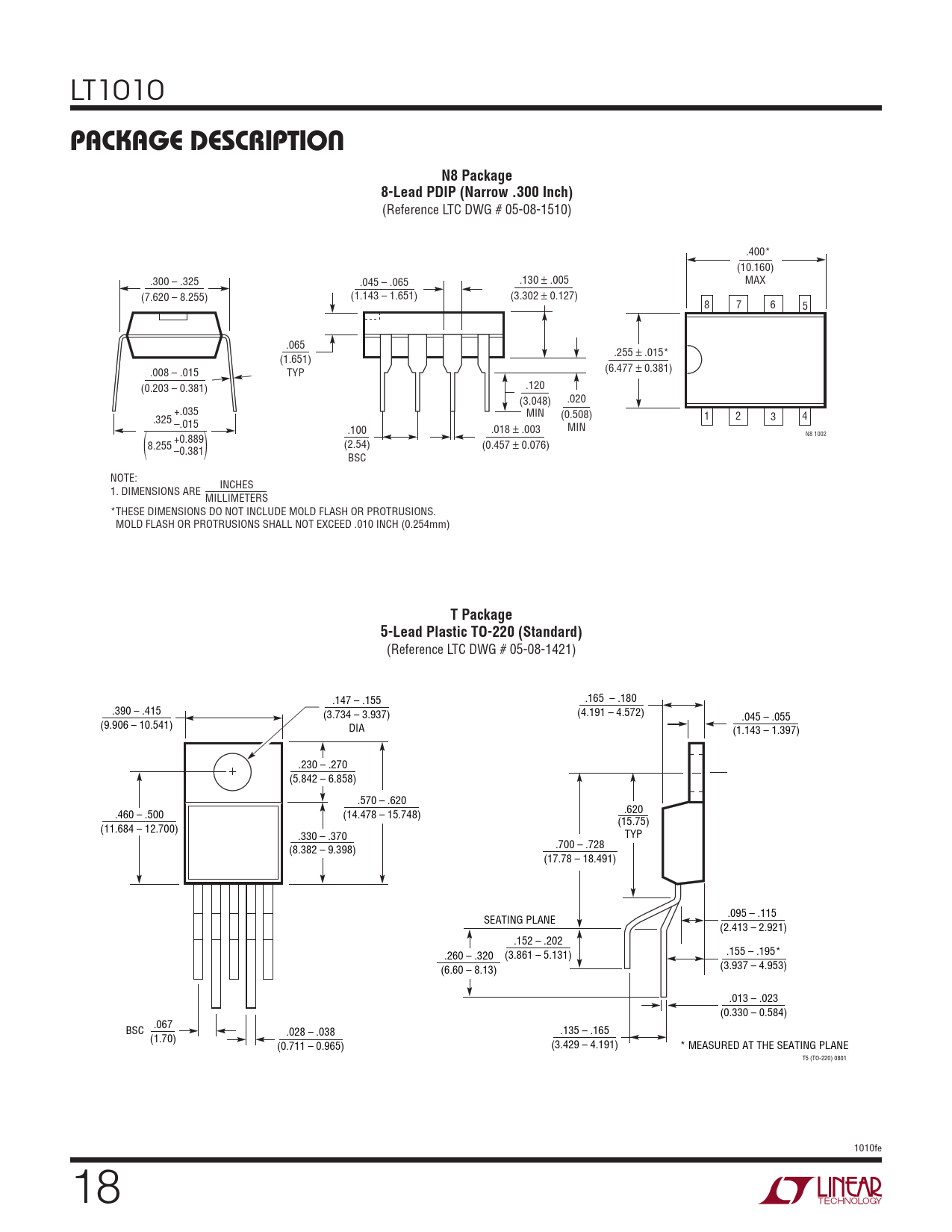

PACKAGE DESCRIPTION. N8 Package. 8-Lead PDIP (Narrow .300 Inch). T Package. 5-Lead Plastic TO-220 (Standard)
Model Line for this Datasheet
Text Version of Document
LT1010
PACKAGE DESCRIPTION N8 Package 8-Lead PDIP (Narrow .300 Inch)
(Reference LTC DWG # 05-08-1510) .400* (10.160) .300 – .325 .045 – .065 .130 ± .005 MAX (7.620 – 8.255) (1.143 – 1.651) (3.302 ± 0.127) 8 7 6 5 .065 (1.651) .255 ± .015* .008 – .015 TYP (6.477 ± 0.381) .120 (0.203 – 0.381) (3.048) .020 +.035 MIN (0.508) .325 1 2 3 4 –.015 .100 .018 MIN ± .003 N8 1002 +0.889 8.255 (2.54) (0.457 ± 0.076) ( ) –0.381 BSC NOTE: INCHES 1. DIMENSIONS ARE MILLIMETERS *THESE DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSIONS. MOLD FLASH OR PROTRUSIONS SHALL NOT EXCEED .010 INCH (0.254mm)
T Package 5-Lead Plastic TO-220 (Standard)
(Reference LTC DWG # 05-08-1421) .147 – .155 .165 – .180 .390 – .415 (3.734 – 3.937) (4.191 – 4.572) .045 – .055 (9.906 – 10.541) DIA (1.143 – 1.397) .230 – .270 (5.842 – 6.858) .570 – .620 .620 .460 – .500 (14.478 – 15.748) (15.75) (11.684 – 12.700) .330 – .370 TYP .700 – .728 (8.382 – 9.398) (17.78 – 18.491) .095 – .115 SEATING PLANE (2.413 – 2.921) .152 – .202 .155 – .195* .260 – .320 (3.861 – 5.131) (3.937 – 4.953) (6.60 – 8.13) .013 – .023 (0.330 – 0.584) .067 BSC .028 – .038 .135 – .165 (1.70) (0.711 – 0.965) (3.429 – 4.191) * MEASURED AT THE SEATING PLANE T5 (TO-220) 0801 1010fe 18 Document Outline Fteatures Applications Description Typical Application Absolute Maximum Ratings Preconditioning Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Schematic Diagram Definition Of Terms Package Description Revision History Related Parts
