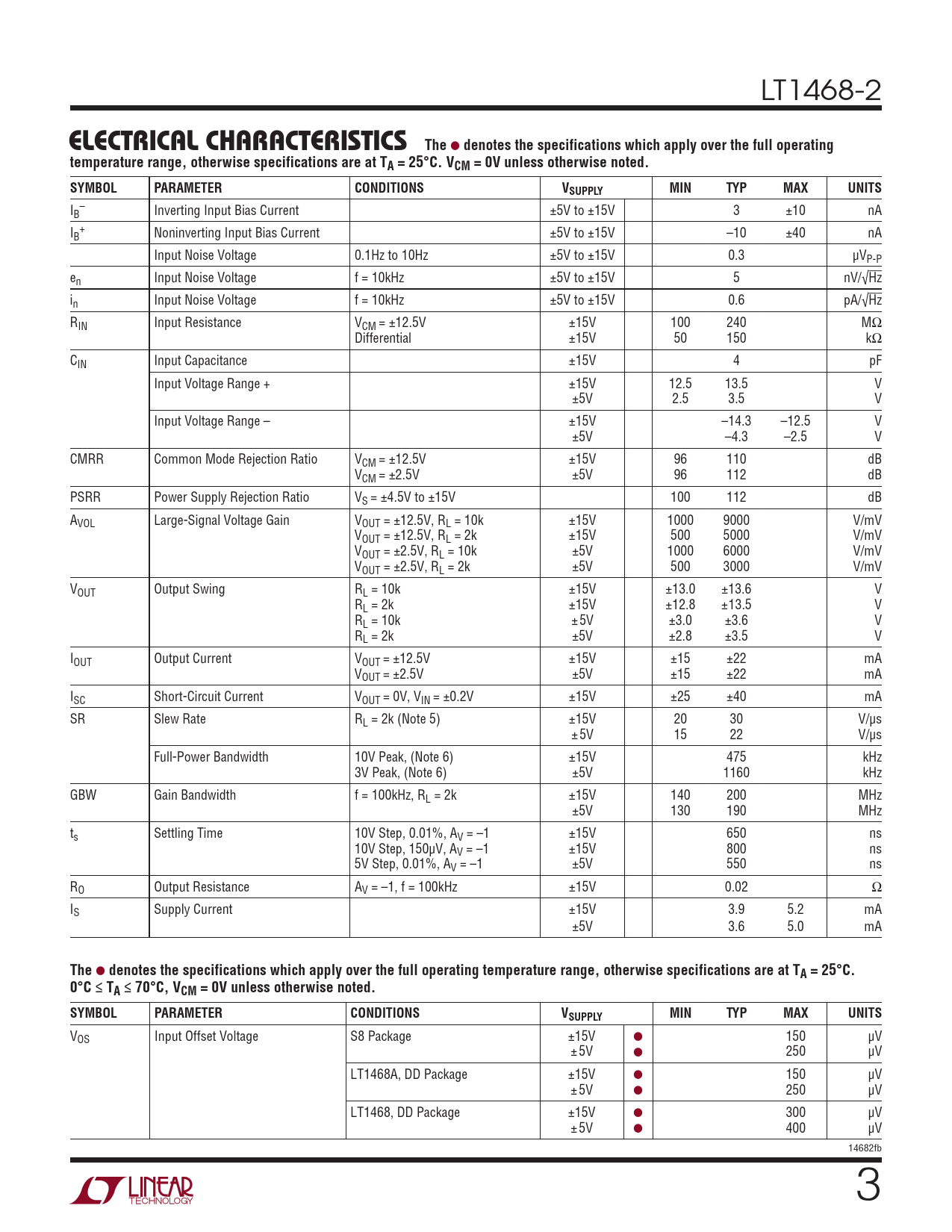

e lecTrical characTerisTics The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LT1468-2
e lecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
I – B Inverting Input Bias Current ±5V to ±15V 3 ±10 nA I + B Noninverting Input Bias Current ±5V to ±15V –10 ±40 nA Input Noise Voltage 0.1Hz to 10Hz ±5V to ±15V 0.3 µVP-P en Input Noise Voltage f = 10kHz ±5V to ±15V 5 nV/√Hz in Input Noise Voltage f = 10kHz ±5V to ±15V 0.6 pA/√Hz RIN Input Resistance VCM = ±12.5V ±15V 100 240 MΩ Differential ±15V 50 150 kΩ CIN Input Capacitance ±15V 4 pF Input Voltage Range + ±15V 12.5 13.5 V ±5V 2.5 3.5 V Input Voltage Range – ±15V –14.3 –12.5 V ±5V –4.3 –2.5 V CMRR Common Mode Rejection Ratio VCM = ±12.5V ±15V 96 110 dB VCM = ±2.5V ±5V 96 112 dB PSRR Power Supply Rejection Ratio VS = ±4.5V to ±15V 100 112 dB AVOL Large-Signal Voltage Gain VOUT = ±12.5V, RL = 10k ±15V 1000 9000 V/mV VOUT = ±12.5V, RL = 2k ±15V 500 5000 V/mV VOUT = ±2.5V, RL = 10k ±5V 1000 6000 V/mV VOUT = ±2.5V, RL = 2k ±5V 500 3000 V/mV VOUT Output Swing RL = 10k ±15V ±13.0 ±13.6 V RL = 2k ±15V ±12.8 ±13.5 V RL = 10k ±5V ±3.0 ±3.6 V RL = 2k ±5V ±2.8 ±3.5 V IOUT Output Current VOUT = ±12.5V ±15V ±15 ±22 mA VOUT = ±2.5V ±5V ±15 ±22 mA ISC Short-Circuit Current VOUT = 0V, VIN = ±0.2V ±15V ±25 ±40 mA SR Slew Rate RL = 2k (Note 5) ±15V 20 30 V/µs ±5V 15 22 V/µs Full-Power Bandwidth 10V Peak, (Note 6) ±15V 475 kHz 3V Peak, (Note 6) ±5V 1160 kHz GBW Gain Bandwidth f = 100kHz, RL = 2k ±15V 140 200 MHz ±5V 130 190 MHz ts Settling Time 10V Step, 0.01%, AV = –1 ±15V 650 ns 10V Step, 150µV, AV = –1 ±15V 800 ns 5V Step, 0.01%, AV = –1 ±5V 550 ns RO Output Resistance AV = –1, f = 100kHz ±15V 0.02 Ω IS Supply Current ±15V 3.9 5.2 mA ±5V 3.6 5.0 mA
