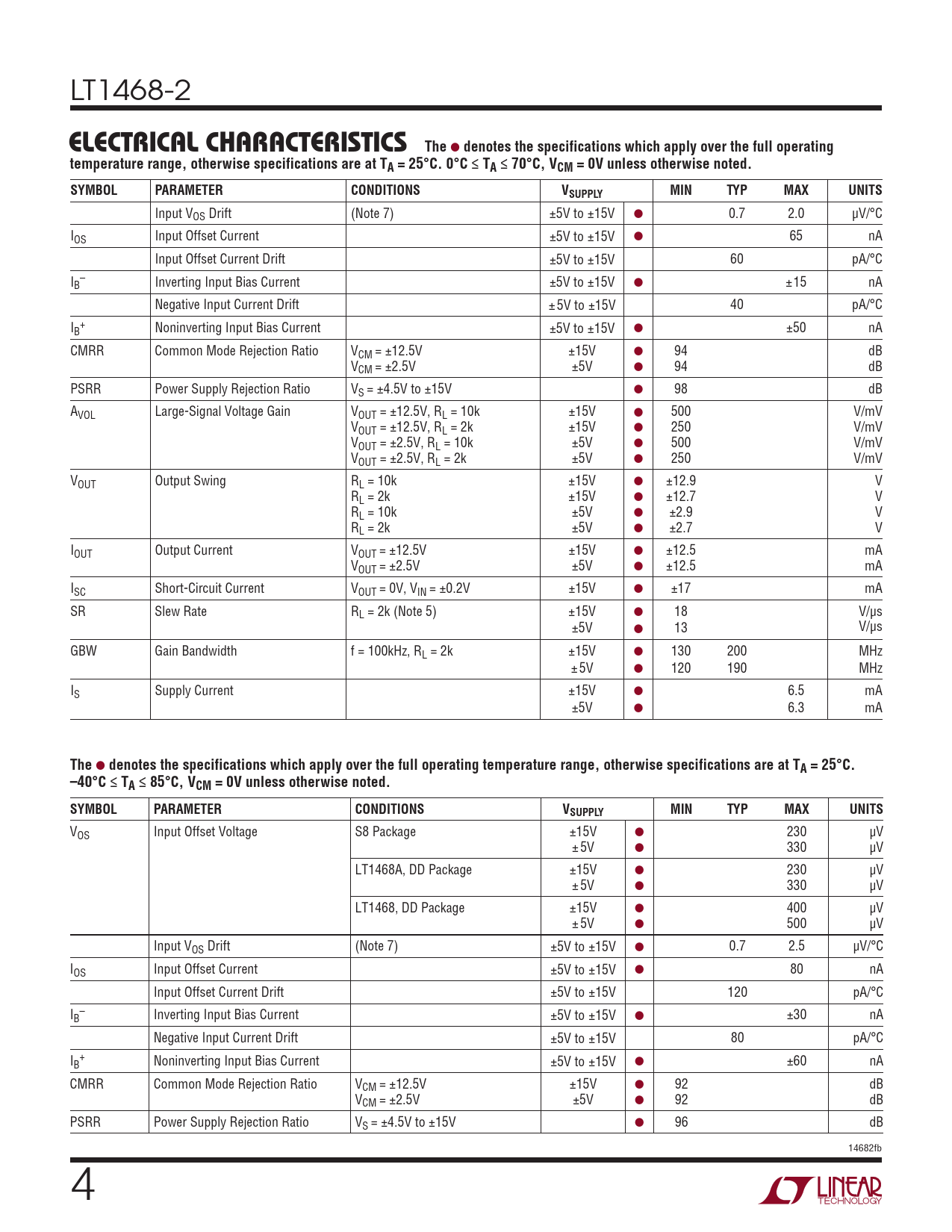

e lecTrical characTerisTics The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LT1468-2
e lecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. 0°C ≤ TA ≤ 70°C, VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
Input VOS Drift (Note 7) ±5V to ±15V ● 0.7 2.0 µV/°C IOS Input Offset Current ±5V to ±15V ● 65 nA Input Offset Current Drift ±5V to ±15V 60 pA/°C I – B Inverting Input Bias Current ±5V to ±15V ● ±15 nA Negative Input Current Drift ±5V to ±15V 40 pA/°C I + B Noninverting Input Bias Current ±5V to ±15V ● ±50 nA CMRR Common Mode Rejection Ratio VCM = ±12.5V ±15V ● 94 dB VCM = ±2.5V ±5V ● 94 dB PSRR Power Supply Rejection Ratio VS = ±4.5V to ±15V ● 98 dB AVOL Large-Signal Voltage Gain VOUT = ±12.5V, RL = 10k ±15V ● 500 V/mV VOUT = ±12.5V, RL = 2k ±15V ● 250 V/mV VOUT = ±2.5V, RL = 10k ±5V ● 500 V/mV VOUT = ±2.5V, RL = 2k ±5V ● 250 V/mV VOUT Output Swing RL = 10k ±15V ● ±12.9 V RL = 2k ±15V ● ±12.7 V RL = 10k ±5V ● ±2.9 V RL = 2k ±5V ● ±2.7 V IOUT Output Current VOUT = ±12.5V ±15V ● ±12.5 mA VOUT = ±2.5V ±5V ● ±12.5 mA ISC Short-Circuit Current VOUT = 0V, VIN = ±0.2V ±15V ● ±17 mA SR Slew Rate RL = 2k (Note 5) ±15V ● 18 V/µs ±5V ● 13 V/µs GBW Gain Bandwidth f = 100kHz, RL = 2k ±15V ● 130 200 MHz ±5V ● 120 190 MHz IS Supply Current ±15V ● 6.5 mA ±5V ● 6.3 mA
