Datasheet LT1221 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | 150MHz, 250V/µs, AV ≥ 4 Operational Amplifier |
| Pages / Page | 12 / 9 — PACKAGE DESCRIPTIO. J8 Package. 8-Lead CERDIP (Narrow .300 Inch, … |
| File Format / Size | PDF / 261 Kb |
| Document Language | English |

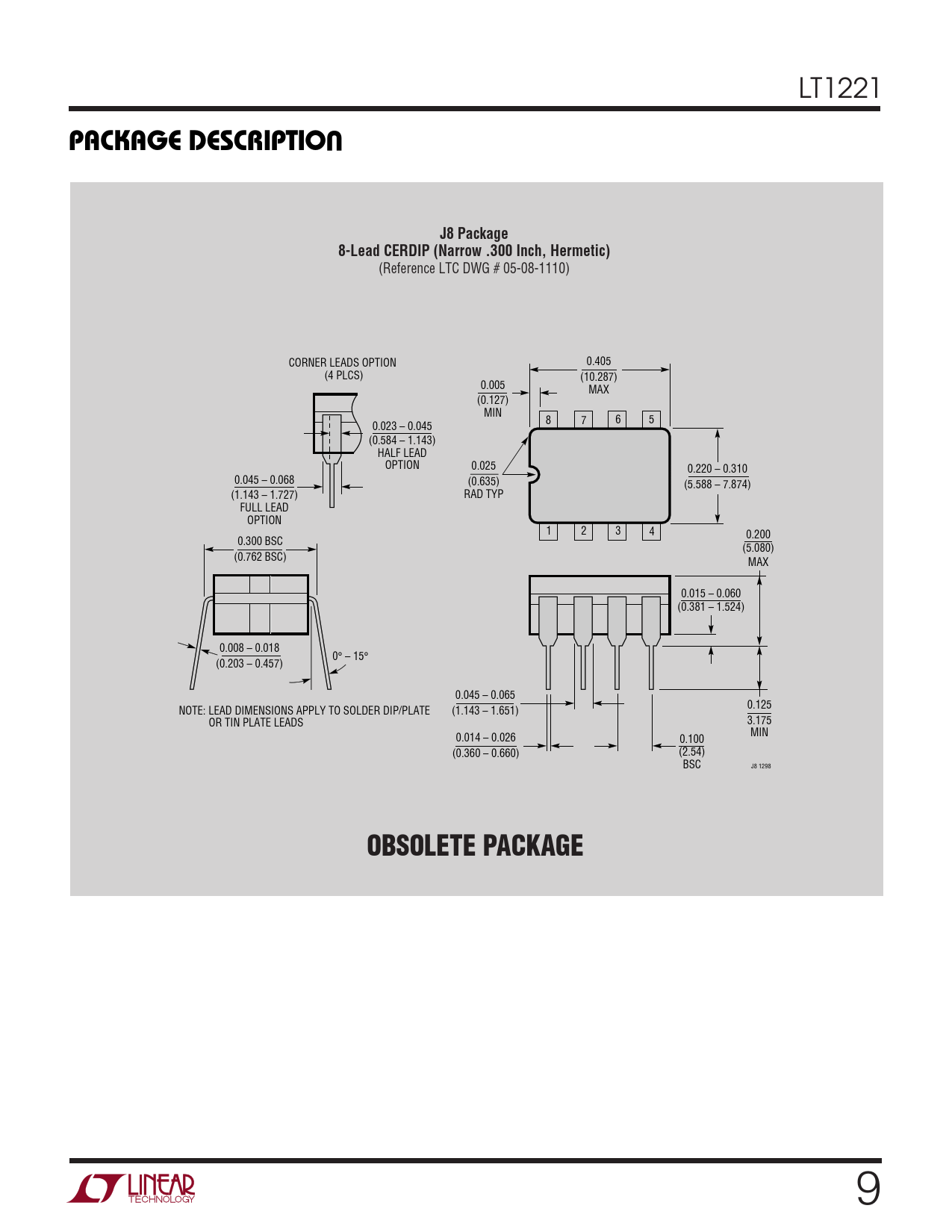

PACKAGE DESCRIPTIO. J8 Package. 8-Lead CERDIP (Narrow .300 Inch, Hermetic). OBSOLETE PACKAGE
Model Line for this Datasheet
Text Version of Document
LT1221
U PACKAGE DESCRIPTIO J8 Package 8-Lead CERDIP (Narrow .300 Inch, Hermetic)
(Reference LTC DWG # 05-08-1110) CORNER LEADS OPTION 0.405 (4 PLCS) (10.287) 0.005 MAX (0.127) MIN 8 7 6 5 0.023 – 0.045 (0.584 – 1.143) HALF LEAD OPTION 0.025 0.220 – 0.310 0.045 – 0.068 (0.635) (5.588 – 7.874) (1.143 – 1.727) RAD TYP FULL LEAD OPTION 1 2 3 4 0.200 0.300 BSC (5.080) (0.762 BSC) MAX 0.015 – 0.060 (0.381 – 1.524) 0.008 – 0.018 0° – 15° (0.203 – 0.457) 0.045 – 0.065 0.125 NOTE: LEAD DIMENSIONS APPLY TO SOLDER DIP/PLATE (1.143 – 1.651) 3.175 OR TIN PLATE LEADS MIN 0.014 – 0.026 0.100 (0.360 – 0.660) (2.54) BSC J8 1298
