LT1355/LT1356

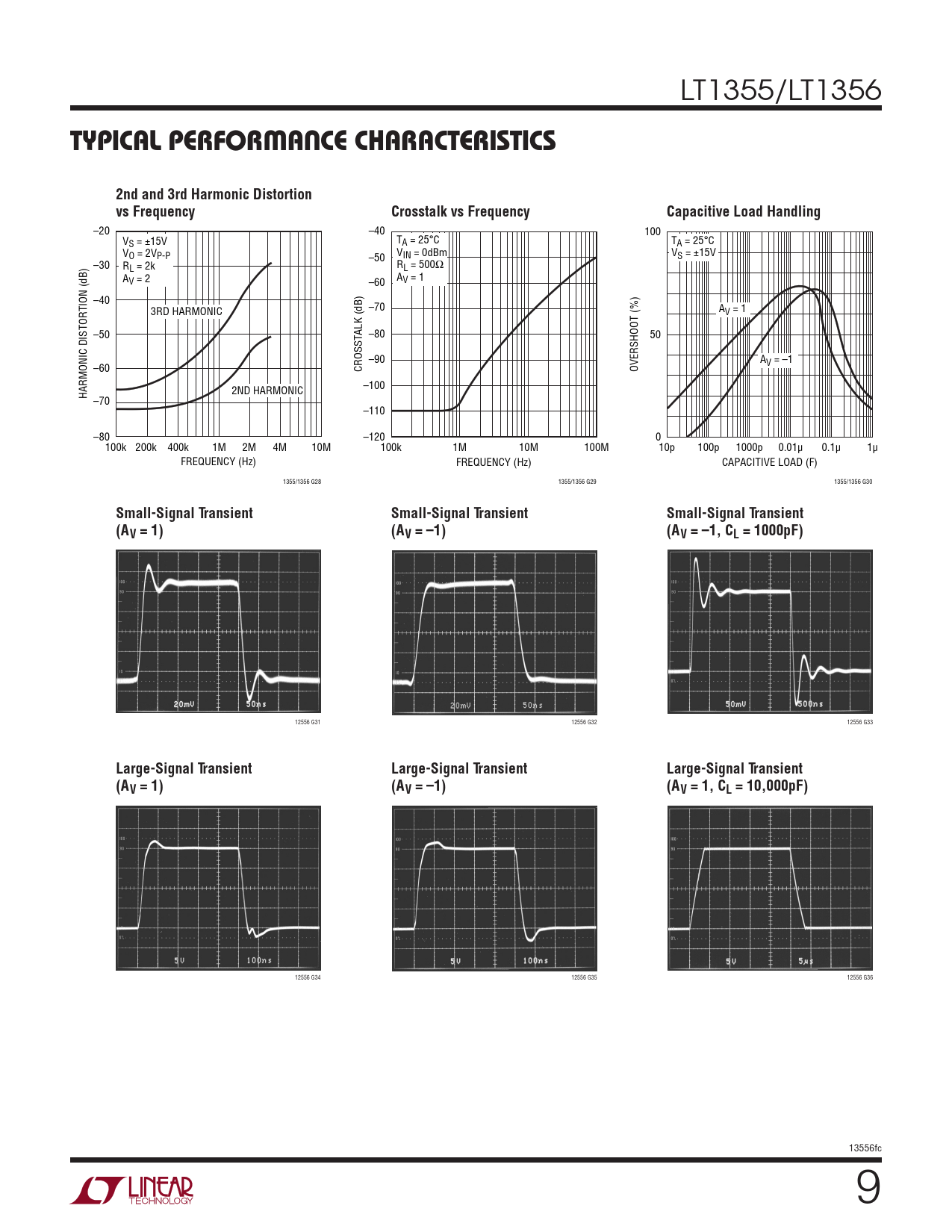

TYPICAL PERFORMANCE CHARACTERISTICS 2nd and 3rd Harmonic Distortion vs Frequency Crosstalk vs Frequency Capacitive Load Handling
–20 –40 100 VS = ±15V TA = 25°C TA = 25°C VO = 2VP-P –50 VIN = 0dBm VS = ±15V –30 RL = 2k RL = 500Ω AV = 2 –60 AV = 1 –40 3RD HARMONIC –70 AV = 1 –50 –80 50 –90 A –60 CROSSTALK (dB) OVERSHOOT (%) V = –1 –100 HARMONIC DISTORTION (dB) 2ND HARMONIC –70 –110 –80 –120 0 100k 200k 400k 1M 2M 4M 10M 100k 1M 10M 100M 10p 100p 1000p 0.01µ 0.1µ 1µ FREQUENCY (Hz) FREQUENCY (Hz) CAPACITIVE LOAD (F) 1355/1356 G28 1355/1356 G29 1355/1356 G30
Small-Signal Transient Small-Signal Transient Small-Signal Transient (A V = 1) (A V = –1) (A V = –1, CL = 1000pF)
12556 G31 12556 G32 12556 G33
Large-Signal Transient Large-Signal Transient Large-Signal Transient (A V = 1) (A V = –1) (A V = 1, CL = 10,000pF)
12556 G34 12556 G35 12556 G36 13556fc 9 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical Applications Related Parts
