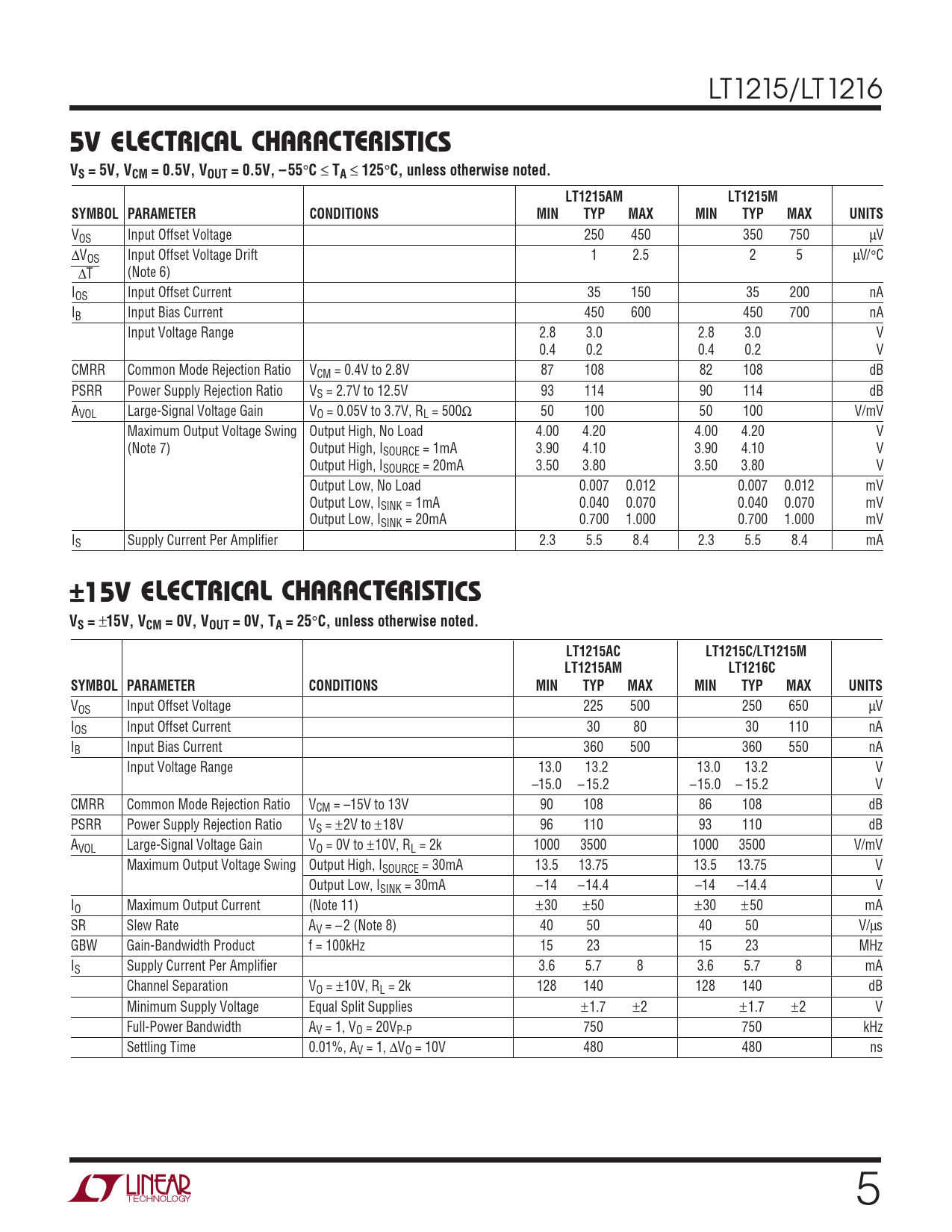

5V ELECTRICAL CH. ARA TERISTICS. VS = 5V, VCM = 0.5V, VOUT = 0.5V, – 55. 125. C, unless otherwise noted. LT1215AM. LT1215M
Model Line for this Datasheet
Text Version of Document
LT1215/LT1216
5V ELECTRICAL CH C ARA TERISTICS VS = 5V, VCM = 0.5V, VOUT = 0.5V, – 55
°
C
≤
TA
≤
125
°
C, unless otherwise noted. LT1215AM LT1215M SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 250 450 350 750 µV ∆VOS Input Offset Voltage Drift 1 2.5 2 5 µV/°C ∆T (Note 6) IOS Input Offset Current 35 150 35 200 nA IB Input Bias Current 450 600 450 700 nA Input Voltage Range 2.8 3.0 2.8 3.0 V 0.4 0.2 0.4 0.2 V CMRR Common Mode Rejection Ratio VCM = 0.4V to 2.8V 87 108 82 108 dB PSRR Power Supply Rejection Ratio VS = 2.7V to 12.5V 93 114 90 114 dB AVOL Large-Signal Voltage Gain VO = 0.05V to 3.7V, RL = 500Ω 50 100 50 100 V/mV Maximum Output Voltage Swing Output High, No Load 4.00 4.20 4.00 4.20 V (Note 7) Output High, ISOURCE = 1mA 3.90 4.10 3.90 4.10 V Output High, ISOURCE = 20mA 3.50 3.80 3.50 3.80 V Output Low, No Load 0.007 0.012 0.007 0.012 mV Output Low, ISINK = 1mA 0.040 0.070 0.040 0.070 mV Output Low, ISINK = 20mA 0.700 1.000 0.700 1.000 mV IS Supply Current Per Amplifier 2.3 5.5 8.4 2.3 5.5 8.4 mA
+15V ELECTRICAL CH C ARA TERISTICS – VS =
±
15V, VCM = 0V, VOUT = 0V, TA = 25
°
C, unless otherwise noted. LT1215AC LT1215C/LT1215M LT1215AM LT1216C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 225 500 250 650 µV IOS Input Offset Current 30 80 30 110 nA IB Input Bias Current 360 500 360 550 nA Input Voltage Range 13.0 13.2 13.0 13.2 V –15.0 – 15.2 –15.0 – 15.2 V CMRR Common Mode Rejection Ratio VCM = –15V to 13V 90 108 86 108 dB PSRR Power Supply Rejection Ratio VS = ±2V to ±18V 96 110 93 110 dB AVOL Large-Signal Voltage Gain VO = 0V to ±10V, RL = 2k 1000 3500 1000 3500 V/mV Maximum Output Voltage Swing Output High, ISOURCE = 30mA 13.5 13.75 13.5 13.75 V Output Low, ISINK = 30mA –14 –14.4 –14 –14.4 V IO Maximum Output Current (Note 11) ±30 ±50 ±30 ±50 mA SR Slew Rate AV = – 2 (Note 8) 40 50 40 50 V/µs GBW Gain-Bandwidth Product f = 100kHz 15 23 15 23 MHz IS Supply Current Per Amplifier 3.6 5.7 8 3.6 5.7 8 mA Channel Separation VO = ±10V, RL = 2k 128 140 128 140 dB Minimum Supply Voltage Equal Split Supplies ±1.7 ±2 ±1.7 ±2 V Full-Power Bandwidth AV = 1, VO = 20VP-P 750 750 kHz Settling Time 0.01%, AV = 1, ∆VO = 10V 480 480 ns 5
5V ELECTRICAL CH C ARA TERISTICS VS = 5V, VCM = 0.5V, VOUT = 0.5V, – 55
°
C
≤
TA
≤
125
°
C, unless otherwise noted. LT1215AM LT1215M SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 250 450 350 750 µV ∆VOS Input Offset Voltage Drift 1 2.5 2 5 µV/°C ∆T (Note 6) IOS Input Offset Current 35 150 35 200 nA IB Input Bias Current 450 600 450 700 nA Input Voltage Range 2.8 3.0 2.8 3.0 V 0.4 0.2 0.4 0.2 V CMRR Common Mode Rejection Ratio VCM = 0.4V to 2.8V 87 108 82 108 dB PSRR Power Supply Rejection Ratio VS = 2.7V to 12.5V 93 114 90 114 dB AVOL Large-Signal Voltage Gain VO = 0.05V to 3.7V, RL = 500Ω 50 100 50 100 V/mV Maximum Output Voltage Swing Output High, No Load 4.00 4.20 4.00 4.20 V (Note 7) Output High, ISOURCE = 1mA 3.90 4.10 3.90 4.10 V Output High, ISOURCE = 20mA 3.50 3.80 3.50 3.80 V Output Low, No Load 0.007 0.012 0.007 0.012 mV Output Low, ISINK = 1mA 0.040 0.070 0.040 0.070 mV Output Low, ISINK = 20mA 0.700 1.000 0.700 1.000 mV IS Supply Current Per Amplifier 2.3 5.5 8.4 2.3 5.5 8.4 mA
+15V ELECTRICAL CH C ARA TERISTICS – VS =
±
15V, VCM = 0V, VOUT = 0V, TA = 25
°
C, unless otherwise noted. LT1215AC LT1215C/LT1215M LT1215AM LT1216C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 225 500 250 650 µV IOS Input Offset Current 30 80 30 110 nA IB Input Bias Current 360 500 360 550 nA Input Voltage Range 13.0 13.2 13.0 13.2 V –15.0 – 15.2 –15.0 – 15.2 V CMRR Common Mode Rejection Ratio VCM = –15V to 13V 90 108 86 108 dB PSRR Power Supply Rejection Ratio VS = ±2V to ±18V 96 110 93 110 dB AVOL Large-Signal Voltage Gain VO = 0V to ±10V, RL = 2k 1000 3500 1000 3500 V/mV Maximum Output Voltage Swing Output High, ISOURCE = 30mA 13.5 13.75 13.5 13.75 V Output Low, ISINK = 30mA –14 –14.4 –14 –14.4 V IO Maximum Output Current (Note 11) ±30 ±50 ±30 ±50 mA SR Slew Rate AV = – 2 (Note 8) 40 50 40 50 V/µs GBW Gain-Bandwidth Product f = 100kHz 15 23 15 23 MHz IS Supply Current Per Amplifier 3.6 5.7 8 3.6 5.7 8 mA Channel Separation VO = ±10V, RL = 2k 128 140 128 140 dB Minimum Supply Voltage Equal Split Supplies ±1.7 ±2 ±1.7 ±2 V Full-Power Bandwidth AV = 1, VO = 20VP-P 750 750 kHz Settling Time 0.01%, AV = 1, ∆VO = 10V 480 480 ns 5
