Datasheet LT1215, LT1216 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 23MHz, 50V/µs, Single Supply Dual and Quad Precision Op Amps |
| Pages / Page | 20 / 4 — 5V ELECTRICAL CH. ARA TERISTICS. VS = 5V, VCM = 0.5V, VOUT = 0.5V, 0. C, … |
| File Format / Size | PDF / 347 Kb |
| Document Language | English |

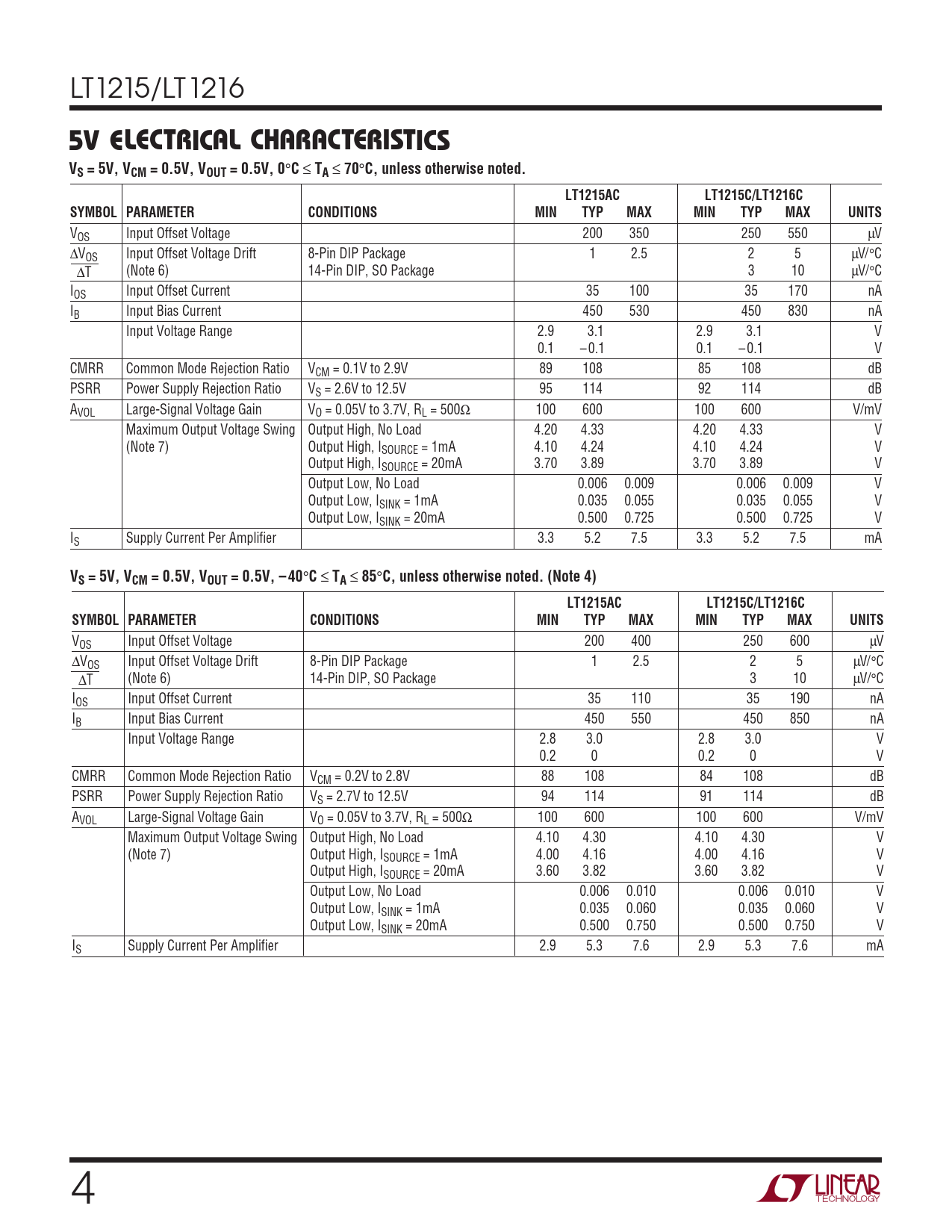

5V ELECTRICAL CH. ARA TERISTICS. VS = 5V, VCM = 0.5V, VOUT = 0.5V, 0. C, unless otherwise noted. LT1215AC. LT1215C/LT1216C
Model Line for this Datasheet
Text Version of Document
LT1215/LT1216
5V ELECTRICAL CH C ARA TERISTICS VS = 5V, VCM = 0.5V, VOUT = 0.5V, 0
°
C
≤
TA
≤
70
°
C, unless otherwise noted. LT1215AC LT1215C/LT1216C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 200 350 250 550 µV ∆VOS Input Offset Voltage Drift 8-Pin DIP Package 1 2.5 2 5 µV/°C ∆T (Note 6) 14-Pin DIP, SO Package 3 10 µV/°C IOS Input Offset Current 35 100 35 170 nA IB Input Bias Current 450 530 450 830 nA Input Voltage Range 2.9 3.1 2.9 3.1 V 0.1 – 0.1 0.1 – 0.1 V CMRR Common Mode Rejection Ratio VCM = 0.1V to 2.9V 89 108 85 108 dB PSRR Power Supply Rejection Ratio VS = 2.6V to 12.5V 95 114 92 114 dB AVOL Large-Signal Voltage Gain VO = 0.05V to 3.7V, RL = 500Ω 100 600 100 600 V/mV Maximum Output Voltage Swing Output High, No Load 4.20 4.33 4.20 4.33 V (Note 7) Output High, ISOURCE = 1mA 4.10 4.24 4.10 4.24 V Output High, ISOURCE = 20mA 3.70 3.89 3.70 3.89 V Output Low, No Load 0.006 0.009 0.006 0.009 V Output Low, ISINK = 1mA 0.035 0.055 0.035 0.055 V Output Low, ISINK = 20mA 0.500 0.725 0.500 0.725 V IS Supply Current Per Amplifier 3.3 5.2 7.5 3.3 5.2 7.5 mA
VS = 5V, VCM = 0.5V, VOUT = 0.5V, – 40
°
C
≤
TA
≤
85
°
C, unless otherwise noted. (Note 4) LT1215AC LT1215C/LT1216C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 200 400 250 600 µV ∆VOS Input Offset Voltage Drift 8-Pin DIP Package 1 2.5 2 5 µV/°C ∆T (Note 6) 14-Pin DIP, SO Package 3 10 µV/°C IOS Input Offset Current 35 110 35 190 nA IB Input Bias Current 450 550 450 850 nA Input Voltage Range 2.8 3.0 2.8 3.0 V 0.2 0 0.2 0 V CMRR Common Mode Rejection Ratio VCM = 0.2V to 2.8V 88 108 84 108 dB PSRR Power Supply Rejection Ratio VS = 2.7V to 12.5V 94 114 91 114 dB AVOL Large-Signal Voltage Gain VO = 0.05V to 3.7V, RL = 500Ω 100 600 100 600 V/mV Maximum Output Voltage Swing Output High, No Load 4.10 4.30 4.10 4.30 V (Note 7) Output High, ISOURCE = 1mA 4.00 4.16 4.00 4.16 V Output High, ISOURCE = 20mA 3.60 3.82 3.60 3.82 V Output Low, No Load 0.006 0.010 0.006 0.010 V Output Low, ISINK = 1mA 0.035 0.060 0.035 0.060 V Output Low, ISINK = 20mA 0.500 0.750 0.500 0.750 V IS Supply Current Per Amplifier 2.9 5.3 7.6 2.9 5.3 7.6 mA 4
