Datasheet LTC6258, LTC6259, LTC6260 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 1.3MHz, 20µA Power Efficient Rail-to-Rail I/O Op Amps |
| Pages / Page | 28 / 4 — 5V ELECTRICAL CHARACTERISTICS. The. denotes the specifications which … |
| File Format / Size | PDF / 1.9 Mb |
| Document Language | English |

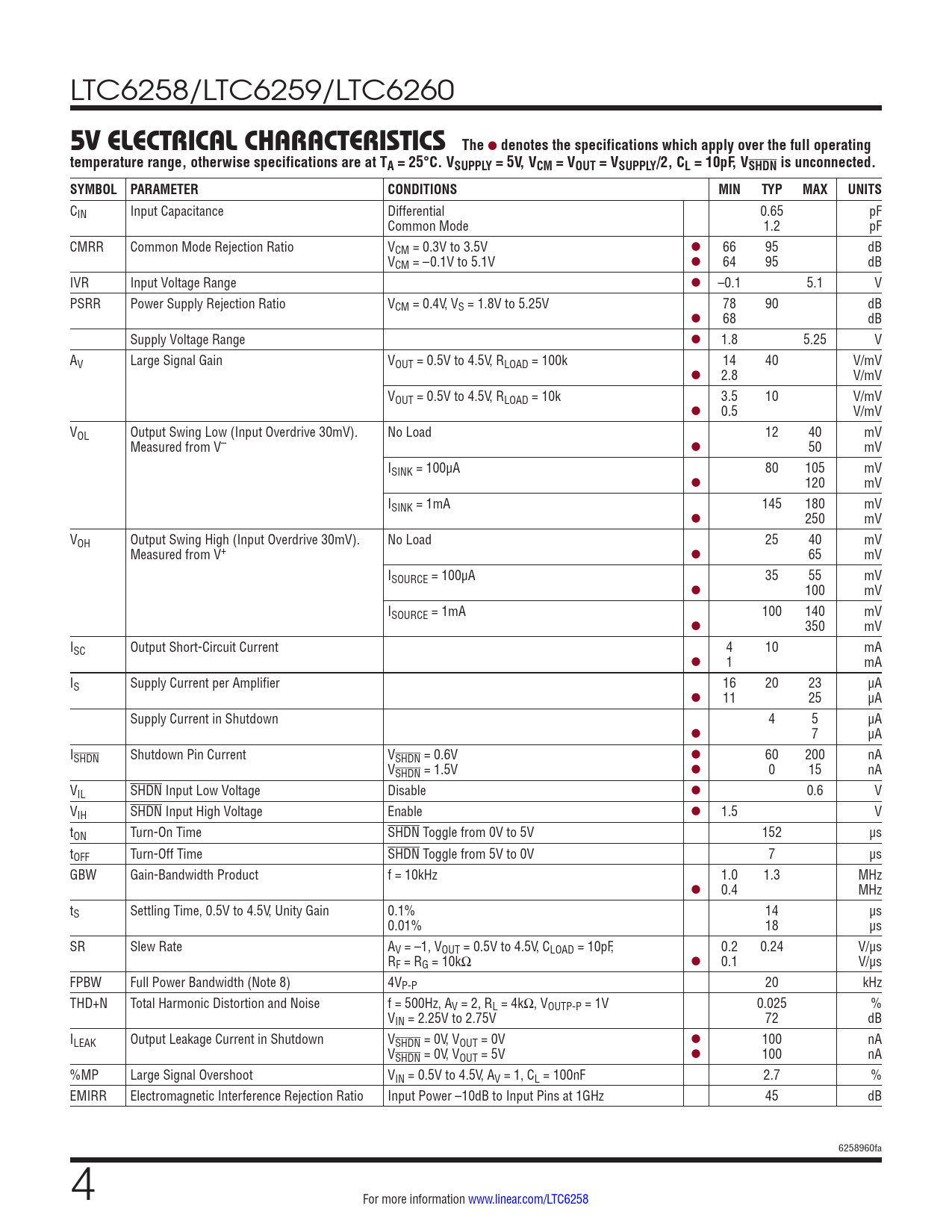

5V ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
- LTC6258HDC#PBF LTC6258HDC#TRMPBF LTC6258HDC#TRPBF LTC6258HS6#PBF LTC6258HS6#TRMPBF LTC6258HS6#TRPBF LTC6258IDC#PBF LTC6258IDC#TRMPBF LTC6258IDC#TRPBF LTC6258IS6#PBF LTC6258IS6#TRMPBF LTC6258IS6#TRPBF
- LTC6259HDC#PBF LTC6259HDC#TRMPBF LTC6259HDC#TRPBF LTC6259HMS#PBF LTC6259HMS#TRPBF LTC6259HMS8#PBF LTC6259HMS8#TRPBF LTC6259HTS8#PBF LTC6259HTS8#TRMPBF LTC6259HTS8#TRPBF LTC6259IDC#PBF LTC6259IDC#TRMPBF LTC6259IDC#TRPBF LTC6259IMS#PBF LTC6259IMS#TRPBF LTC6259IMS8#PBF LTC6259IMS8#TRPBF LTC6259ITS8#PBF LTC6259ITS8#TRMPBF LTC6259ITS8#TRPBF
Text Version of Document
LTC6258/LTC6259/LTC6260
5V ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VSUPPLY = 5V, VCM = VOUT = VSUPPLY/2, CL = 10pF, VSHDN is unconnected. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
CIN Input Capacitance Differential 0.65 pF Common Mode 1.2 pF CMRR Common Mode Rejection Ratio VCM = 0.3V to 3.5V l 66 95 dB VCM = –0.1V to 5.1V l 64 95 dB IVR Input Voltage Range l –0.1 5.1 V PSRR Power Supply Rejection Ratio VCM = 0.4V, VS = 1.8V to 5.25V 78 90 dB l 68 dB Supply Voltage Range l 1.8 5.25 V AV Large Signal Gain VOUT = 0.5V to 4.5V, RLOAD = 100k 14 40 V/mV l 2.8 V/mV VOUT = 0.5V to 4.5V, RLOAD = 10k 3.5 10 V/mV l 0.5 V/mV VOL Output Swing Low (Input Overdrive 30mV). No Load 12 40 mV Measured from V– l 50 mV ISINK = 100µA 80 105 mV l 120 mV ISINK = 1mA 145 180 mV l 250 mV VOH Output Swing High (Input Overdrive 30mV). No Load 25 40 mV Measured from V+ l 65 mV ISOURCE = 100µA 35 55 mV l 100 mV ISOURCE = 1mA 100 140 mV l 350 mV ISC Output Short-Circuit Current 4 10 mA l 1 mA IS Supply Current per Amplifier 16 20 23 µA l 11 25 µA Supply Current in Shutdown 4 5 µA l 7 µA ISHDN Shutdown Pin Current VSHDN = 0.6V l 60 200 nA VSHDN = 1.5V l 0 15 nA VIL SHDN Input Low Voltage Disable l 0.6 V VIH SHDN Input High Voltage Enable l 1.5 V tON Turn-On Time SHDN Toggle from 0V to 5V 152 µs tOFF Turn-Off Time SHDN Toggle from 5V to 0V 7 µs GBW Gain-Bandwidth Product f = 10kHz 1.0 1.3 MHz l 0.4 MHz tS Settling Time, 0.5V to 4.5V, Unity Gain 0.1% 14 µs 0.01% 18 µs SR Slew Rate AV = –1, VOUT = 0.5V to 4.5V, CLOAD = 10pF, 0.2 0.24 V/µs RF = RG = 10kΩ l 0.1 V/µs FPBW Full Power Bandwidth (Note 8) 4VP-P 20 kHz THD+N Total Harmonic Distortion and Noise f = 500Hz, AV = 2, RL = 4kΩ, VOUTP-P = 1V 0.025 % VIN = 2.25V to 2.75V 72 dB ILEAK Output Leakage Current in Shutdown VSHDN = 0V, VOUT = 0V l 100 nA VSHDN = 0V, VOUT = 5V l 100 nA %MP Large Signal Overshoot VIN = 0.5V to 4.5V, AV = 1, CL = 100nF 2.7 % EMIRR Electromagnetic Interference Rejection Ratio Input Power –10dB to Input Pins at 1GHz 45 dB 6258960fa 4 For more information www.linear.com/LTC6258 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information 5V Electrical Characteristics 1.8V Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Operation Applications Information Typical Application Related Parts
