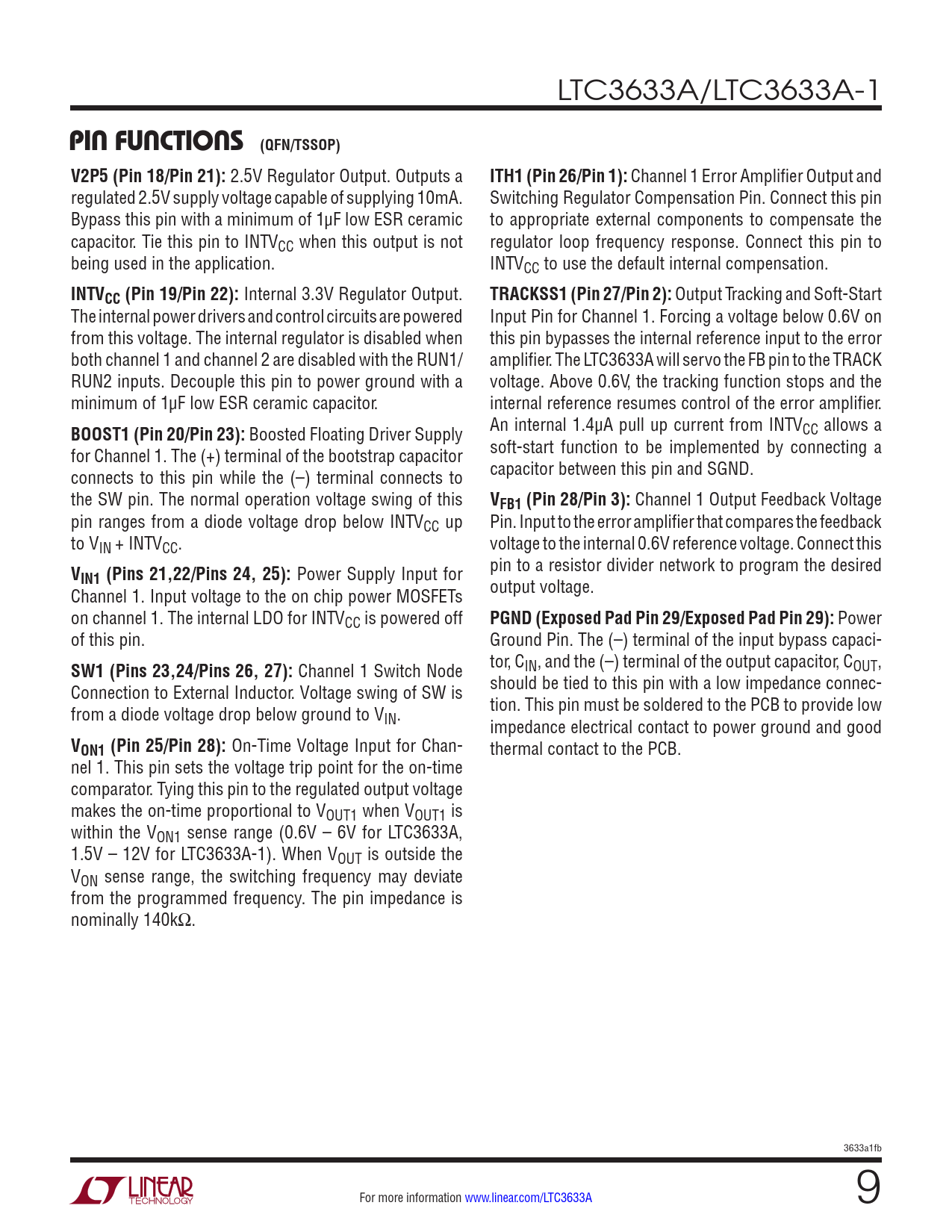

LTC3633A/LTC3633A-1
PIN FUNCTIONS (QFN/TSSOP) V2P5 (Pin 18/Pin 21):
2.5V Regulator Output. Outputs a
ITH1 (Pin 26/Pin 1):
Channel 1 Error Amplifier Output and regulated 2.5V supply voltage capable of supplying 10mA. Switching Regulator Compensation Pin. Connect this pin Bypass this pin with a minimum of 1µF low ESR ceramic to appropriate external components to compensate the capacitor. Tie this pin to INTVCC when this output is not regulator loop frequency response. Connect this pin to being used in the application. INTVCC to use the default internal compensation.
INTVCC (Pin 19/Pin 22):
Internal 3.3V Regulator Output.
TRACKSS1 (Pin 27/Pin 2):
Output Tracking and Soft-Start The internal power drivers and control circuits are powered Input Pin for Channel 1. Forcing a voltage below 0.6V on from this voltage. The internal regulator is disabled when this pin bypasses the internal reference input to the error both channel 1 and channel 2 are disabled with the RUN1/ amplifier. The LTC3633A will servo the FB pin to the TRACK RUN2 inputs. Decouple this pin to power ground with a voltage. Above 0.6V, the tracking function stops and the minimum of 1µF low ESR ceramic capacitor. internal reference resumes control of the error amplifier.
BOOST1 (Pin 20/Pin 23):
Boosted Floating Driver Supply An internal 1.4µA pull up current from INTVCC allows a for Channel 1. The (+) terminal of the bootstrap capacitor soft-start function to be implemented by connecting a connects to this pin while the (–) terminal connects to capacitor between this pin and SGND. the SW pin. The normal operation voltage swing of this
