Datasheet LTC3670 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | Monolithic 400mA Buck Regulator with Dual 150mA LDOs in 3mm × 2mm DFN |
| Pages / Page | 14 / 7 — BLOCK DIAGRAM |
| Revision | A |
| File Format / Size | PDF / 401 Kb |
| Document Language | English |

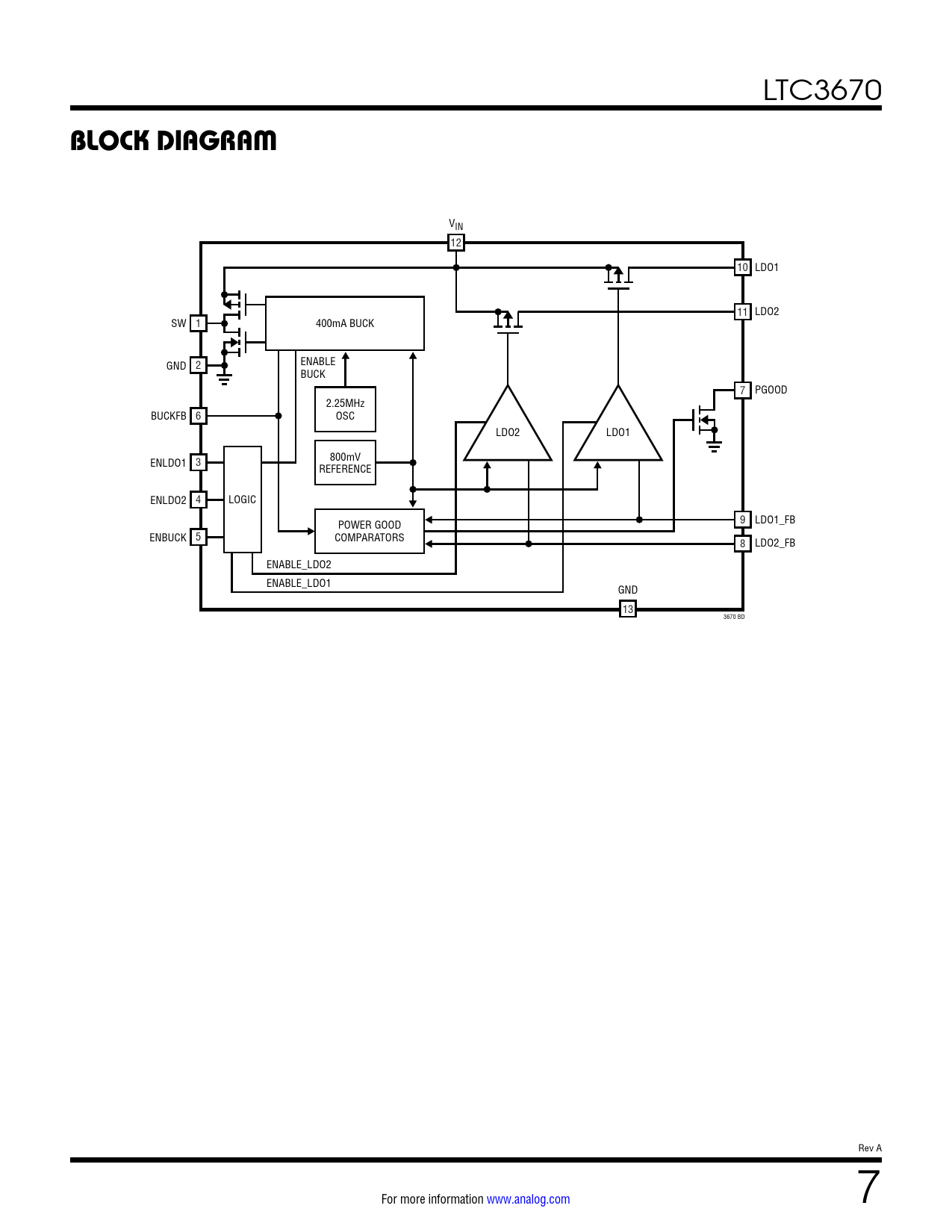

BLOCK DIAGRAM
Model Line for this Datasheet
Text Version of Document
LTC3670
BLOCK DIAGRAM
VIN 12 10 LDO1 11 LDO2 SW 1 400mA BUCK GND 2 ENABLE BUCK 7 PGOOD 2.25MHz BUCKFB 6 OSC LDO2 LDO1 ENLDO1 3 800mV REFERENCE ENLDO2 4 LOGIC 9 LDO1_FB POWER GOOD ENBUCK 5 COMPARATORS 8 LDO2_FB ENABLE_LDO2 ENABLE_LDO1 GND 13 3670 BD Rev A For more information www.analog.com 7 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Typical Application Related Parts
